NSN 4330-00-252-0592 AN62361, AN6236-1, MILF5504

Product Details | FLUID FILTER ELEMENT

4330-00-252-0592 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: AN62361, AN6236-1, MILF5504, MIL-F-5504, 28050E, 28050-E, 3031420, 30314-20, 4897, 4330-00-252-0592, 00-252-0592, 4330002520592, 002520592

Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
43	01 JAN 1961	00-252-0592	32624 ( FILTER ELEMENT, FLUID )

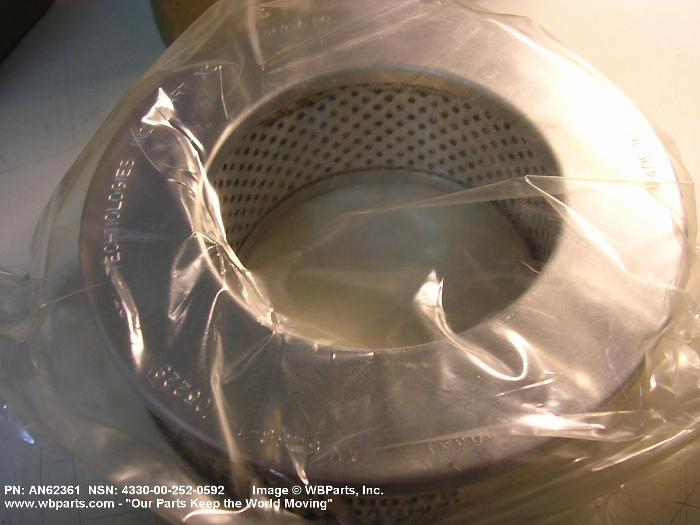

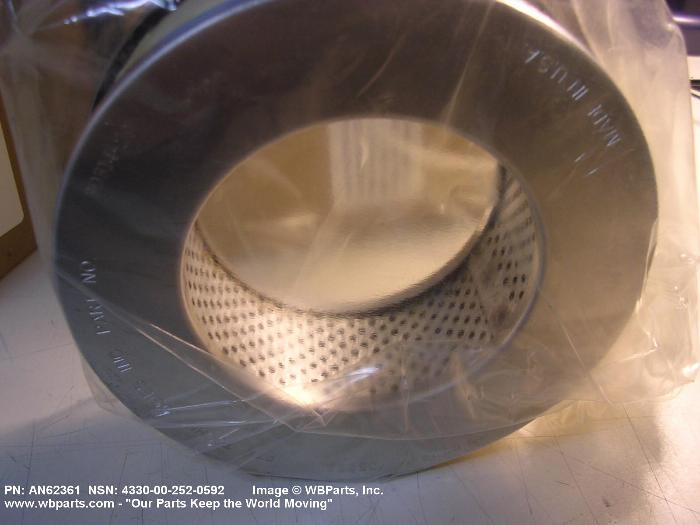

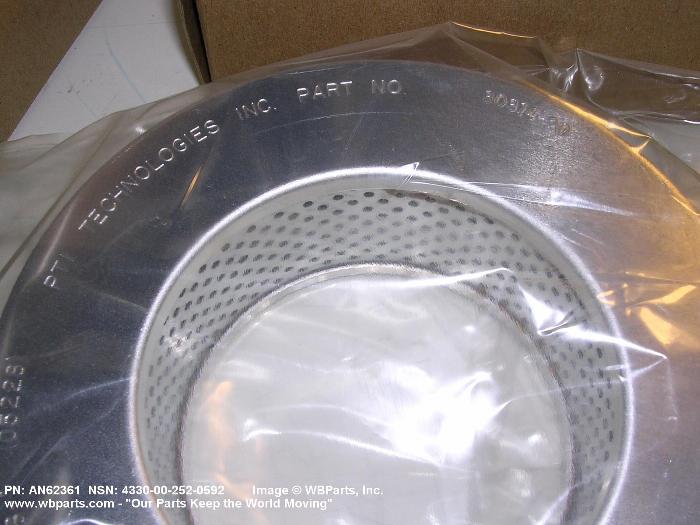

Drawings & Photos | NSN 4330-00-252-0592

Part Number	Request Date	QTY	Origin
4330-00-252-0592	2023-04-17	68	DIBBS
4330-00-252-0592	2023-04-06	68	DIBBS
4330-00-252-0592	2022-08-06	10	US
3031420	2022-06-16	30	US
4330-00-252-0592	2022-01-19	8	Austria
4330-00-252-0592	2020-01-13	3	United States
4897	2018-09-12	1	US
4330-00-252-0592	2018-03-08	95	DIBBS
4330-00-252-0592	2018-01-25	6	AR
4330-00-252-0592	2017-02-06	30	DIBBS
4330-00-252-0592	2016-07-25	151	DIBBS
3031420	2013-07-24	1	US
3031420	2013-07-10	35	Turkey
AN6236-1	2013-07-01	10	United States
30314-20	2013-01-28	35	CN
4330-00-252-0592	2012-12-31	35	CN
AN6236-1	2012-06-08	3	United States
AN6236-1	2012-05-11	3	United States
AN6236-1	2012-04-02	3	United States
AN6236-1	2012-03-15	15	United States
4330-00-252-0592	2012-02-02	80	DIBBS
4330-00-252-0592	2011-11-14	72	DIBBS
4330-00-252-0592	2010-11-10	60	DIBBS
4330-00-252-0592	2010-03-16	50	DIBBS
AN62361	2008-01-19	2	Netherlands

Cross Reference | NSN 4330-00-252-0592

Part Number	Cage Code	Manufacturer
28050-E	90005	PUROLATOR FACET, INC.
30314-20	05228	PTI TECHNOLOGIES INC.
4897	73370	HONEYWELL INTERNATIONAL INC DBA HONEYWELL DIV CONSUMER PRODUCTS
AN6236-1	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MIL-F-5504	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4330-00-252-0592

Compare

Related Products | NSN 4330-00-252-0592

4330-00-252-2697, 4330-00-252-8138, 4330-00-253-0921, 4330-00-253-7531, 4330-00-254-6087

Technical Data | NSN 4330-00-252-0592

Characteristic	Specifications
STYLE DESIGNATOR	A6 CYLINDRICAL W/OUT CONTAINER
BODY DIAMETER	5.965 INCHES MINIMUM AND 6.000 INCHES MAXIMUM
BODY INSIDE DIAMETER	3.490 INCHES MINIMUM AND 3.510 INCHES MAXIMUM
BODY OVERALL LENGTH	1.906 INCHES MINIMUM AND 1.969 INCHES MAXIMUM
MATERIAL	CELLULOSE FILTERING MEDIUM
FILTERING MEDIA DESIGN	RADIAL FINNED SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE	NONREUSABLE
FILTRATION RATING IN MICRONS	10.0 NOMINAL
FLOW DIRECTION	OUTSIDE IN
MEDIA FOR WHICH DESIGNED	ANY ACCEPTABLE
TEMP RATING	-65.0 DEG FAHRENHEIT MINIMUM AND 160.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE	NOT RATED
DIFFERENTIAL PRESSURE	NOT RATED
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN6236-1
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-5504

Restrictions/Controls & Freight Information | NSN 4330-00-252-0592

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	069100	FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	594	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4330-00-252-0592

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
