Product Details | CENTRIFUGAL PUMP UNIT

4320-01-454-0823 An assembled unit consisting of a commonly mounted centrifugal pump(s), prime mover(s), and the necessary components to provide for a complete operation.

Part Alternates: 1524283, 15242832, 1524283-2, 5983557, 59835572, 5983557-2, 8657, 8664, 4320-01-454-0823, 01-454-0823, 4320014540823, 014540823

Pumps and Compressors | Power and Hand Pumps

Supply Group (FSG) NSN Assign. NIIN
43 19 MAR 1998 01-454-0823

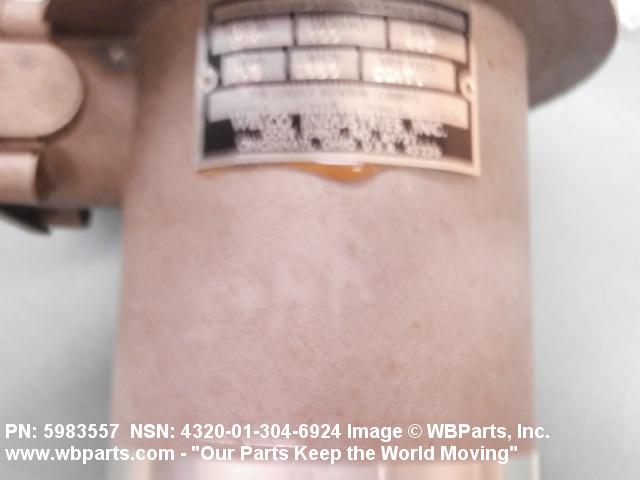

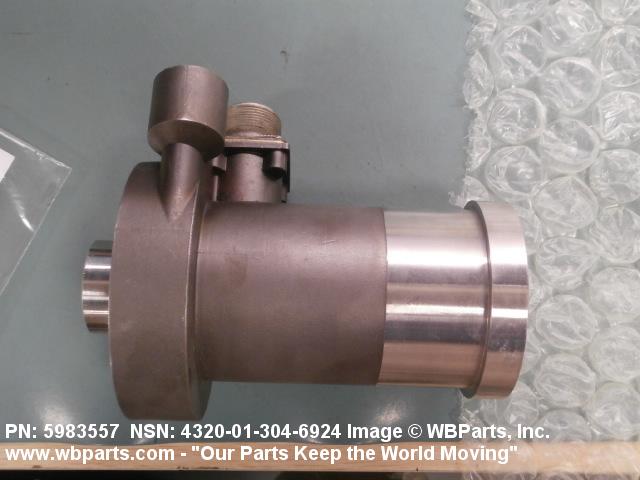

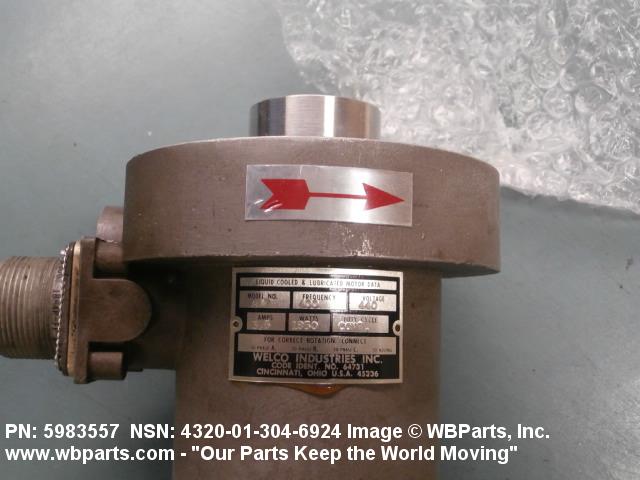

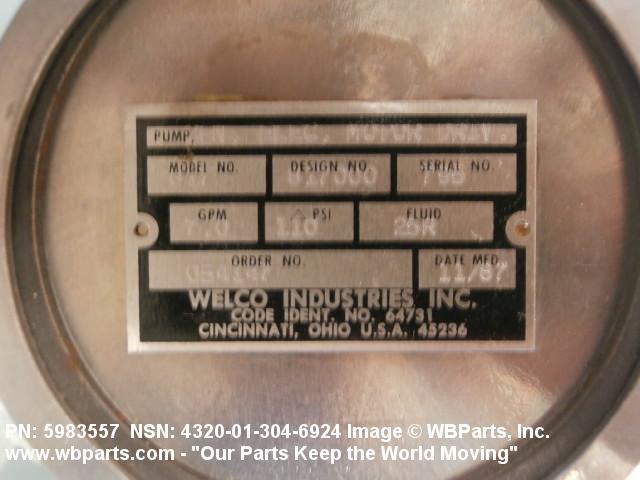

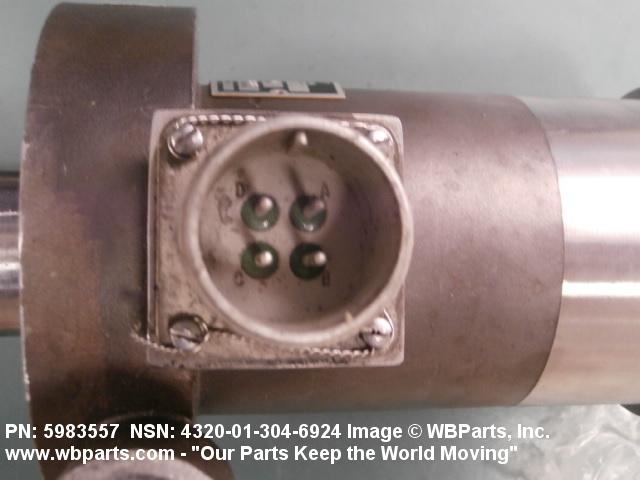

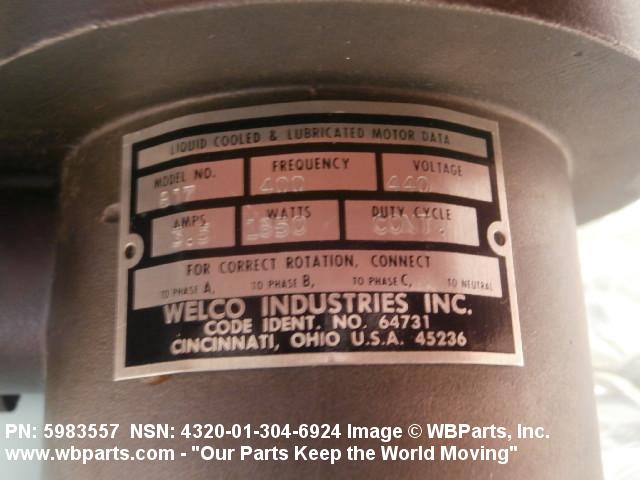

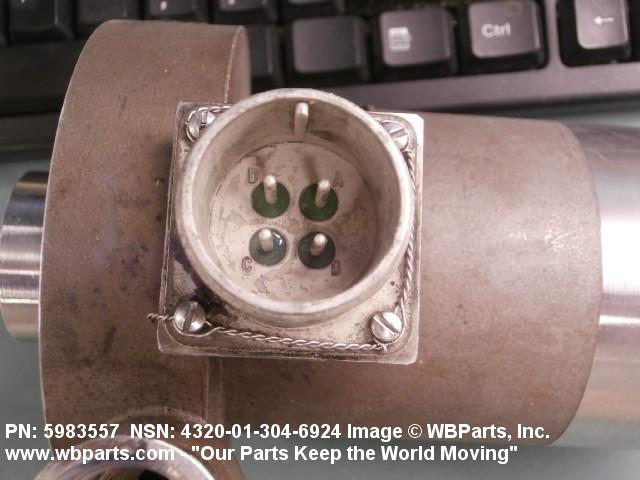

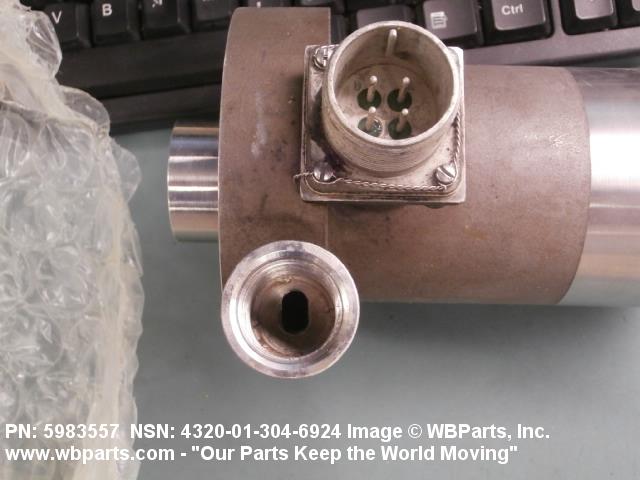

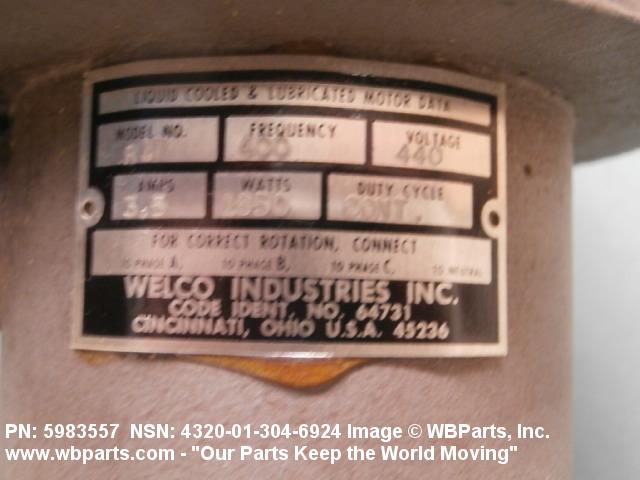

Drawings & Photos | NSN 4320-01-454-0823


Demand History | NSN 4320-01-454-0823

Part Number Request Date QTY Origin
4320-01-454-0823 2009-05-142 10 DIBBS
4320-01-454-0823 2009-05-127 10 DIBBS

Cross Reference | NSN 4320-01-454-0823

Part Number Cage Code Manufacturer
1524283 56232 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
1524283-2 56232 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
5983557 53711 NAVAL SEA SYSTEMS COMMAND
5983557-2 53711 NAVAL SEA SYSTEMS COMMAND
8657 00268 CEF INDUSTRIES, LLC DBA CEF INDUSTRIES
8664 00268 CEF INDUSTRIES, LLC DBA CEF INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4320-01-454-0823

Technical Data | NSN 4320-01-454-0823

Characteristic Specifications
MAXIMUM DISCHARGE FLOW RATE 7.0 GALLONS PER MINUTE
DISCHARGE PRESSURE 120.0 POUNDS PER SQUARE INCH GAGE
MEDIA FOR WHICH DESIGNED LIQUID
PUMPING ELEMENT OPERATING POSITION HORIZONTAL
CENTRIFUGAL PUMP DESIGN MIXED FLOW
PUMP QUANTITY 1
INTAKE CONNECTION QUANTITY 1
DISCHARGE CONNECTION QUANTITY 1
PRIME MOVER TYPE ELECTRIC MOTOR
PRIME MOVER COOLING MEDIUM AIR
PRIME MOVER QUANTITY 1
PRIME MOVER POWER RATING 1850.0 WATTS
CURRENT TYPE AC
VOLTAGE IN VOLTS 440.0
FREQUENCY IN HERTZ 400.0
PHASE THREE
CURRENT RATING IN AMPS 2.4
INCLOSURE TYPE FULLY INCLOSED
ENVIRONMENTAL PROTECTION SPLASH PROOF
COOLING METHOD AIR TO AIR COOLED
SPECIAL FEATURES FLUID MEDIA ARE COOLANOL 25R AND POLYALPHAOLEPHIN
III END ITEM IDENTIFICATION NAVY WEAPONS CODE AX, FIRE CONTROL SYSTEM, MK92 (FCS)
(NON-CORE DATA) SUBMERSIBILITY NONSUBMERSIBLE

Restrictions/Controls & Freight Information | NSN 4320-01-454-0823

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 128000 PUMPS PWR NOI/WORKING HEADS/PARTS
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 594 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4320-01-454-0823

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
