NSN 4320-01-367-0755 52904017, 5290-4017, 01-367-0755
Product Details | SPRING LOADED SHAFT SEAL ASSEMBLY
4320-01-367-0755 A combination of items used in sealing various rotary shaft equipment. It may include items such as bellows, disk, drive ring, flexible diaphragm, mating ring, o-ring, retainer, seat, sleeve, washer and the like. Excludes SEAL, PLAIN ENCASED.
Part Alternates: 52904017, 5290-4017, 4320-01-367-0755, 01-367-0755, 4320013670755, 013670755
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 06 NOV 1992 | 01-367-0755 | 32556 ( SEAL ASSEMBLY, SHAFT, SPRING LOADED ) |

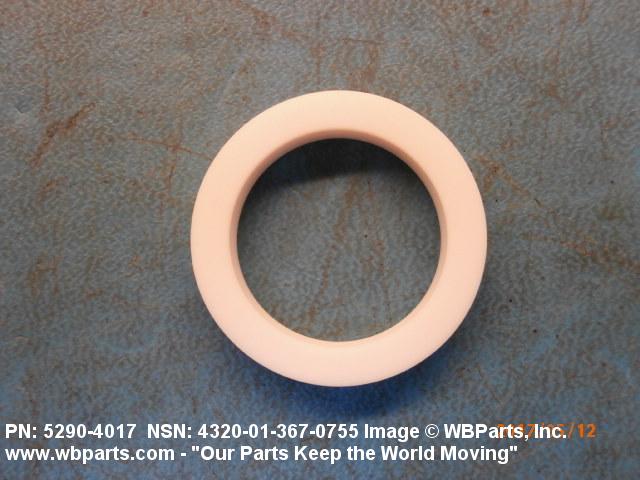

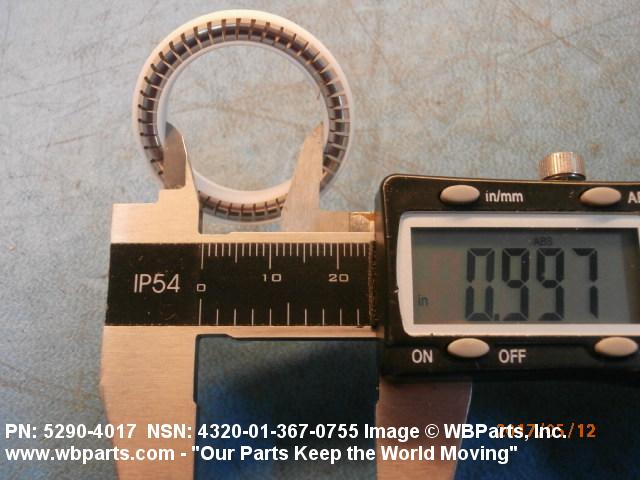

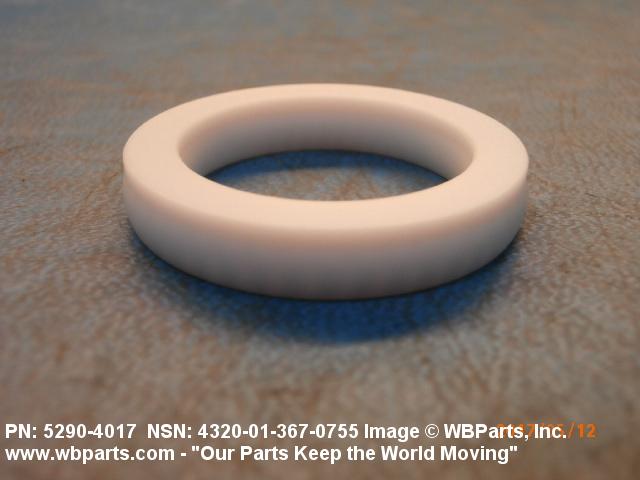

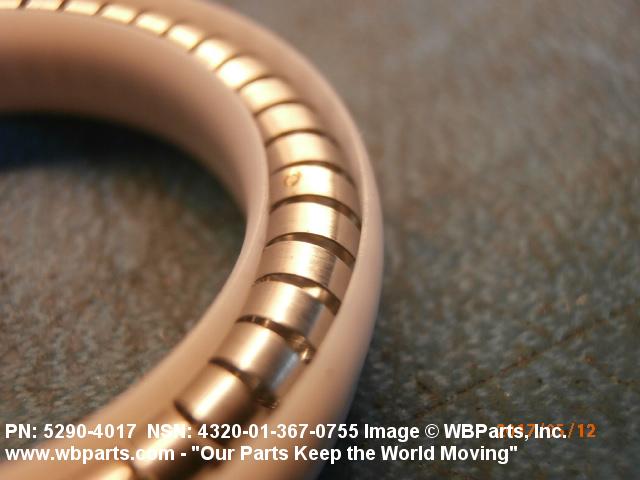

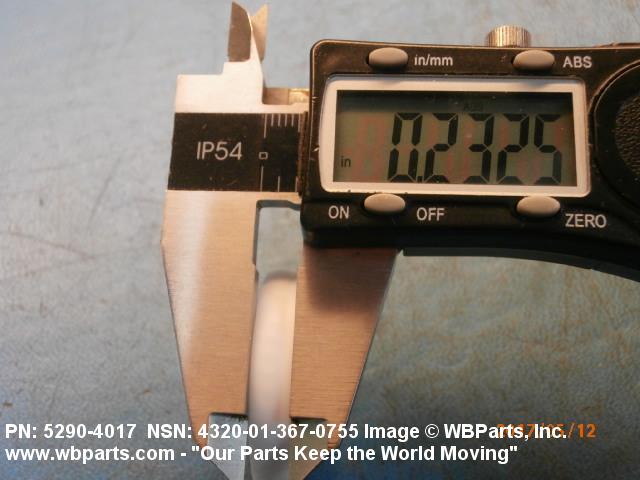

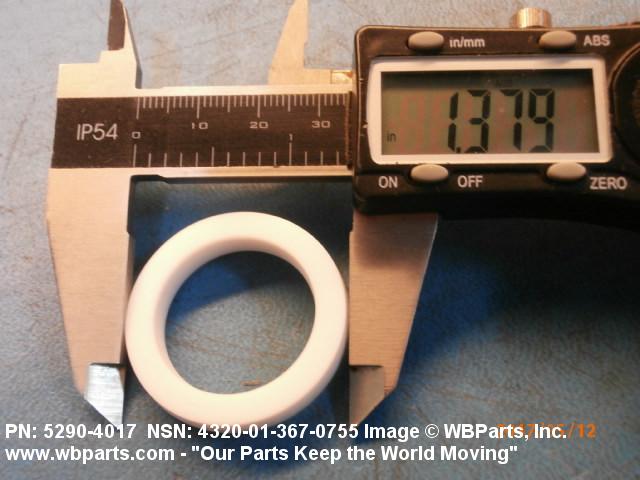

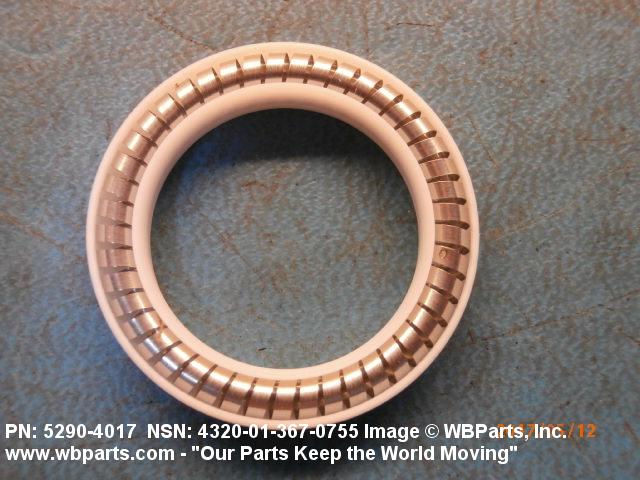

Drawings & Photos | NSN 4320-01-367-0755
Demand History | NSN 4320-01-367-0755
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5290-4017 | 2023-03-71 | 8 | DIBBS |
| 5290-4017 | 2020-10-303 | 14 | DIBBS |
| 5290-4017 | 2020-10-294 | 7 | DIBBS |
| 4320-01-367-0755 | 2017-03-88 | 10 | France |
| 4320-01-367-0755 | 2016-11-320 | 8 | DIBBS |
| 4320-01-367-0755 | 2016-11-312 | 5 | DIBBS |
| 4320-01-367-0755 | 2016-10-297 | 5 | DIBBS |
| 4320-01-367-0755 | 2016-09-251 | 5 | DIBBS |
| 4320-01-367-0755 | 2016-08-244 | 5 | DIBBS |
| 4320-01-367-0755 | 2016-06-154 | 5 | DIBBS |
Cross Reference | NSN 4320-01-367-0755
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5290-4017 | 94592 | FLUID CONDITIONING PRODUCTS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-01-367-0755
Related Products | NSN 4320-01-367-0755
Technical Data | NSN 4320-01-367-0755
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL,STAINLESS; 0.998 IN. SHAFT DIA. |
| MANUFACTURERS CODE | 94592 |
| DESIGN CONTROL REFERENCE | 5290-4017 |
Restrictions/Controls & Freight Information | NSN 4320-01-367-0755
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 129920 | SHAFTS/SHAFTING,FLEX NOI STL |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-01-367-0755
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | EY | 4R/5R Cog items managed by BRASO |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
