NSN 4320-01-278-8683 E18076, E-18076, C227
Product Details | WEARING RING
4320-01-278-8683 A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves.20229350055Engine System Cooling Components, Aircraft Prime Moving43200020Power and Hand Pumps
Part Alternates: E18076, E-18076, C227, 11221, 4320-01-278-8683, 01-278-8683, 4320012788683, 012788683
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 11 MAY 1988 | 01-278-8683 | 22534 ( RING, WEARING ) |
Drawings & Photos | NSN 4320-01-278-8683
Demand History | NSN 4320-01-278-8683
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-01-278-8683 | 2014-04-107 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-01-278-8683
Technical Data | NSN 4320-01-278-8683
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

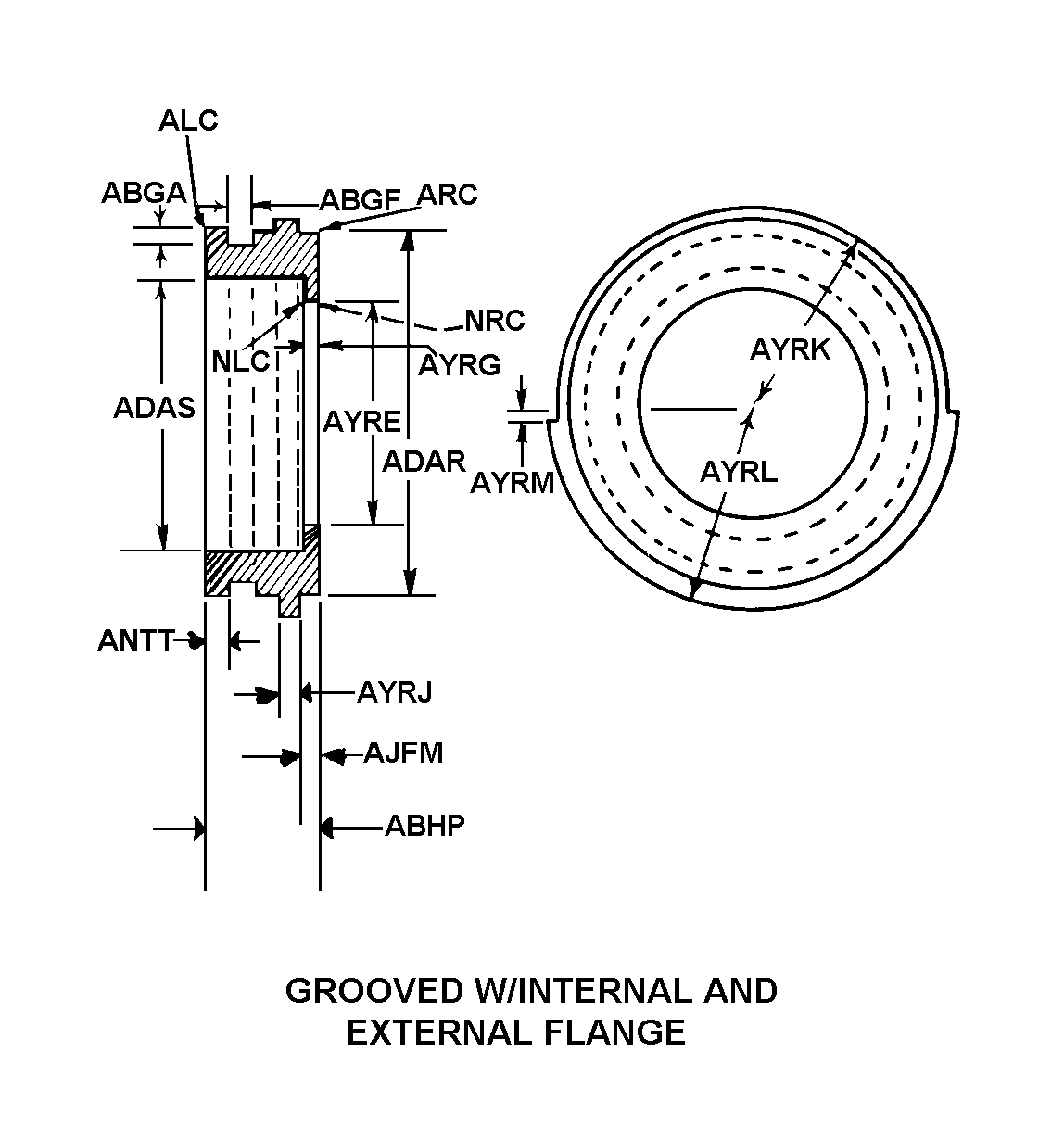

| BODY STYLE | 15 GROOVED W/INTERNAL AND EXTERNAL FLANGE |
| GROOVE DEPTH | 0.031 INCHES NOMINAL |
| GROOVE WIDTH | 0.062 INCHES NOMINAL |
| OVERALL LENGTH | 1.188 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 7.685 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 7.000 INCHES NOMINAL |
| END TO FLANGE DISTANCE | 0.250 INCHES NOMINAL |
| DISTANCE FROM END TO GROOVE CENTER | 0.375 INCHES NOMINAL |
| INTERNAL FLANGE INSIDE DIAMETER | 3.500 INCHES NOMINAL |
| INTERNAL FLANGE WIDTH | 0.250 INCHES NOMINAL |
| CENTER FLANGE THICKNESS | 0.750 INCHES NOMINAL |
| SMALLEST EXTERNAL ANCHOR FLANGE RADIUS | 3.750 INCHES NOMINAL |
| LARGEST EXTERNAL ANCHOR FLANGE RADIUS | 3.969 INCHES NOMINAL |
| DISTANCE BELOW CENTERLINE | 0.062 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SURFACE FINISH | 125.0 MICROINCHES INSIDE |
| SPECIAL FEATURES | 2 EQUAL GROOVES;7.969 IN. FLANGE DIA OPPOSITE LOCKING END |
