NSN 4320-01-160-7959 10500552, 937451, 01-160-7959
Product Details | HYDRAULIC MOTOR
4320-01-160-7959 A mechanical device designed to convert the energy of fluid pressure to rotary motion.20316500058Aircraft Hydraulic, Vacuum, and De-icing System Components25400035Vehicular Furniture and Accessories43200020Power and Hand Pumps
Part Alternates: 10500552, 937451, 4320-01-160-7959, 01-160-7959, 4320011607959, 011607959
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 27 AUG 1983 | 01-160-7959 | 06128 ( MOTOR, HYDRAULIC ) |

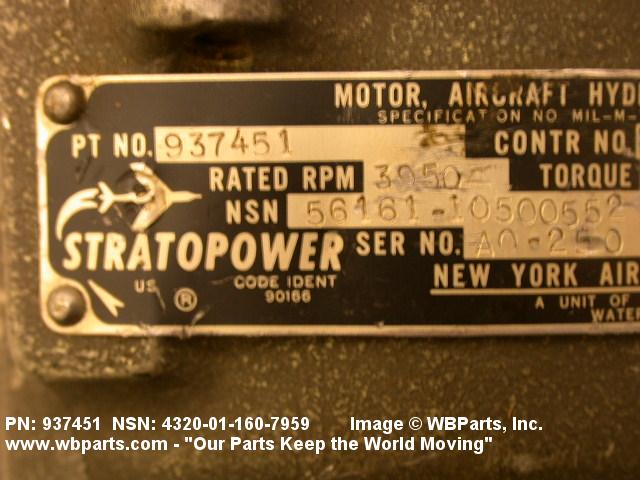

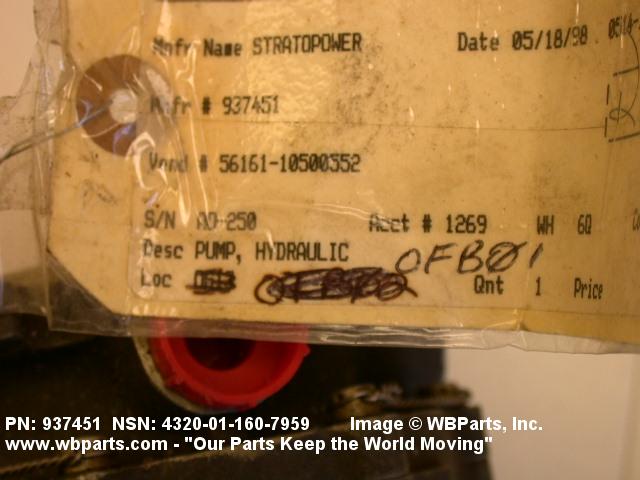

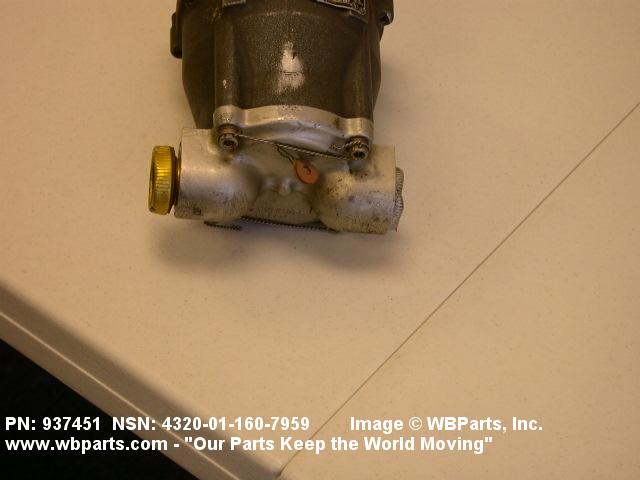

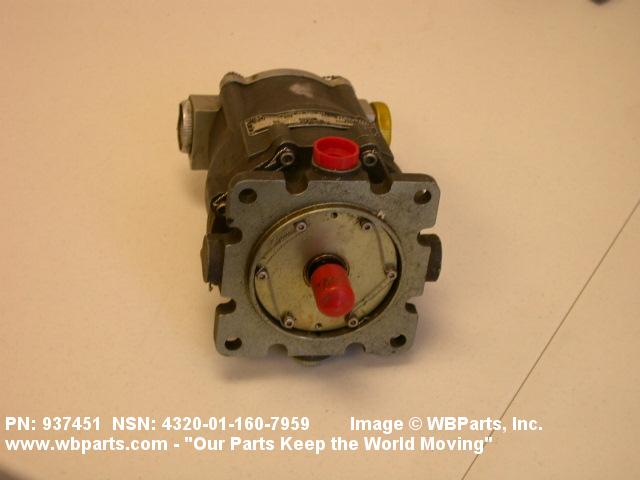

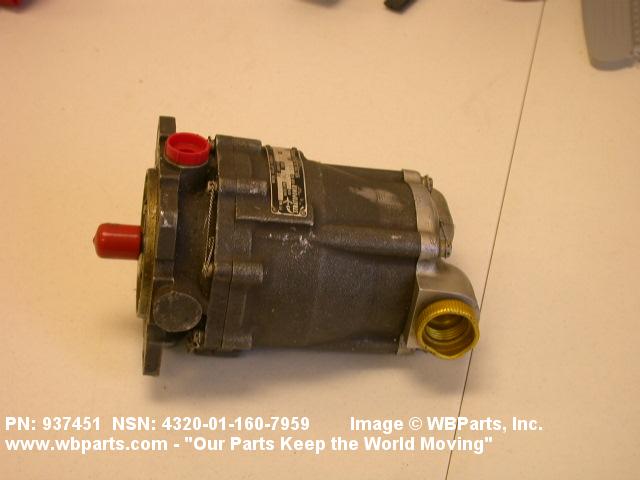

Drawings & Photos | NSN 4320-01-160-7959
Demand History | NSN 4320-01-160-7959
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-01-160-7959 | 2024-05-123 | 1 | United States |
| 4320-01-160-7959 | 2020-08-227 | 1 | United States |
| 4320-01-160-7959 | 2020-05-147 | 1 | MANUAL |
| 4320-01-160-7959 | 2011-02-56 | 1 | United States |
| 4320-01-160-7959 | 2010-10-279 | 1 | US |
| 4320-01-160-7959 | 2007-06-177 | 1 | United States |
| 4320-01-160-7959 | 2006-02-47 | 15 | US |
| 4320-01-160-7959 | 2006-02-34 | 7 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-01-160-7959
Related Products | NSN 4320-01-160-7959
Technical Data | NSN 4320-01-160-7959
| Characteristic | Specifications |
|---|---|
| DISPLACEMENT TYPE | CONSTANT |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 3950.0 |
| CONSTANT DISPLACEMENT PER REVOLUTION | 1.000 CUBIC INCHES |
| CONNECTION TYPE | DRAIN INLET |
| CONNECTION QUANTITY | 2 AND 2 |
| CONNECTION GOVERNMENT SPEC/STD | MS 33649-4;MS 33649-6;MS 33649-12 |
| CONNECTION DESIGN | THREADED |
| THREAD SIZE | 0.437-20 AND 0.562-18 AND 1.062-12 |
| SCREW THREAD SERIES DESIGNATOR | UNF AND UN |
| THREAD LOCATION | INTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| MOUNTING TYPE | PAD |
Restrictions/Controls & Freight Information | NSN 4320-01-160-7959
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062580 | MOTORS USED |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-01-160-7959
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 2 | Marine Corps Appropriation Stores Account Secondary Items. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 3 | Engineer Materiel19; 20; 22; 24; 30; 32; 34 except 3470; 36; 37; 38; 41; 42 except 4210; 43; 45; 46; 47; 48; 4930; 54 except 5445; 56; 62; 66 except 6625, 6650, 6660, 6665; 67; 68 |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | MPB | Commanding General Marine Corps Logistics Command 566-2, Bldg. 3700 Albany, GA 31704-5000 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | Reparable item. When beyond lower level repair capability, return to depot. Condemnation and disposal not authorized below depot level. |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
