NSN 4320-01-154-5732 CJ67C0259, 208702, 01-154-5732
Product Details | JACK HYDRAULIC 1ST STAGE RAM
4320-01-154-5732
Part Alternates: CJ67C0259, 208702, 4320-01-154-5732, 01-154-5732, 4320011545732, 011545732
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 26 MAY 1983 | 01-154-5732 | 77777 ( ) |

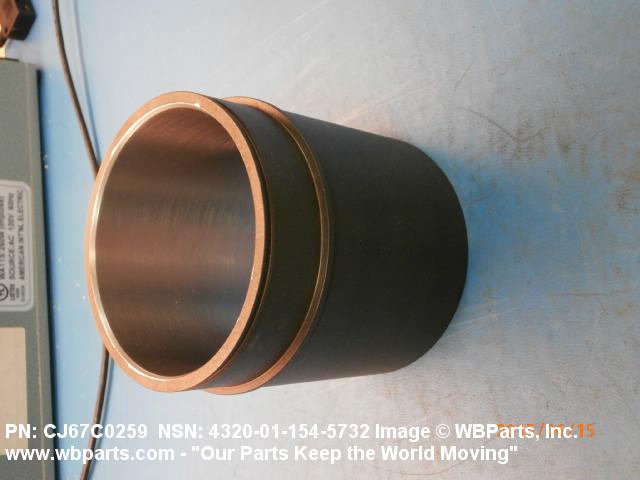

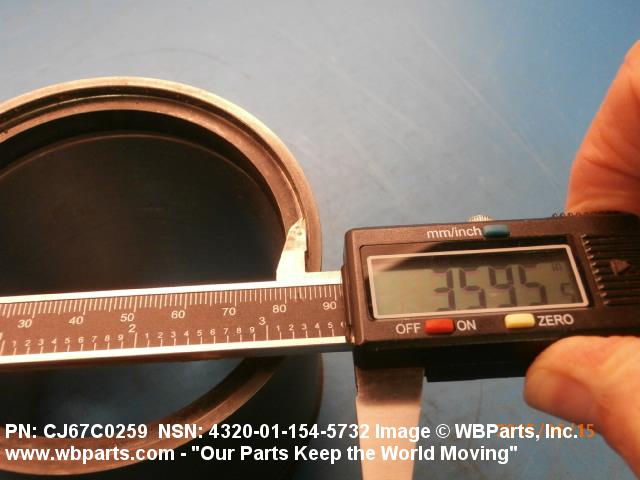

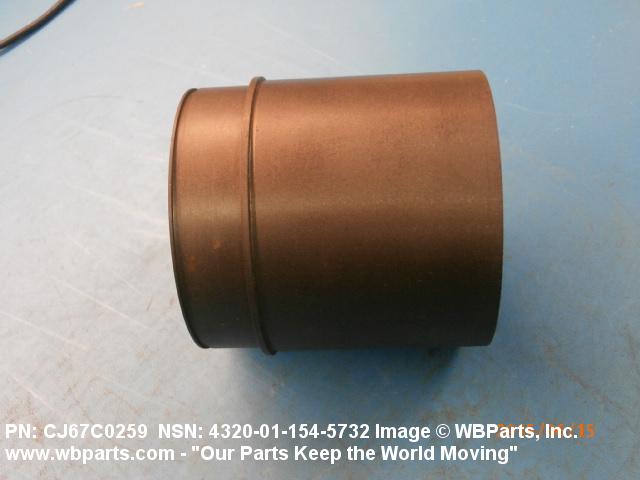

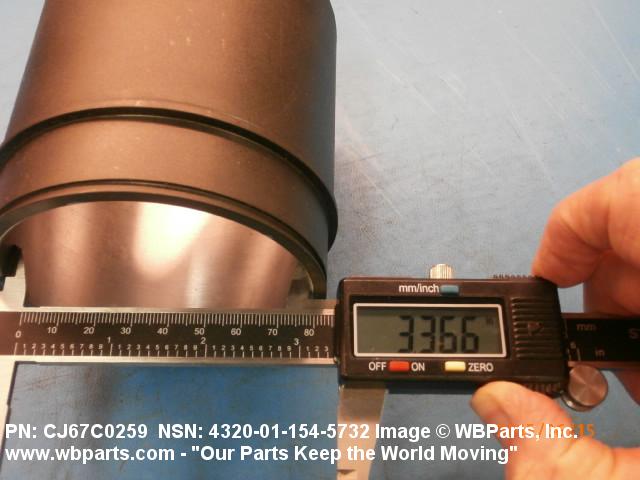

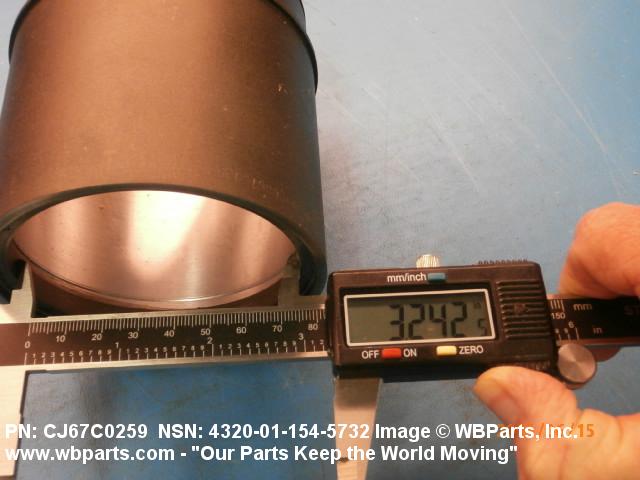

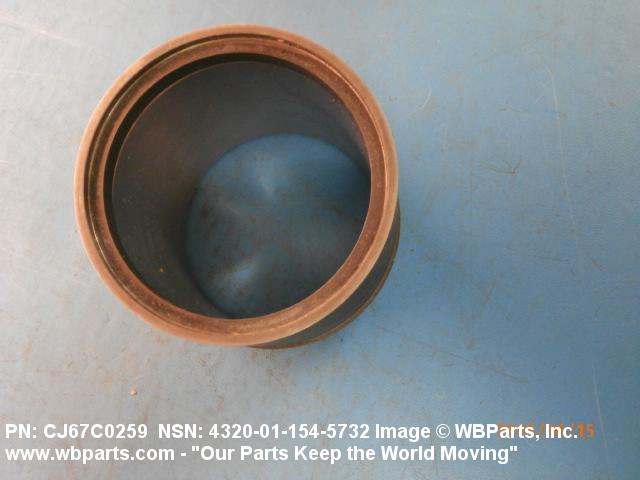

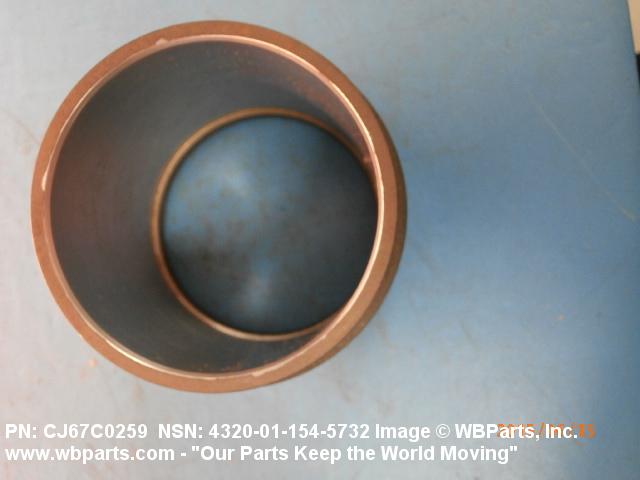

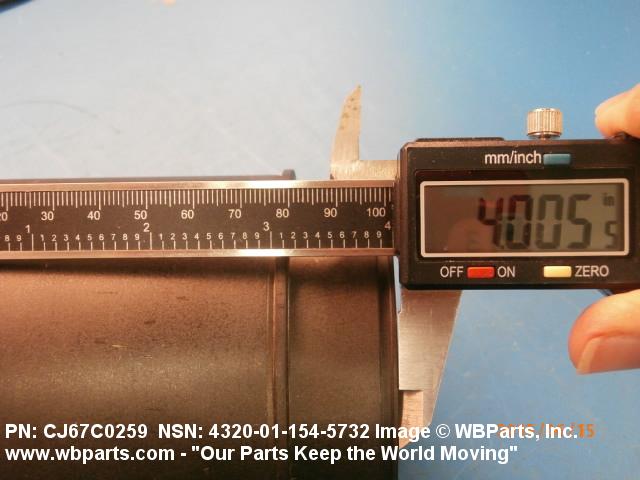

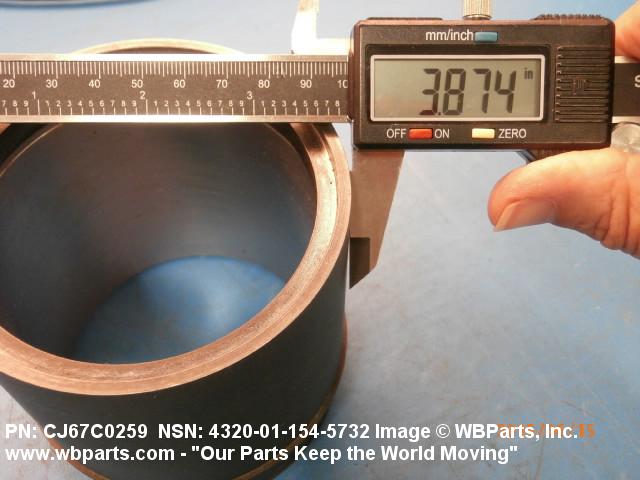

Drawings & Photos | NSN 4320-01-154-5732
Demand History | NSN 4320-01-154-5732
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-01-154-5732 | 2023-12-359 | 1 | DIBBS |
| 4320-01-154-5732 | 2022-08-213 | 5 | DIBBS |
| 4320-01-154-5732 | 2020-11-327 | 1 | Indonesia |
| 4320-01-154-5732 | 2019-12-346 | 1 | DIBBS |
| 4320-01-154-5732 | 2019-11-317 | 2 | DIBBS |
| 4320-01-154-5732 | 2016-03-74 | 1 | United States |
| 4320-01-154-5732 | 2016-03-62 | 5 | DIBBS |
| 4320-01-154-5732 | 2015-05-132 | 1 | United States |
| 4320-01-154-5732 | 2015-05-132 | 1 | United States |
| 4320-01-154-5732 | 2014-08-223 | 1 | DIBBS |
| 4320-01-154-5732 | 2014-08-213 | 7 | DIBBS |
| 4320-01-154-5732 | 2014-07-210 | 1 | DIBBS |
| 4320-01-154-5732 | 2014-07-202 | 7 | DIBBS |
| 4320-01-154-5732 | 2013-05-149 | 1 | DIBBS |
| 4320-01-154-5732 | 2007-02-32 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-01-154-5732
Related Products | NSN 4320-01-154-5732
Technical Data | NSN 4320-01-154-5732
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | AXLE 15 TON; TUBING STEEL SPEC QQ-T-00825 SEAMLESS,CD,ANNEALED 4130-4145 OPT 4130-4145; QUENCH AND TEMPER TO 170,000-180,000 PSI TENSILE PER MIL-H-6875; SURFACE TEXTURE 125 MICRONS; CHROM PLATE QQ-C-320,CL2; PHOSPATE COAT TY M CL 2 MIL-P-16232; 4.000 IN. LG; 1ST DIA 3.249-3.251 IN DIA; 2ND DIA 3.625 IN.; 3RD DIA 3.873.3.875 IN. DIA ONE END; OPPOSITE END 1ST DIA 3.375-3.376 IN. DIA; 2ND DIA 3.755-3.756 IN. DIA; 3RD DIA 3.982-3.986 IN. DIA |
| MANUFACTURERS CODE | 00994 |
| DESIGN CONTROL REFERENCE | CJ67C0259 |
Restrictions/Controls & Freight Information | NSN 4320-01-154-5732
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4320-01-154-5732
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
