NSN 4320-01-050-9214 PL999R0501, 654B0312D040A, 999R0501
Product Details | WEARING RING
4320-01-050-9214 A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves.20229350055Engine System Cooling Components, Aircraft Prime Moving43200020Power and Hand Pumps
Part Alternates: PL999R0501, 654B0312D040A, 999R0501, 4320-01-050-9214, 01-050-9214, 4320010509214, 010509214
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 16 NOV 1977 | 01-050-9214 | 22534 ( RING, WEARING ) |
Drawings & Photos | NSN 4320-01-050-9214
Demand History | NSN 4320-01-050-9214
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 654B0312D040A | 2024-05-141 | 61 | DIBBS |
| 654B0312D040A | 2024-05-128 | 61 | DIBBS |
| 654B0312D040A | 2023-09-270 | 50 | DIBBS |
| 654B0312D040A | 2023-09-250 | 50 | DIBBS |
| 654B0312D040A | 2023-08-215 | 19 | DIBBS |
| 654B0312D040A | 2023-03-90 | 21 | DIBBS |
| 654B0312D040A | 2023-03-75 | 21 | DIBBS |
| 654B0312D040A | 2023-02-37 | 45 | DIBBS |
| 654B0312D040A | 2022-07-209 | 15 | DIBBS |
| 654B0312D040A | 2022-04-118 | 11 | DIBBS |
| 654B0312D040A | 2021-06-161 | 9 | DIBBS |
| 654B0312D040A | 2021-01-28 | 17 | DIBBS |
| 654B0312D040A | 2019-11-321 | 32 | DIBBS |
| 654B0312D040A | 2019-02-52 | 31 | DIBBS |
| 4320-01-050-9214 | 2018-02-46 | 26 | DIBBS |
| 4320-01-050-9214 | 2017-09-249 | 20 | DIBBS |
| 4320-01-050-9214 | 2017-02-43 | 28 | DIBBS |
| 4320-01-050-9214 | 2016-06-168 | 25 | DIBBS |
| 4320-01-050-9214 | 2015-05-141 | 36 | DIBBS |
| 4320-01-050-9214 | 2015-01-08 | 15 | DIBBS |
| 4320-01-050-9214 | 2014-10-300 | 14 | DIBBS |
| 4320-01-050-9214 | 2014-10-287 | 14 | DIBBS |
| 4320-01-050-9214 | 2014-08-218 | 18 | DIBBS |
| 4320-01-050-9214 | 2014-01-26 | 14 | DIBBS |
| 4320-01-050-9214 | 2013-10-290 | 11 | DIBBS |
| 4320-01-050-9214 | 2013-10-275 | 11 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-01-050-9214
Related Products | NSN 4320-01-050-9214
Technical Data | NSN 4320-01-050-9214
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 |

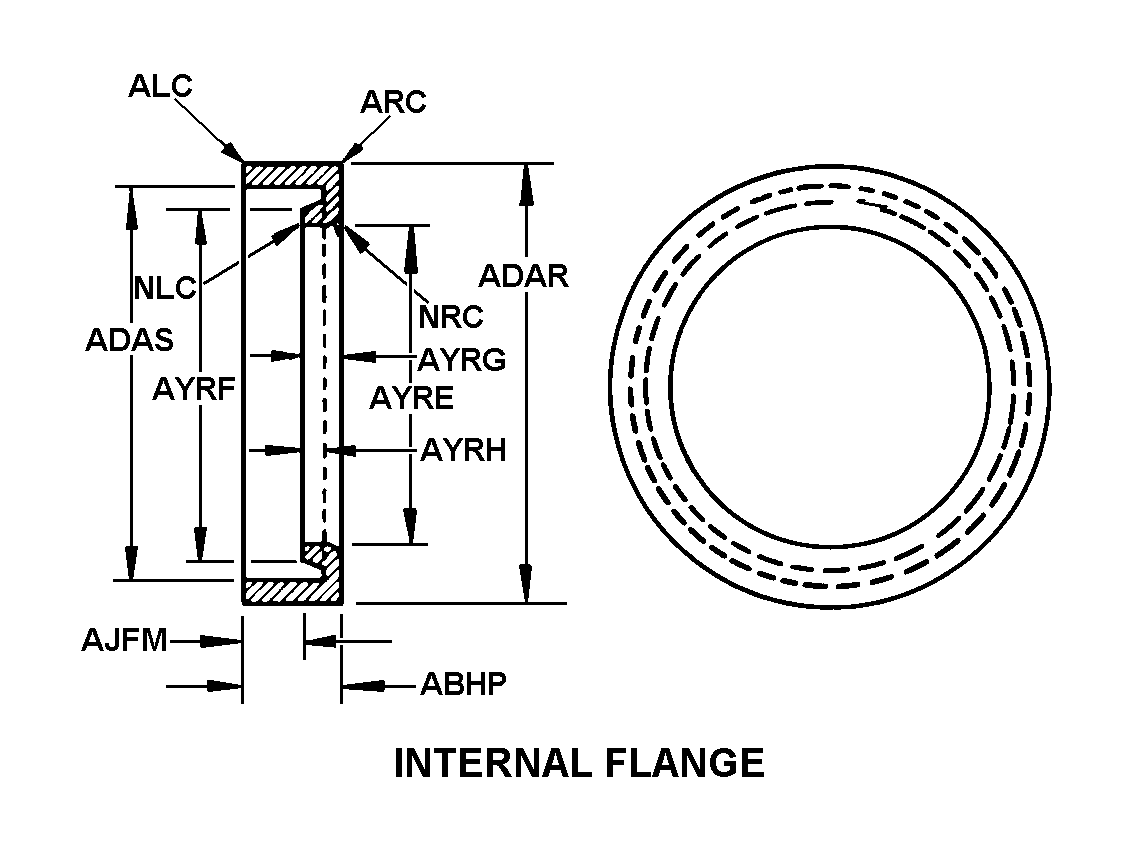

| BODY STYLE | 21 INTERNAL FLANGE |
| OVERALL LENGTH | 0.7812 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.878 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 4.3600 INCHES NOMINAL |
| END TO FLANGE DISTANCE | 0.3125 INCHES NOMINAL |
| INTERNAL FLANGE INSIDE DIAMETER | 3.625 INCHES NOMINAL |
| INTERNAL FLANGE OUTSIDE DIAMETER | 3.9950 INCHES NOMINAL |
| INTERNAL FLANGE WIDTH | 0.4687 INCHES NOMINAL |
| INTERNAL FLANGE LIP WIDTH | 0.2812 INCHES NOMINAL |
| CORNER SHAPE | SQUARE INSIDE LEFT CORNER CHAMFERED INSIDE RIGHT CORNER SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER |
| CHAMFER ANGLE | 45.0 DEGREES NOMINAL INSIDE RIGHT CORNER |
| CHAMFER LENGTH | 0.753 INCHES NOMINAL INSIDE RIGHT CORNER |
| SPECIAL FEATURES | 3 THREADED HOLES,.1495 IN.DIA,0.4375IN.D; 10-24 UNC-2B TAPS,0.375IN.D EQUALLY SPACED,AT ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 4320-01-050-9214
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-01-050-9214
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
