Product Details | WEARING RING
4320-01-049-5130 A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves.20229350055Engine System Cooling Components, Aircraft Prime Moving43200020Power and Hand Pumps
Part Alternates: PL999D0535PC8, C286, 4320-01-049-5130, 01-049-5130, 4320010495130, 010495130
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 20 OCT 1977 | 01-049-5130 | 22534 ( RING, WEARING ) |
Drawings & Photos | NSN 4320-01-049-5130
Demand History | NSN 4320-01-049-5130
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C286 | 2015-01-21 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-01-049-5130
Technical Data | NSN 4320-01-049-5130
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B584 ALLOY 922 ASSN STD ALL MATERIAL RESPONSES |

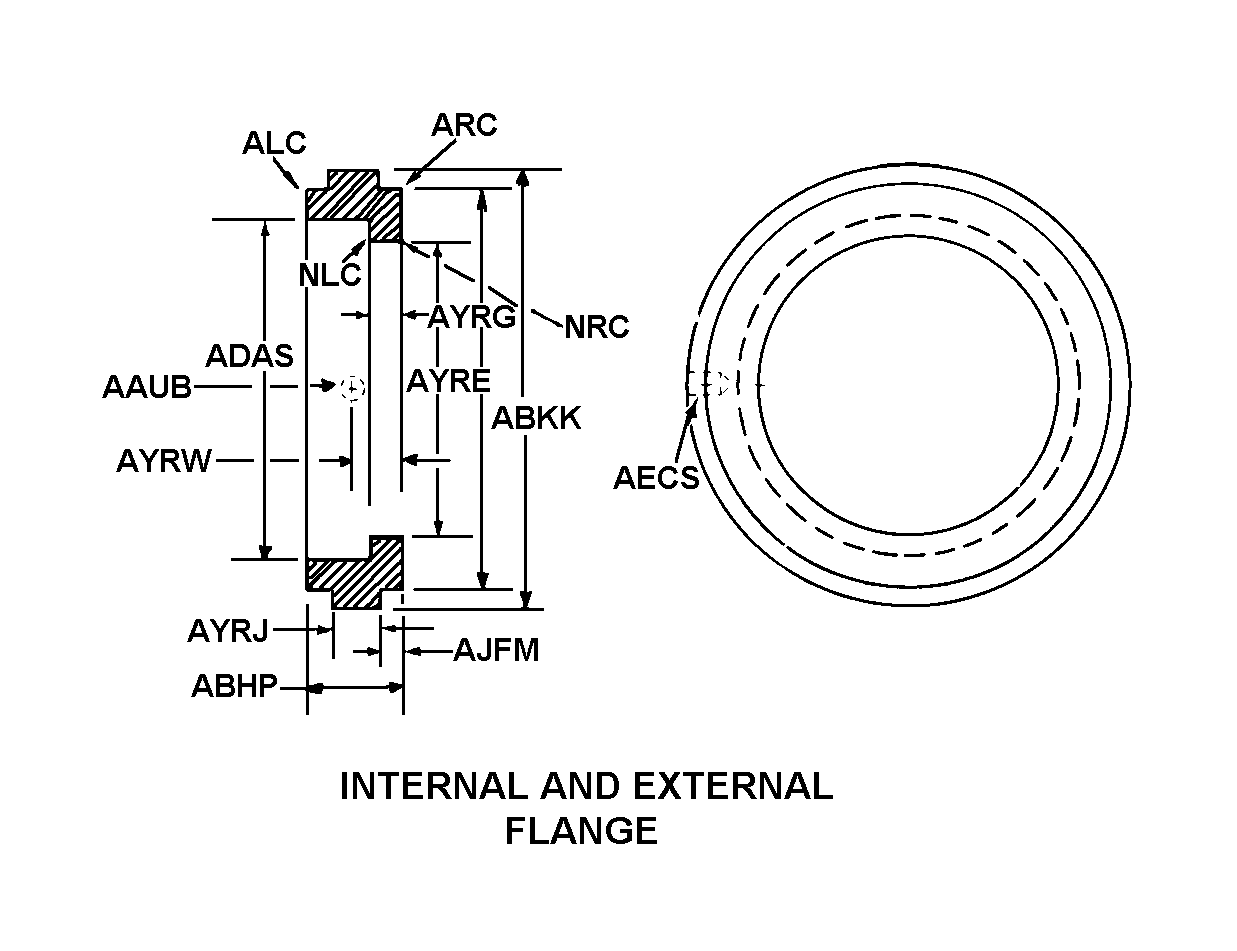

| BODY STYLE | 39 INTERNAL AND EXTERNAL FLANGE |
| OVERALL LENGTH | 0.880 INCHES NOMINAL |
| FLANGE DIAMETER | 5.123 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 4.514 INCHES NOMINAL |
| END TO FLANGE DISTANCE | 0.496 INCHES NOMINAL |
| INTERNAL FLANGE INSIDE DIAMETER | 3.747 INCHES NOMINAL |
| INTERNAL FLANGE WIDTH | 0.195 INCHES NOMINAL |
| CENTER FLANGE THICKNESS | 0.382 INCHES NOMINAL |
| DISTANCE FROM HOLE CENTER TO RIGHT FACE | ANY ACCEPTABLE |
| BOLT HOLE QUANTITY | 1 |
| CORNER SHAPE | SQUARE INSIDE LEFT CORNER CHAMFERED INSIDE RIGHT CORNER SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER |
| CHAMFER ANGLE | 27.0 DEGREES NOMINAL INSIDE RIGHT CORNER |
| CHAMFER LENGTH | 0.245 INCHES NOMINAL INSIDE RIGHT CORNER |
