Product Details | WEARING RING
4320-01-046-0272 A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves.20229350055Engine System Cooling Components, Aircraft Prime Moving43200020Power and Hand Pumps
Part Alternates: D4B16AN, 4320-01-046-0272, 01-046-0272, 4320010460272, 010460272
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 11 AUG 1977 | 01-046-0272 | 22534 ( RING, WEARING ) |
Drawings & Photos | NSN 4320-01-046-0272
Cross Reference | NSN 4320-01-046-0272
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D4B16AN | 10613 | PENTAIR PUMP GROUP, INC. DBA FAIRBANKS MORSE PUMP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-01-046-0272
Technical Data | NSN 4320-01-046-0272
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

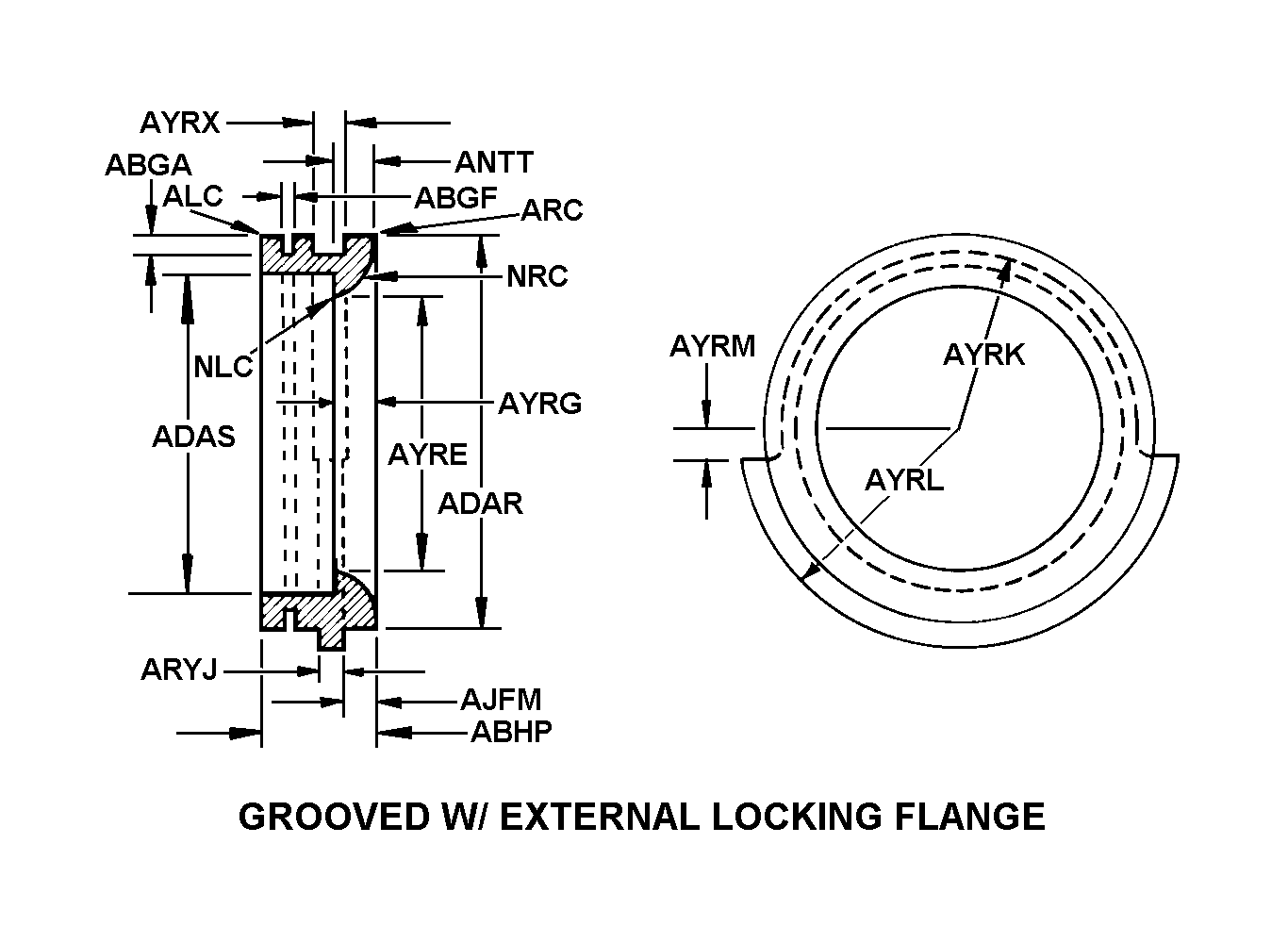

| BODY STYLE | 24 GROOVED W/EXTERNAL LOCKING FLANGE |
| GROOVE DEPTH | 0.156 INCHES NOMINAL |
| GROOVE WIDTH | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 6.125 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 5.531 INCHES NOMINAL |
| END TO FLANGE DISTANCE | 0.500 INCHES NOMINAL |
| DISTANCE FROM END TO GROOVE CENTER | 0.625 INCHES NOMINAL |
| INTERNAL FLANGE INSIDE DIAMETER | 4.500 INCHES NOMINAL |
| INTERNAL FLANGE WIDTH | 0.500 INCHES NOMINAL |
| CENTER FLANGE THICKNESS | 0.375 INCHES NOMINAL |
| SMALLEST EXTERNAL ANCHOR FLANGE RADIUS | 2.187 INCHES NOMINAL |
| LARGEST EXTERNAL ANCHOR FLANGE RADIUS | 3.093 INCHES NOMINAL |
| DISTANCE BELOW CENTERLINE | 0.812 INCHES NOMINAL |
| ANCHOR GROOVE WIDTH | 0.500 INCHES NOMINAL |
| CORNER SHAPE | SQUARE INSIDE LEFT CORNER ROUND INSIDE RIGHT CORNER SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER |
| CORNER RADIUS | 0.562 INCHES NOMINAL INSIDE RIGHT CORNER |
| SURFACE FINISH | 32.0 MICROINCHES ALL SURFACES |
| III UNPACKAGED UNIT WEIGHT | 5.00 POUNDS |
| III END ITEM IDENTIFICATION | FAIRBANKS MORSE PUMP MODEL 5972-3 INS,USED ONBOARD 378 FT WHEC COAST GUARD VESSELS |
| MANUFACTURERS CODE | 10613 |
| DESIGN CONTROL REFERENCE | D4B16AN |
