NSN 4320-01-040-1083 55-22543-20, 965258, 96525800
Product Details | PUMP SHAFT SLEEVE
4320-01-040-1083 A tubular shaped metallic item designed to provide a replaceable wearing surface for a centrifugal pump shaft. See also BEARING, SLEEVE; BUSHING, SLEEVE; and SPACER, SLEEVE.
Part Alternates: 55-22543-20, 965258, 96525800, 965258-00, 965258PA, 9652800, 96528-00, 4320-01-040-1083, 01-040-1083, 4320010401083, 552254320, 010401083
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 02 MAY 1977 | 01-040-1083 | 61082 ( SLEEVE, SHAFT, PUMP ) |

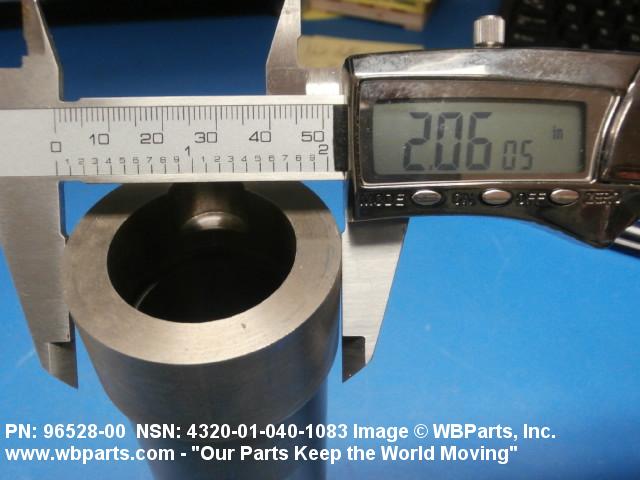

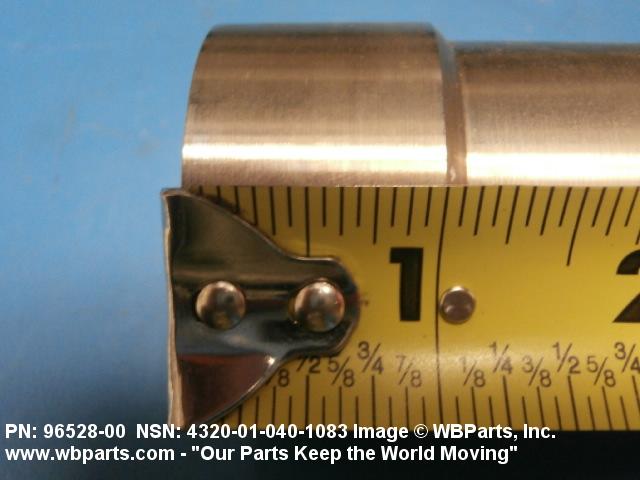

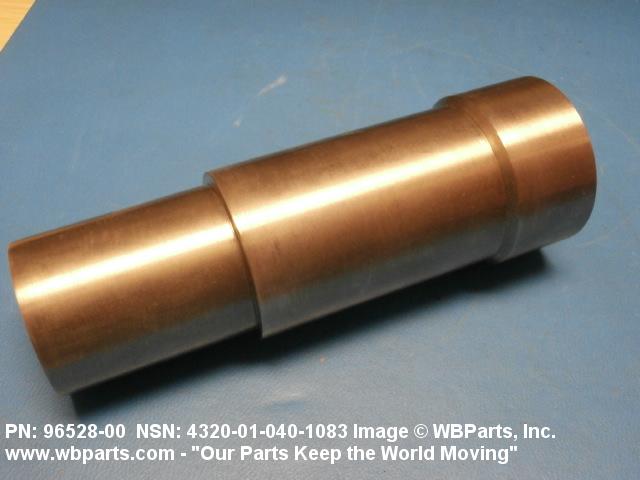

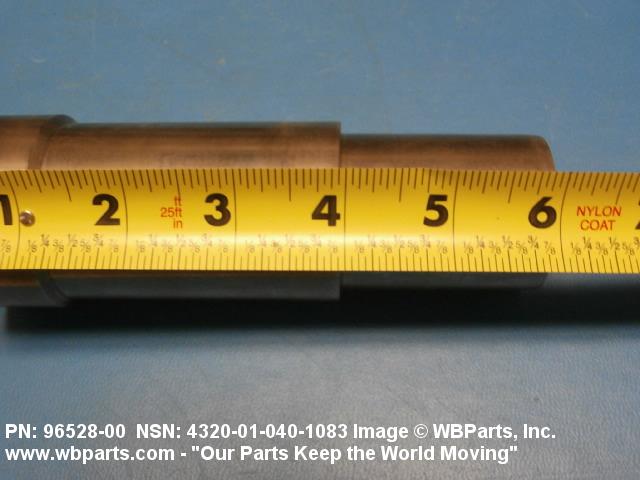

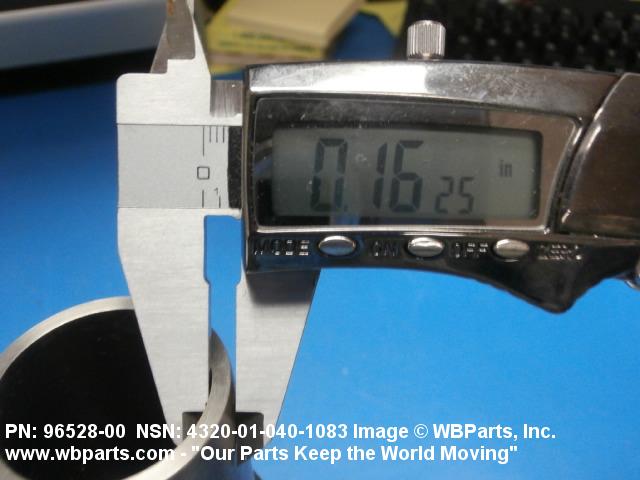

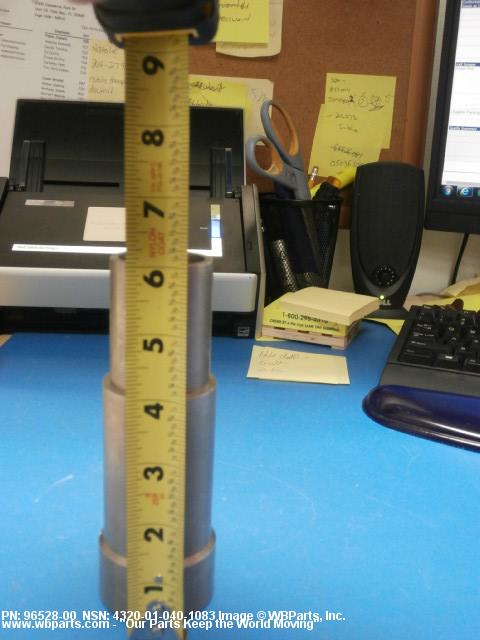

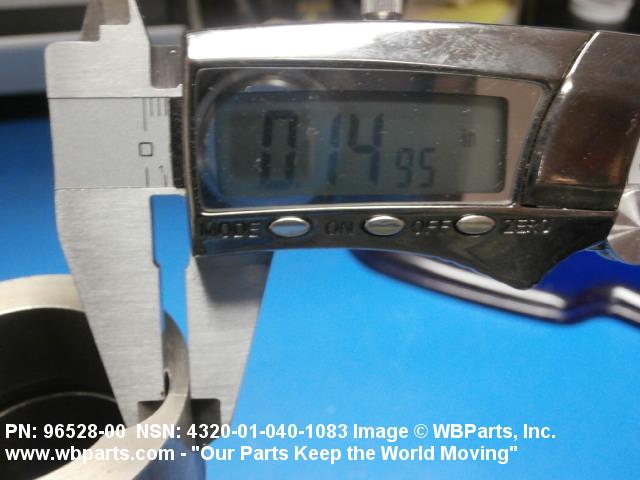

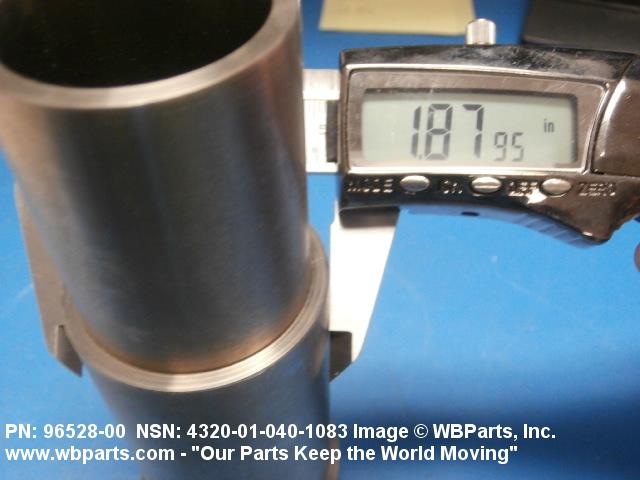

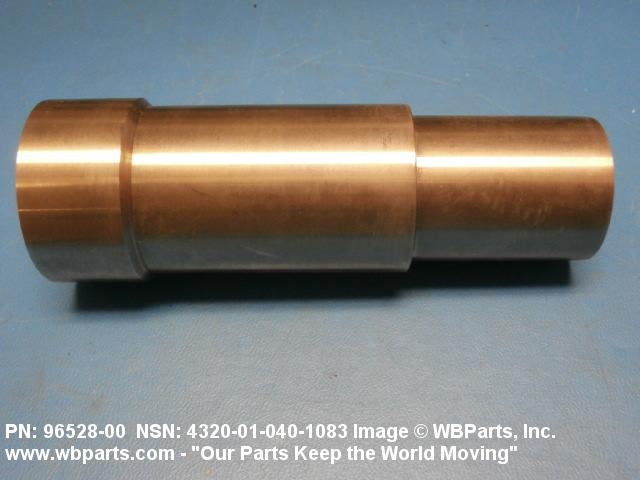

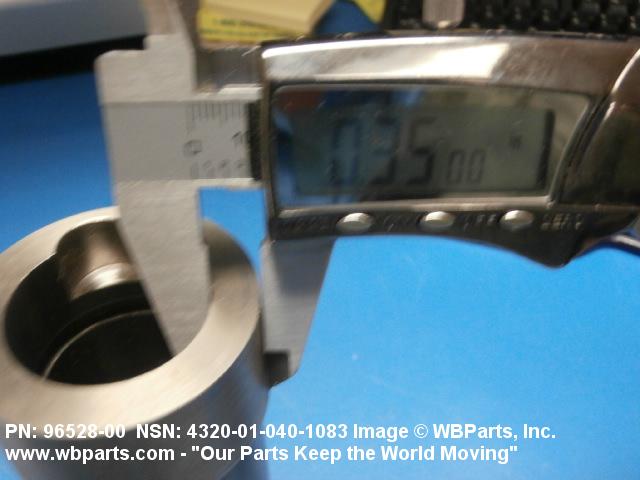

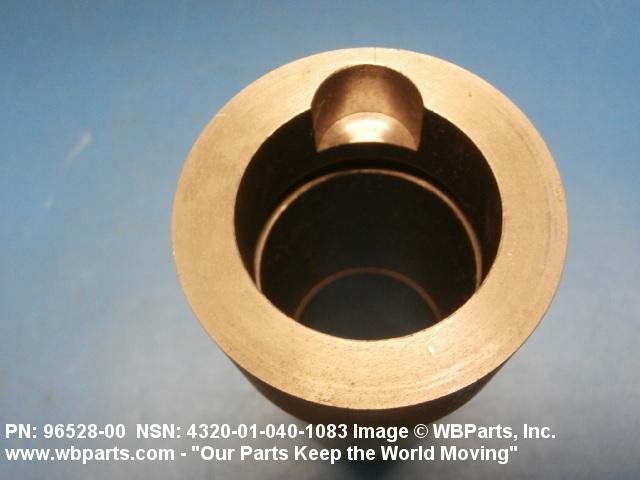

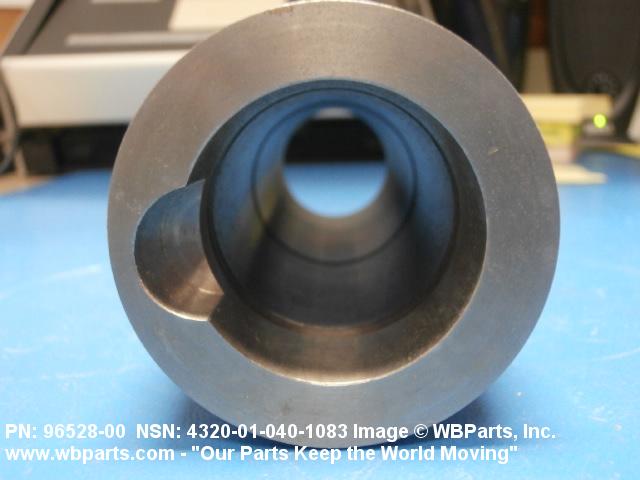

Drawings & Photos | NSN 4320-01-040-1083
Demand History | NSN 4320-01-040-1083
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-01-040-1083 | 2015-12-363 | 1 | United States |
| 4320-01-040-1083 | 2015-12-355 | 14 | DIBBS |
| 4320-01-040-1083 | 2015-12-342 | 14 | DIBBS |
| 4320-01-040-1083 | 2015-08-243 | 15 | DIBBS |
| 4320-01-040-1083 | 2015-08-230 | 15 | DIBBS |
| 4320-01-040-1083 | 2011-12-337 | 1 | DIBBS |
Cross Reference | NSN 4320-01-040-1083
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 55-22543-20 | 52081 | RAM CENTRIFUGAL PRODUCTS, INC. |
| 965258 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 965258-00 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 965258PA | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 96528-00 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-01-040-1083
Related Products | NSN 4320-01-040-1083
Technical Data | NSN 4320-01-040-1083
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

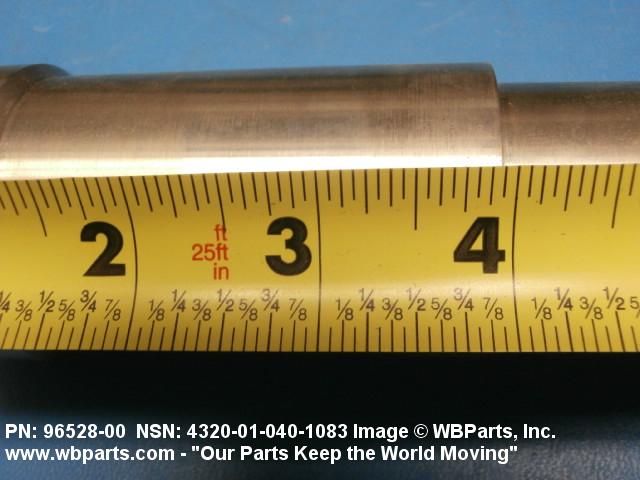

| OVERALL LENGTH | 6.0000 INCHES NOMINAL |

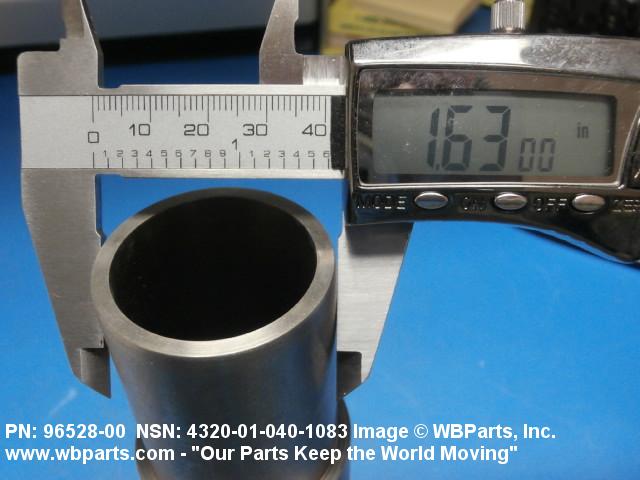

| BODY OUTSIDE DIAMETER | 1.6230 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 1.3770 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 2.0620 INCHES NOMINAL |
| FLANGE WIDTH | 1.1200 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0600 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4320-01-040-1083
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114730 | BARRELS/LINERS/SLEEVES I/C ENGINE |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-01-040-1083
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
