NSN 4320-00-945-2269 SL10322PC93, SL13022PC5, 93091404
Product Details | WEARING RING
4320-00-945-2269 A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves.20229350055Engine System Cooling Components, Aircraft Prime Moving43200020Power and Hand Pumps
Part Alternates: SL10322PC93, SL13022PC5, 93091404, 930914-04, 17551P, 17833P, 4320-00-945-2269, 00-945-2269, 4320009452269, 009452269
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 09 MAR 1966 | 00-945-2269 | 22534 ( RING, WEARING ) |
Drawings & Photos | NSN 4320-00-945-2269
Demand History | NSN 4320-00-945-2269
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-00-945-2269 | 2013-06-155 | 1 | DIBBS |
| 4320-00-945-2269 | 2013-05-150 | 2 | DIBBS |
| 4320-00-945-2269 | 2012-11-309 | 1 | DIBBS |
| 4320-00-945-2269 | 2012-08-244 | 7 | DIBBS |
| 4320-00-945-2269 | 2012-06-173 | 4 | DIBBS |
| 4320-00-945-2269 | 2009-01-08 | 19 | DIBBS |
| 4320-00-945-2269 | 2008-11-318 | 18 | DIBBS |
| 4320-00-945-2269 | 2008-09-253 | 4 | DIBBS |
| 4320-00-945-2269 | 2008-05-152 | 22 | DIBBS |
| 4320-00-945-2269 | 2008-04-101 | 24 | DIBBS |
Cross Reference | NSN 4320-00-945-2269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17551P | 0UBG9 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 17833P | 0UBG9 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 930914-04 | 0UBG9 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL10322PC93 | 0UBG9 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL13022PC5 | 0UBG9 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-00-945-2269
Technical Data | NSN 4320-00-945-2269
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

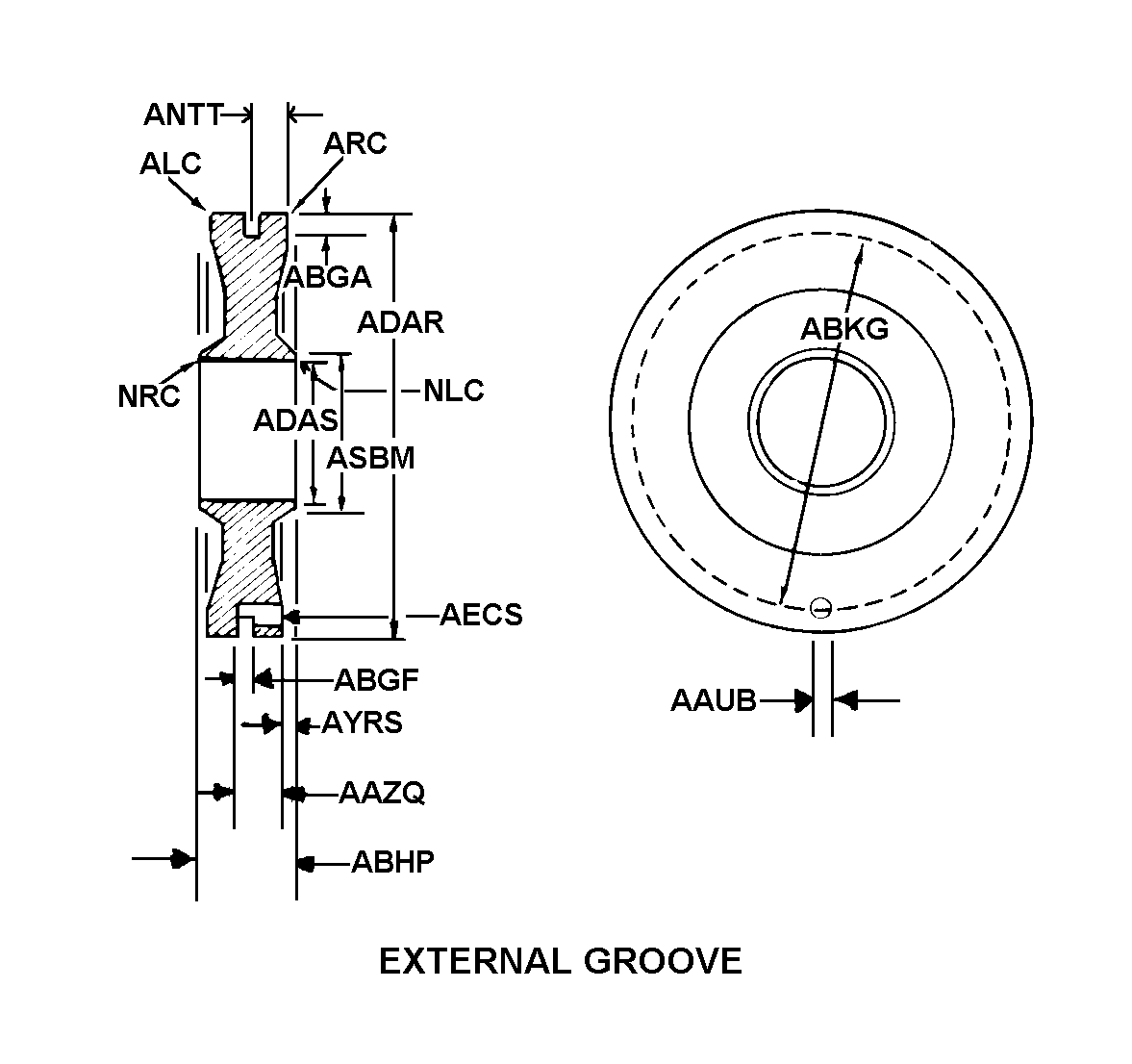

| BODY STYLE | 41 EXTERNAL GROOVE |
| HOLE DIAMETER | 0.438 INCHES NOMINAL |
| HOLE DEPTH | 0.594 INCHES NOMINAL |
| GROOVE DEPTH | 0.438 INCHES NOMINAL |
| GROOVE WIDTH | 0.344 INCHES NOMINAL |
| OVERALL LENGTH | 0.875 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 3.938 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 8.625 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 2.655 INCHES NOMINAL |
| DISTANCE FROM END TO GROOVE CENTER | 0.484 INCHES NOMINAL |
| HUB DIAMETER | 2.875 INCHES NOMINAL |
| DISTANCE FROM END | 0.062 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 1 |
| CORNER SHAPE | SQUARE ALL CORNERS |
| MANUFACTURERS CODE | 93232 |
| DESIGN CONTROL REFERENCE | 17833P |
Restrictions/Controls & Freight Information | NSN 4320-00-945-2269
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-945-2269
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
