NSN 4320-00-897-2289 7560156208, 756-0156-208, 7560156217
Product Details | PUMP SHAFT SLEEVE
4320-00-897-2289 A tubular shaped metallic item designed to provide a replaceable wearing surface for a centrifugal pump shaft. See also BEARING, SLEEVE; BUSHING, SLEEVE; and SPACER, SLEEVE.
Part Alternates: 7560156208, 756-0156-208, 7560156217, 756-0156-217, 4320-00-897-2289, 00-897-2289, 4320008972289, 008972289
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 30 JAN 1967 | 00-897-2289 | 61082 ( SLEEVE, SHAFT, PUMP ) |

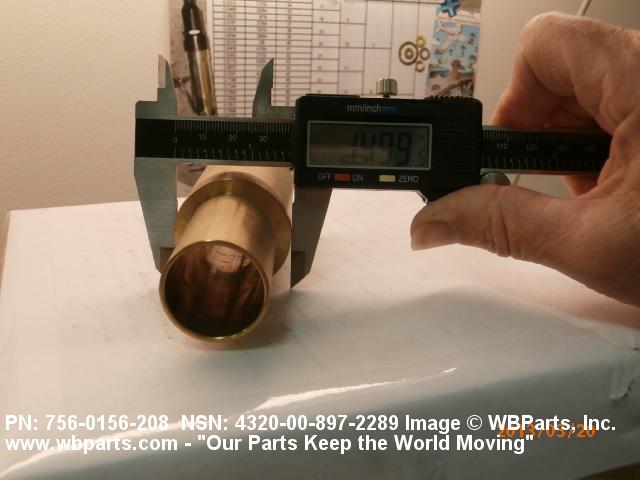

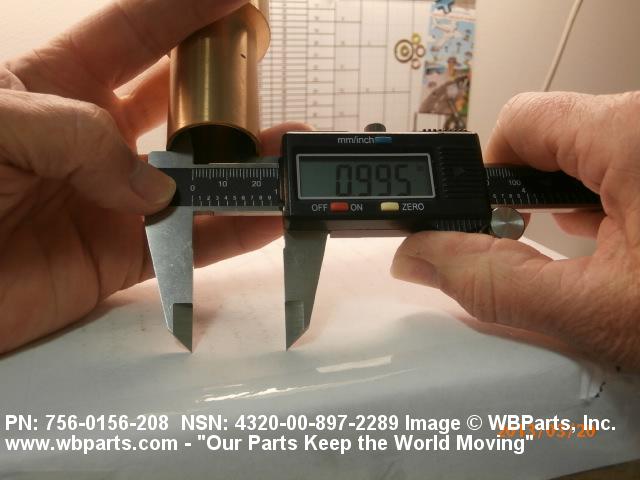

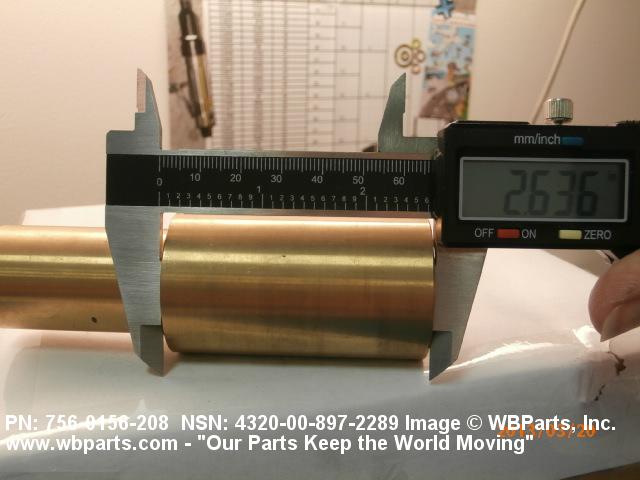

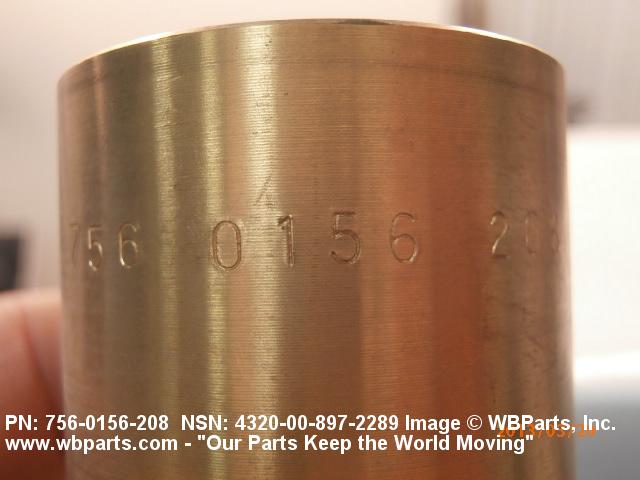

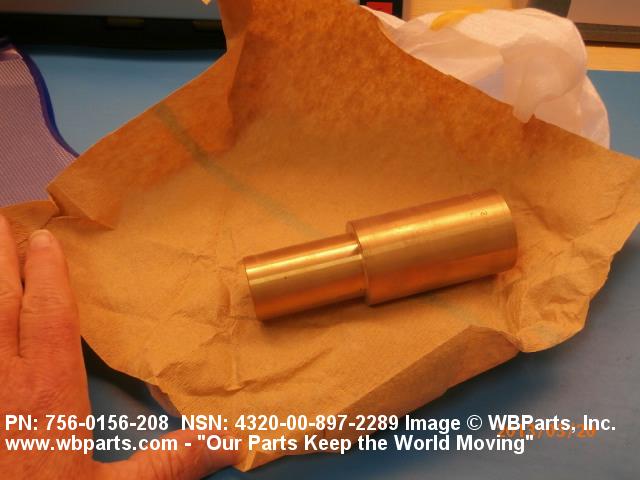

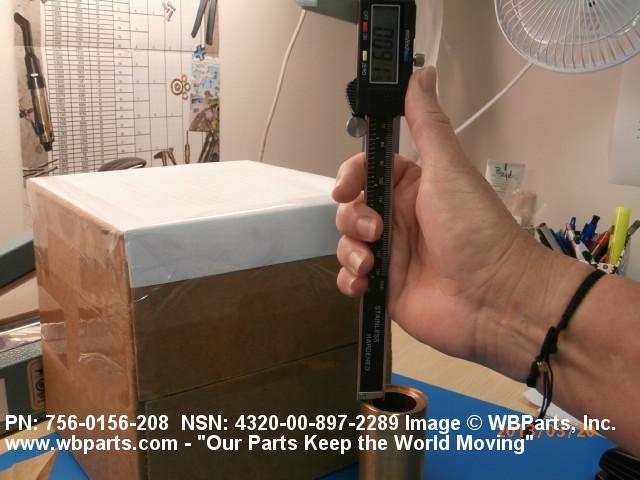

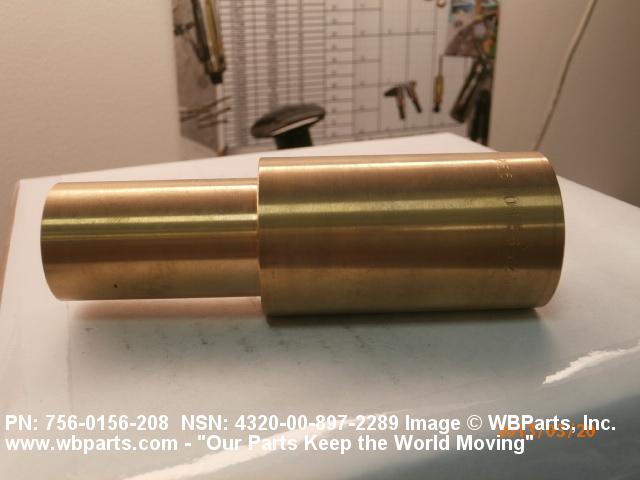

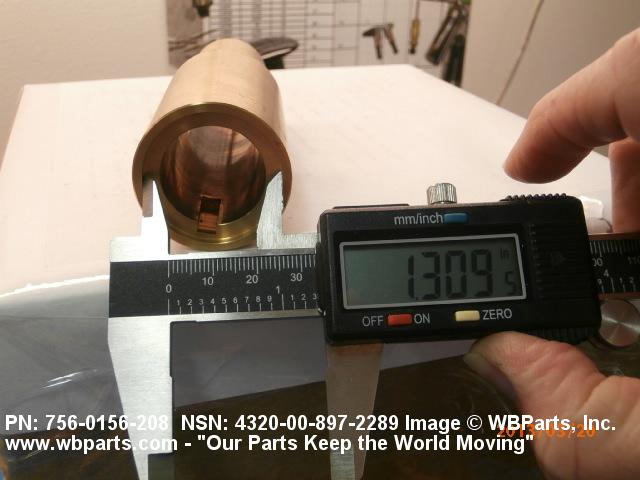

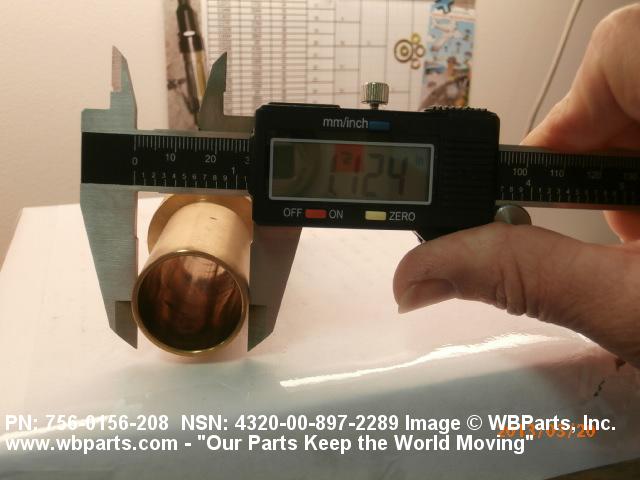

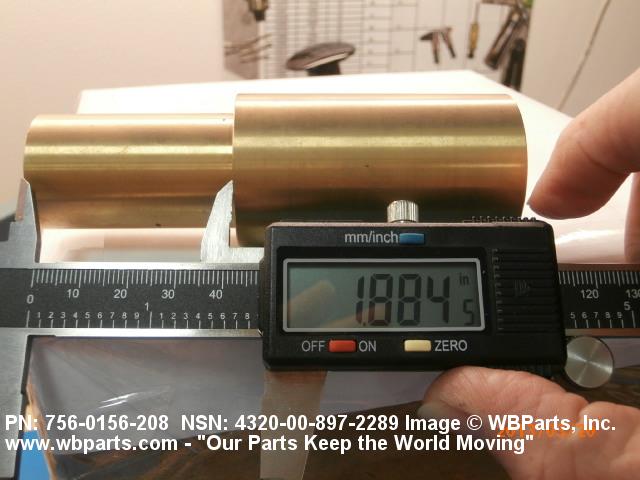

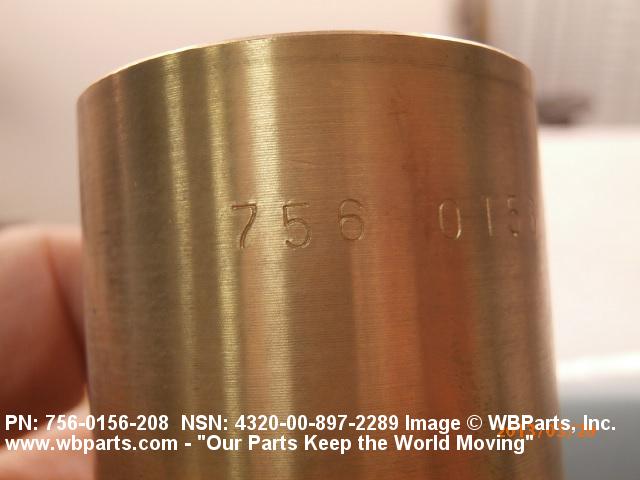

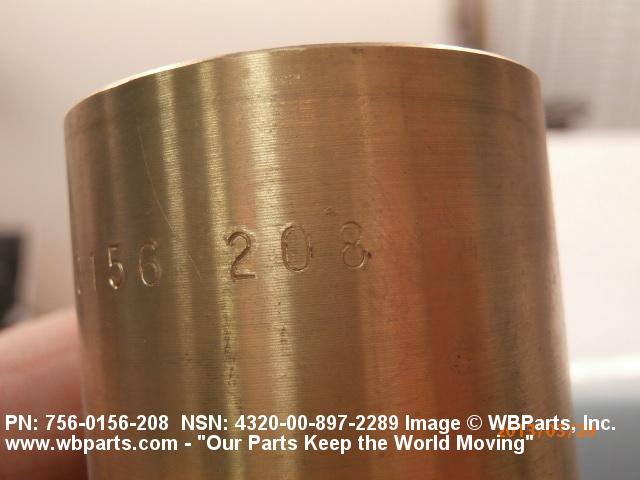

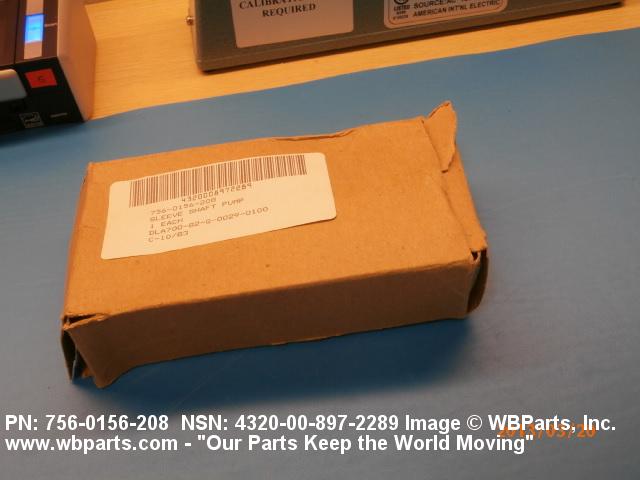

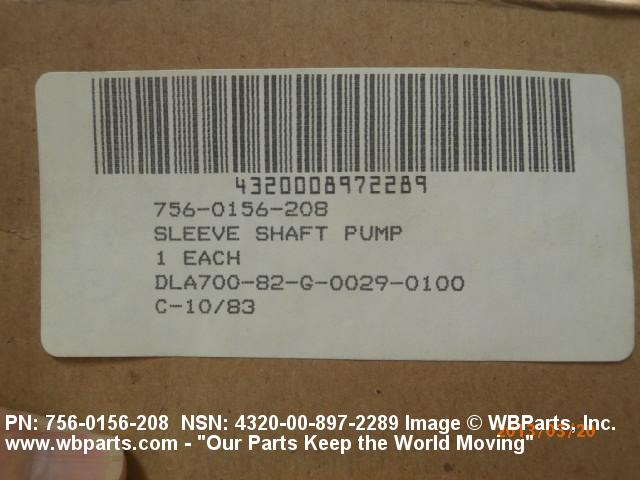

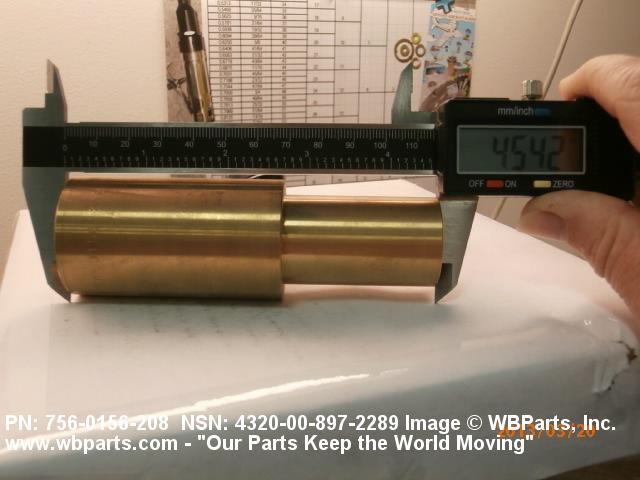

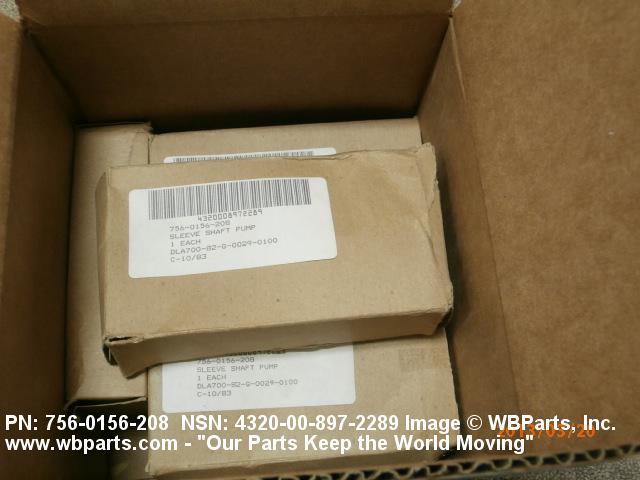

Drawings & Photos | NSN 4320-00-897-2289
Demand History | NSN 4320-00-897-2289
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-00-897-2289 | 2013-03-71 | 6 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-00-897-2289
Related Products | NSN 4320-00-897-2289
Technical Data | NSN 4320-00-897-2289
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 4.5312 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.2500 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 1.0000 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 1.5000 INCHES NOMINAL |
| FLANGE WIDTH | 2.6406 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| KEYWAY DIMENSION | ANY ACCEPTABLE INTERNAL KEYWAY DEPTH 0.6250 INCHES NOMINAL INTERNAL KEYWAY LENGTH |
| FEATURES PROVIDED | CASEHARDENED |
| SPECIAL FEATURES | FLANGED END COUNTERBORED TO 1.3125 IN. DIA AND 0.0937 IN. DEEP |
Restrictions/Controls & Freight Information | NSN 4320-00-897-2289
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-897-2289
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
