NSN 4320-00-792-8187 FP4145, 13200E8808, 15948
Product Details | CENTRIFUGAL PUMP IMPELLER

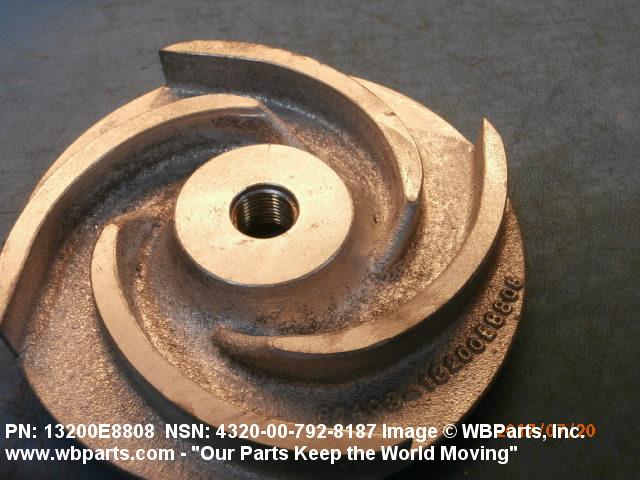

4320-00-792-8187 An item consisting of blades or paddles equally spaced around the periphery of a hub, rotor, or wheel. It is the rotating part of a PUMP, CENTRIFUGAL.20529100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving43200020Power and Hand Pumps
Part Alternates: FP4145, 13200E8808, 15948, 2S388, 33635, 4320-00-792-8187, 00-792-8187, 4320007928187, 007928187
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1962 | 00-792-8187 | 10089 ( IMPELLER, PUMP, CENTRIFUGAL ) |

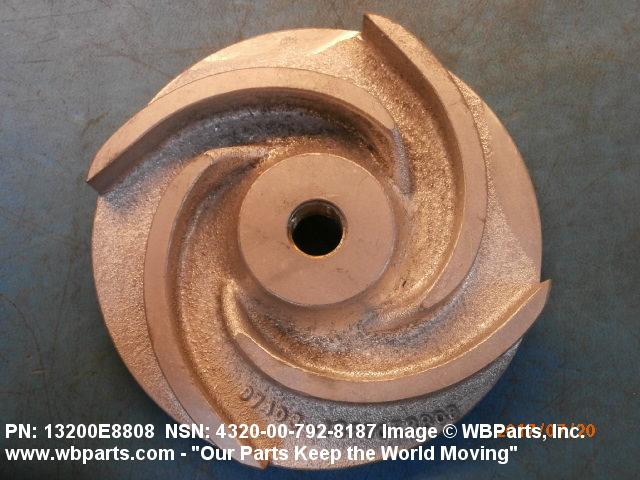

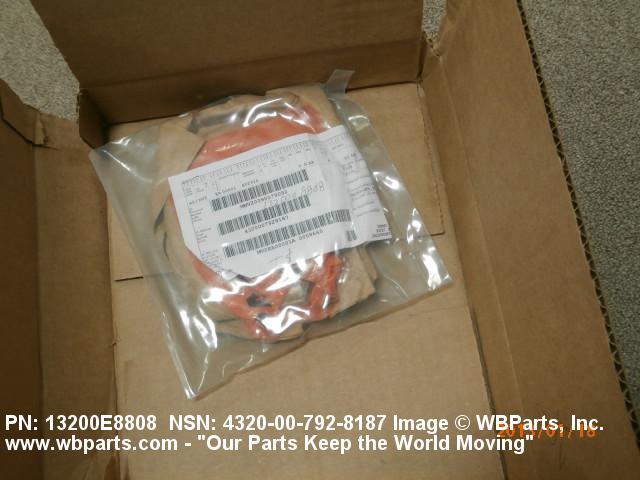

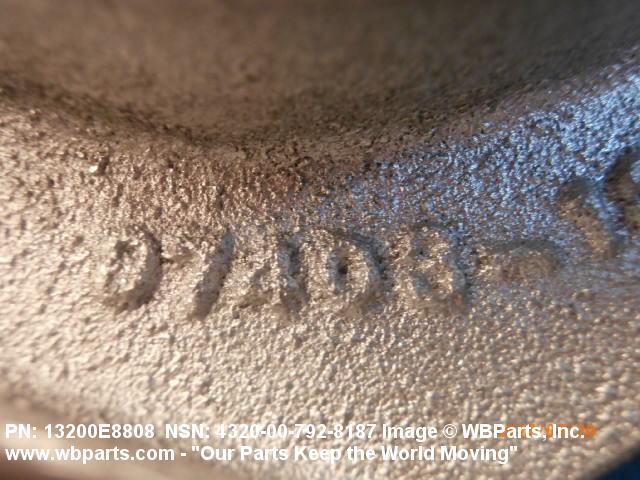

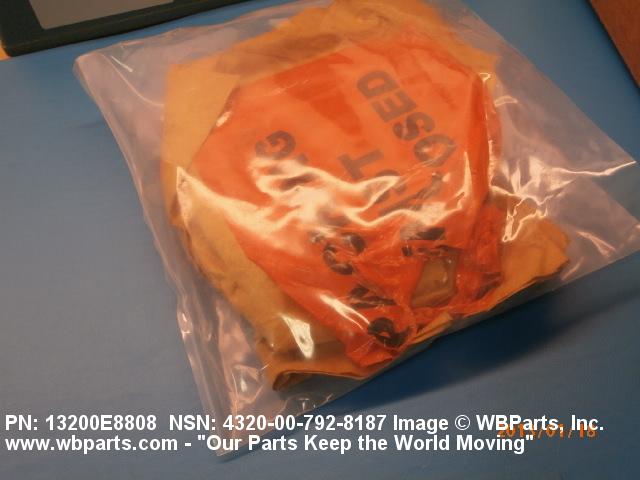

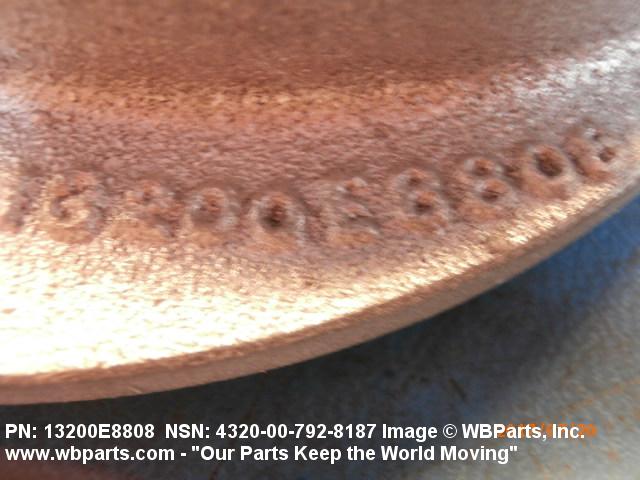

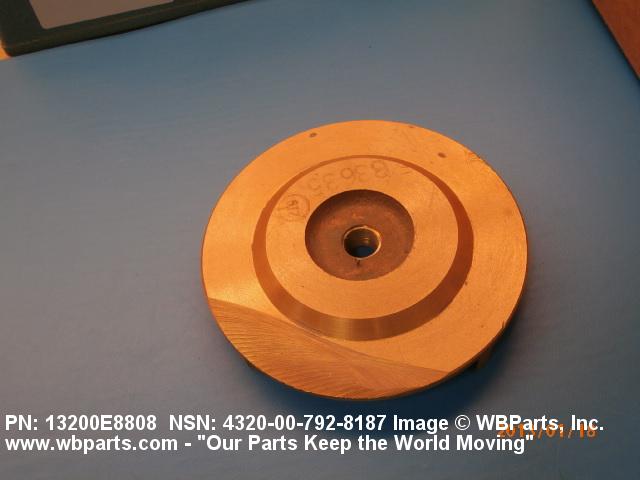

Drawings & Photos | NSN 4320-00-792-8187
Demand History | NSN 4320-00-792-8187
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 15948 | 2019-04-115 | 34 | US |
| 15948 | 2019-04-107 | 34 | United States |
| 13200E8808 | 2017-07-195 | 1 | United States |
| 15948 | 2016-01-21 | 20 | US |
| 4320-00-792-8187 | 2014-06-157 | 1 | US |
| 4320-00-792-8187 | 2013-04-107 | 46 | DIBBS |
| 4320-00-792-8187 | 2013-04-92 | 46 | DIBBS |
| 4320-00-792-8187 | 2012-05-137 | 1 | United States |
| 4320-00-792-8187 | 2012-03-80 | 33 | DIBBS |
| 4320-00-792-8187 | 2011-09-271 | 34 | DIBBS |
| 4320-00-792-8187 | 2010-10-299 | 31 | DIBBS |
| 4320-00-792-8187 | 2009-09-244 | 92 | DIBBS |
| 4320-00-792-8187 | 2008-02-43 | 60 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-00-792-8187
Related Products | NSN 4320-00-792-8187
Technical Data | NSN 4320-00-792-8187
| Characteristic | Specifications |
|---|---|

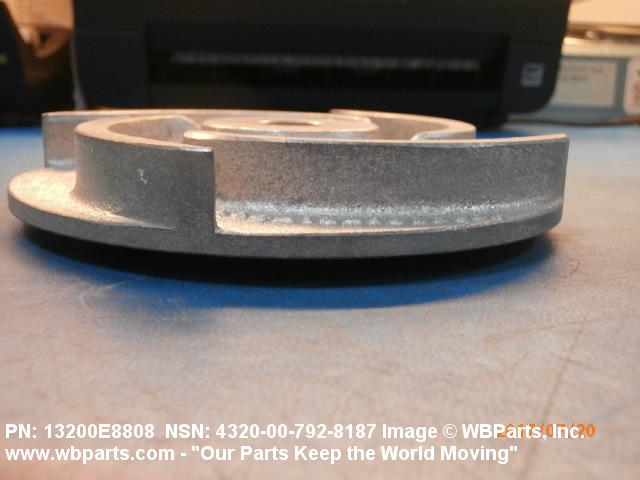

| BLADE TYPE | FORWARD CURVE |
| MATERIAL | BRONZE ASTM B144 ALLOY NO. 938 |
| SURFACE TREATMENT | CADMIUM |
| DESIGN TYPE | SINGLE WIDTH |
| BLADE QUANTITY | 4 |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |

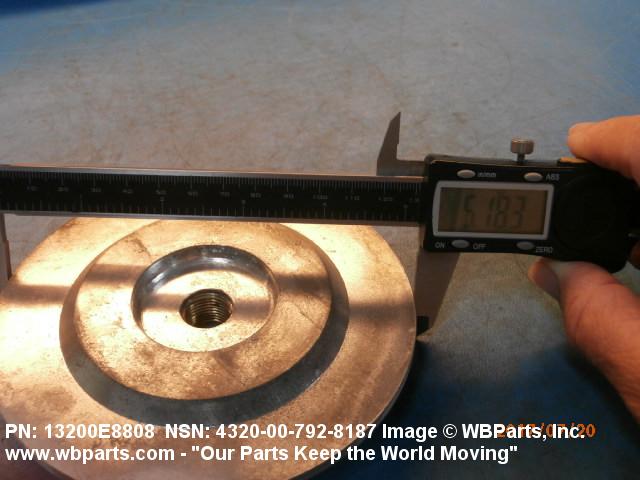

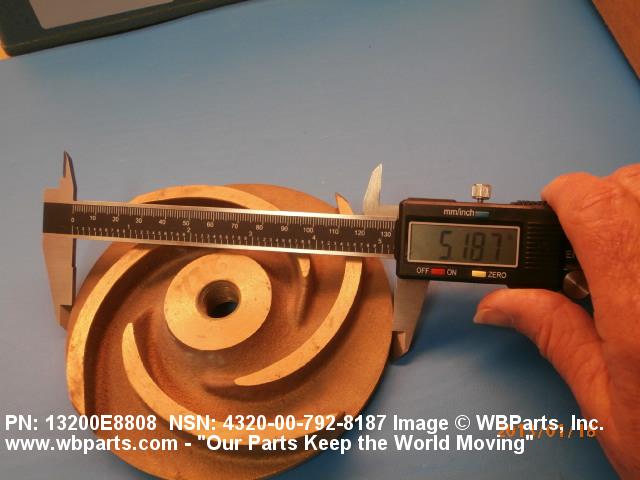

| OVERALL DIAMETER | 5.183 INCHES MINIMUM AND 5.188 INCHES MAXIMUM |

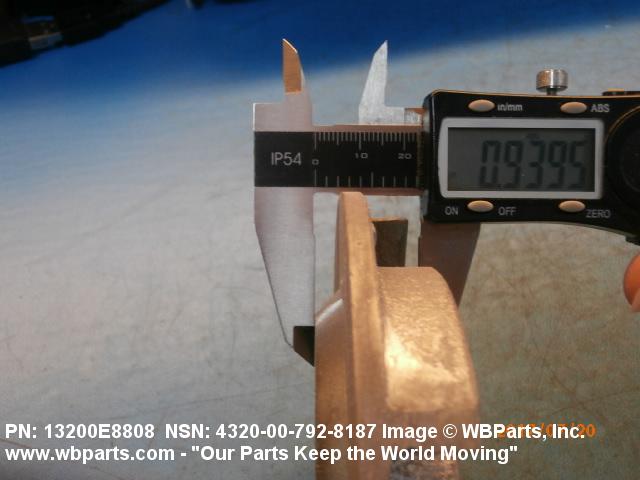

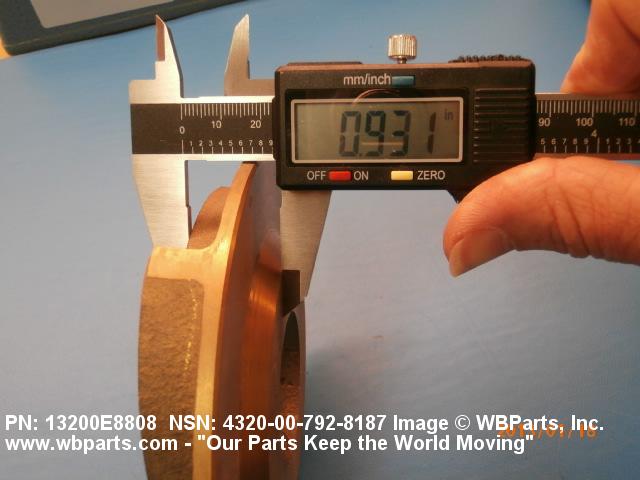

| OVERALL WIDTH | 0.935 INCHES MINIMUM AND 0.939 INCHES MAXIMUM |
| HUB QUANTITY | 1 |

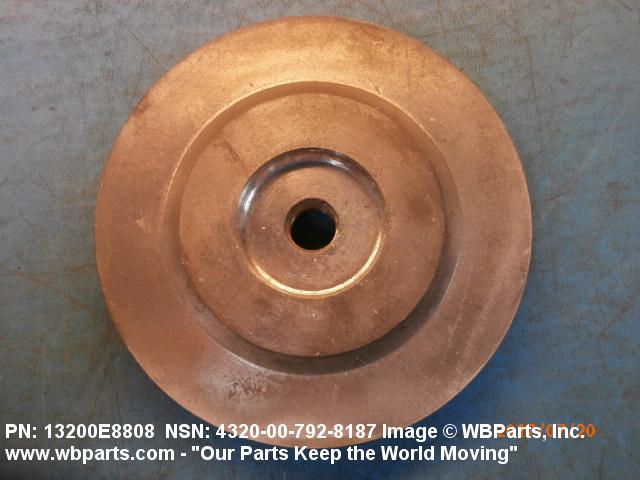

| HUB LOCATION | BACK SIDE |

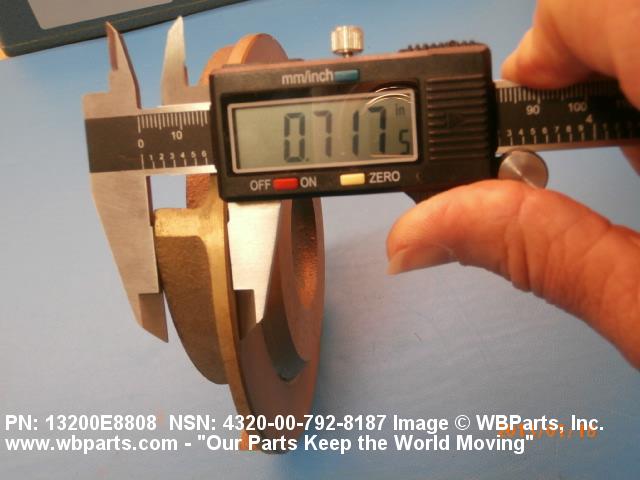

| HUB LENGTH | 0.716 INCHES MINIMUM 0.720 INCHES MAXIMUM |

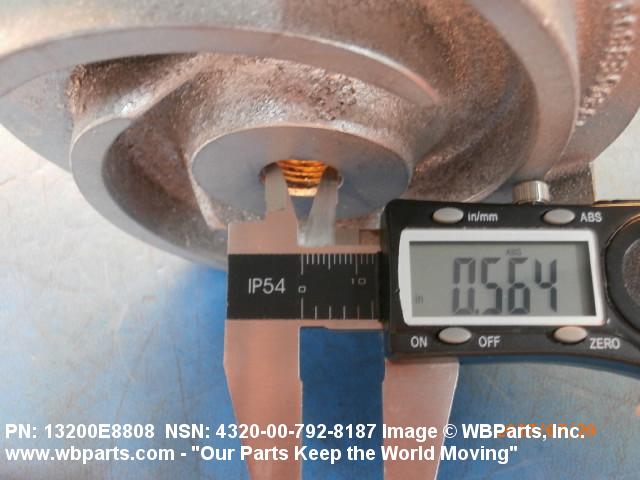

| HUB BORE DIAMETER | 0.646 INCHES MINIMUM 0.656 INCHES MAXIMUM |
| HUB PROJECTION LENGTH BEYOND WHEEL SIDE | 0.531 INCHES NOMINAL |
| MOUNTING METHOD | THREAD |
| THREAD DIAMETER | 0.625 INCHES NOMINAL |

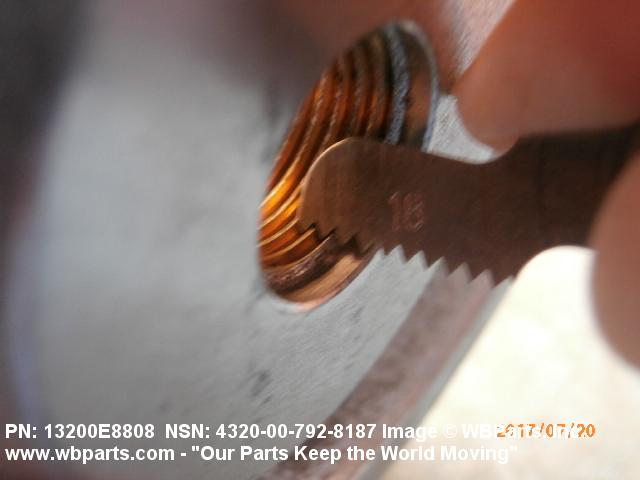

| THREAD QUANTITY | 18 PER INCH |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 4320-00-792-8187
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120800 | ENGINES, INTERNAL COMBUSTION, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-792-8187
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
