Product Details | HYDRAULIC RESERVOIR

4320-00-646-9387 000202253000004320000000

Part Alternates: 9089878, 4320-00-646-9387, 00-646-9387, 4320006469387, 006469387

Pumps and Compressors | Power and Hand Pumps

Supply Group (FSG) NSN Assign. NIIN
43 01 JAN 1963 00-646-9387

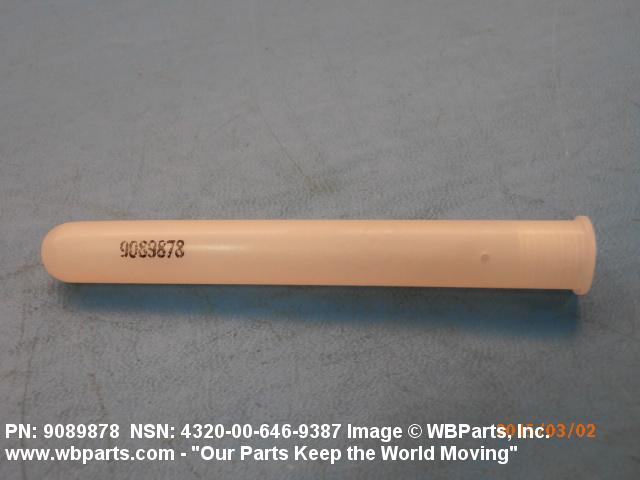

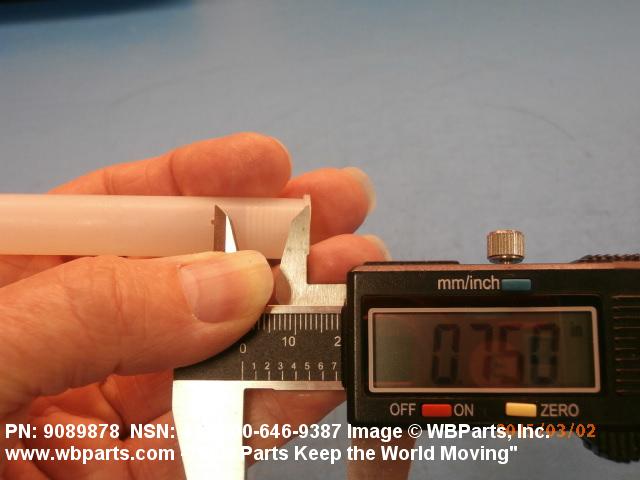

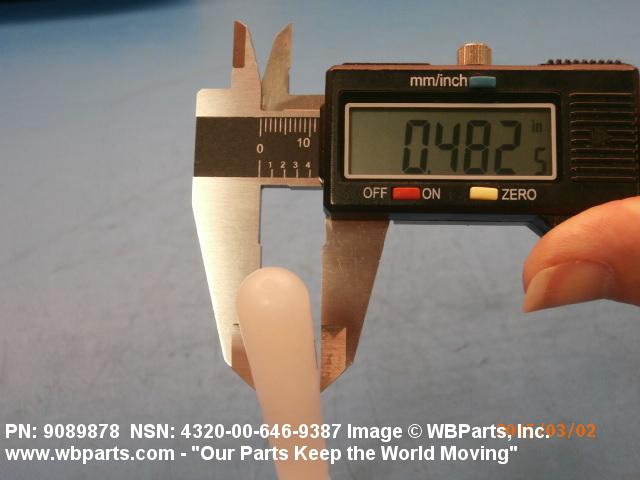

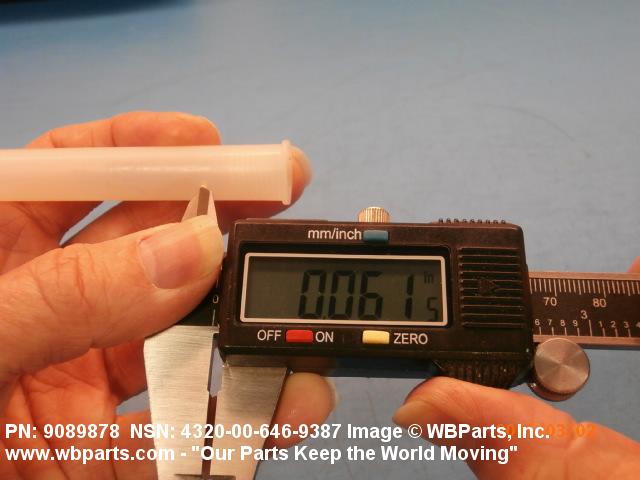

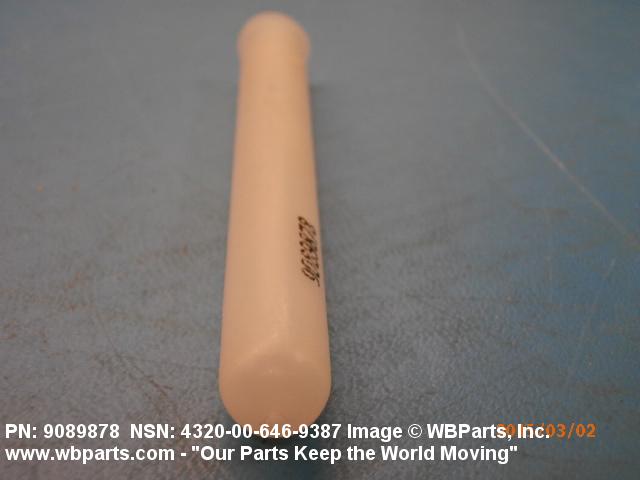

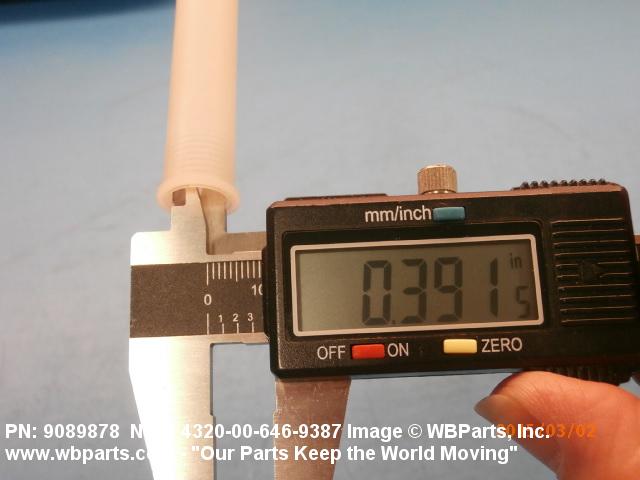

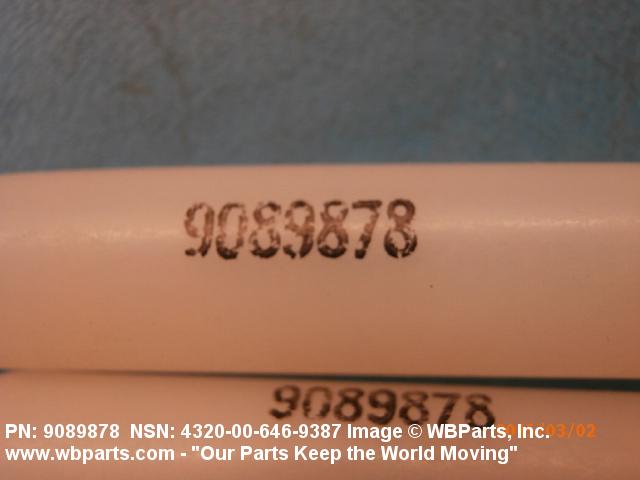

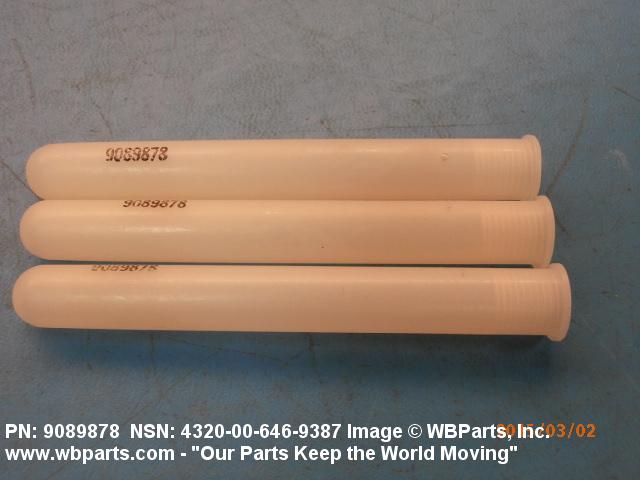

Drawings & Photos | NSN 4320-00-646-9387


Demand History | NSN 4320-00-646-9387

Part Number Request Date QTY Origin
4320-00-646-9387 2016-05-122 3 DIBBS
4320-00-646-9387 2016-04-103 4 DIBBS
4320-00-646-9387 2016-02-38 11 DIBBS
4320-00-646-9387 2015-10-298 11 DIBBS
4320-00-646-9387 2015-05-149 4 DIBBS
4320-00-646-9387 2015-05-138 4 DIBBS
9089878 2015-02-42 4 us
9089878 2015-02-42 10 us
9089878 2015-02-42 13 us
4320-00-646-9387 2014-10-279 4 DIBBS
4320-00-646-9387 2014-09-266 4 DIBBS
4320-00-646-9387 2011-12-350 5 DIBBS
4320-00-646-9387 2011-10-287 2 DIBBS
4320-00-646-9387 2011-09-246 4 DIBBS
4320-00-646-9387 2010-01-17 10 DIBBS
4320-00-646-9387 2008-02-58 8 DIBBS
4320-00-646-9387 2007-06-166 5 DIBBS
4320-00-646-9387 2007-03-78 7 DIBBS

Cross Reference | NSN 4320-00-646-9387

Part Number Cage Code Manufacturer
9089878 18876 U S ARMY AVIATION AND MISSILE COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4320-00-646-9387

Technical Data | NSN 4320-00-646-9387

Characteristic Specifications

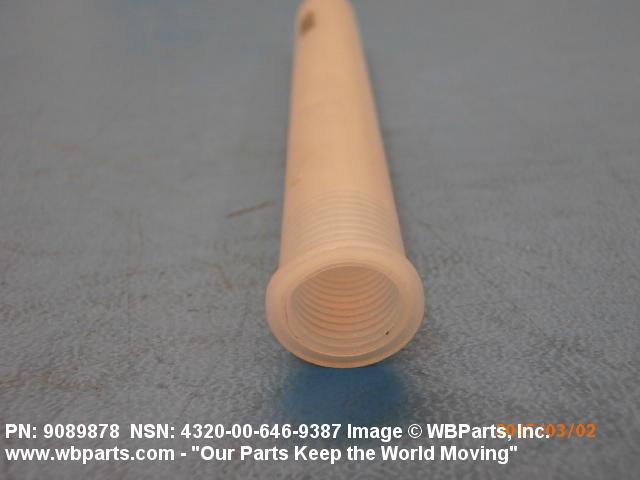

GENERAL CHARACTERISTICS ITEM DESCRIPTION PLASTIC,ASTM D4101,TYPEPP111 E01; 0.438-20 UNF-3B THD AT OPEN END OF TUBE; 0.062 IN. DIA DRILLED HOLE THRU 1 SIDE 0.75IN. FROM THD END

Restrictions/Controls & Freight Information | NSN 4320-00-646-9387

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 128000 PUMPS PWR NOI/WORKING HEADS/PARTS
Less than car load rating W Rating Variable
Less than truck load rating M 85.0
Water commodity Code 594 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4320-00-646-9387

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Z
EA : Each
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
