NSN 4320-00-633-5708 3719765, 371976-5, 3719767
Product Details | ROTARY PUMP
4320-00-633-5708 A positive displacement device which utilzes the rotating motion of one or more gears, cams, vanes, or screws in an enclosure as a means of transferring a liquid from one place to another. It is designed to be driven manually or by a prime mover which is not an integral part of the pump. Excludes aircraft engine pumps.
Part Alternates: 3719765, 371976-5, 3719767, 371976-7, 4320-00-633-5708, 00-633-5708, 4320006335708, 006335708
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-633-5708 | 30410 ( PUMP, ROTARY ) |

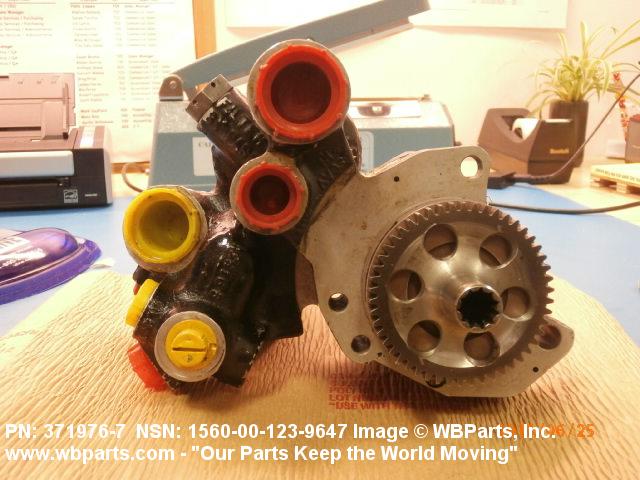

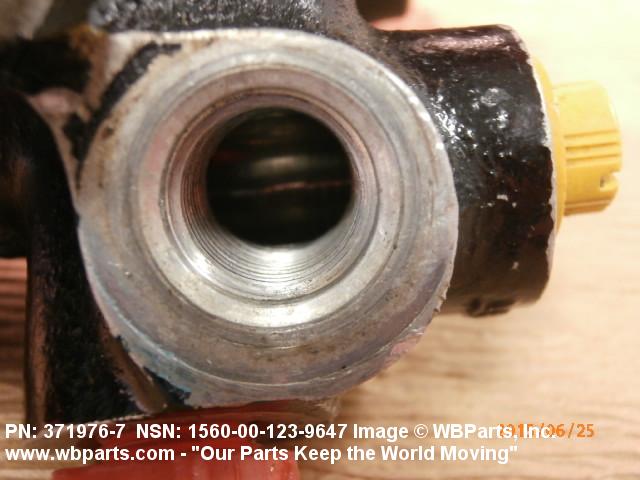

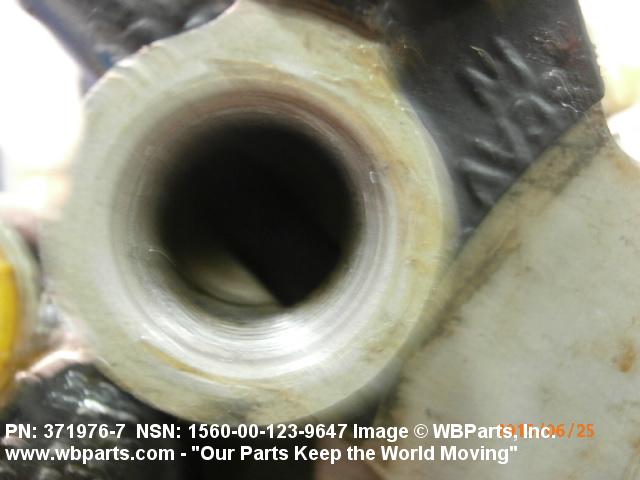

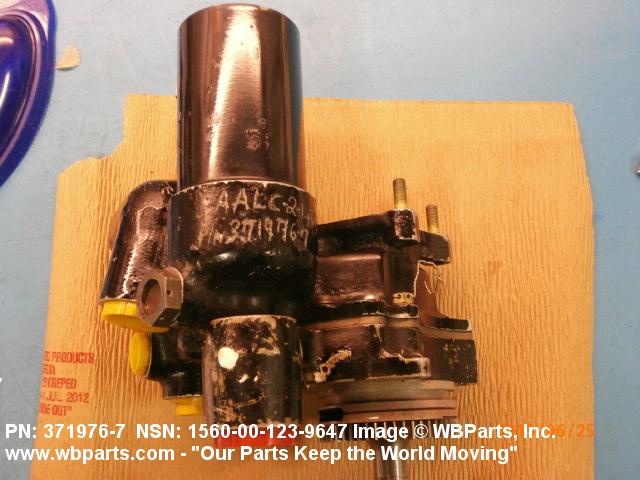

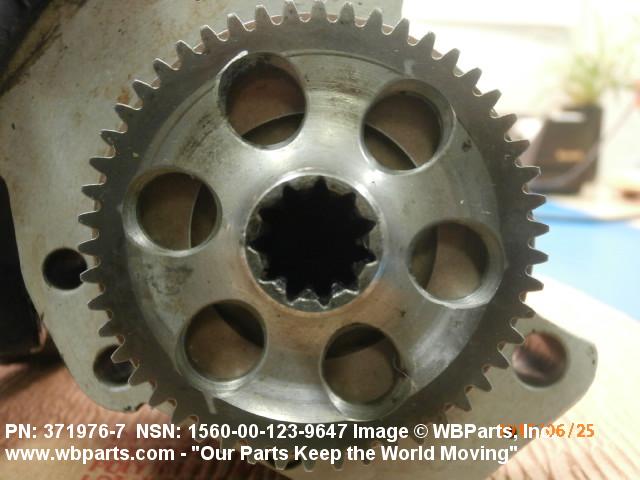

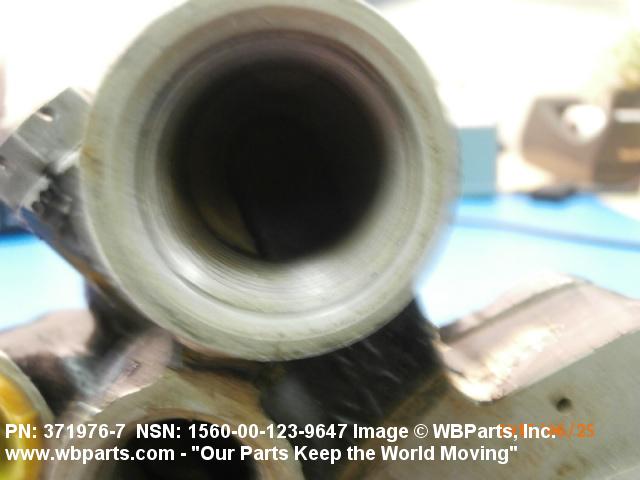

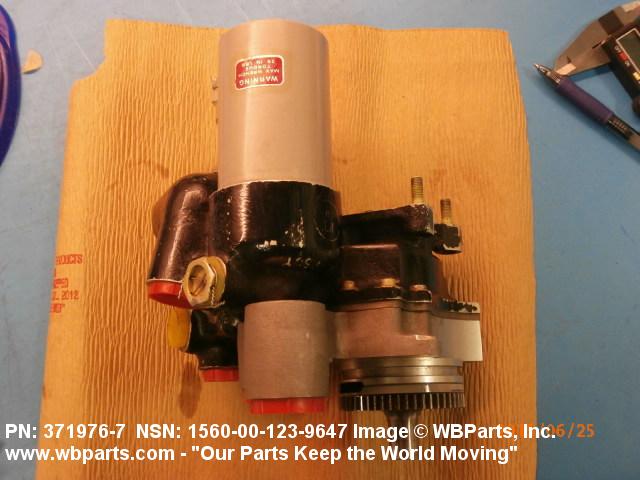

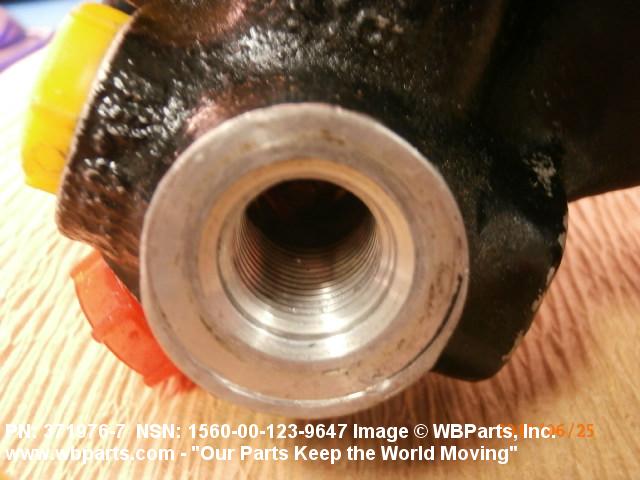

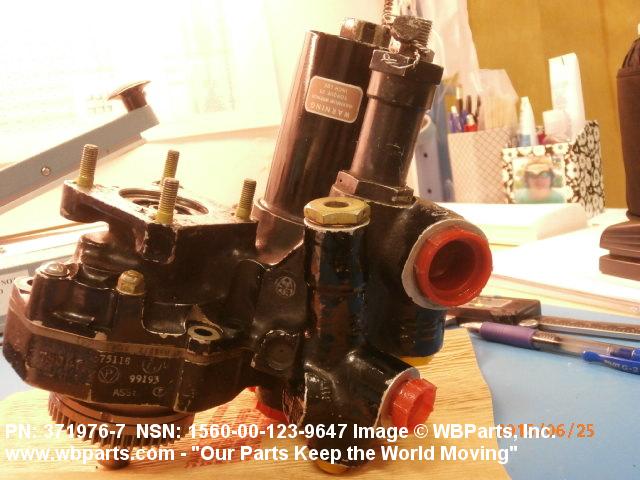

Drawings & Photos | NSN 4320-00-633-5708
Demand History | NSN 4320-00-633-5708
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3719767 | 2015-02-33 | 2 | United States |
| 3719767 | 2014-11-318 | 2 | Singapore |
| 4320-00-633-5708 | 2014-06-155 | 1 | SG |
| 4320-00-633-5708 | 2014-06-155 | 1 | SG |
Cross Reference | NSN 4320-00-633-5708
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 371976-5 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 371976-5 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 371976-5 | 81833 | TRANSDIGM, INC. DBA AEROCONTROLEX |
| 371976-5 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 371976-7 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 371976-7 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 371976-7 | 81833 | TRANSDIGM, INC. DBA AEROCONTROLEX |
| 371976-7 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-00-633-5708
Related Products | NSN 4320-00-633-5708
Technical Data | NSN 4320-00-633-5708
| Characteristic | Specifications |
|---|---|
| MAXIMUM DISCHARGE FLOW RATE | 7.0 GALLONS PER MINUTE |
| DISCHARGE PRESSURE | 110.0 POUNDS PER SQUARE INCH GAGE |
| OPERATING SPEED AT RATED CAPACITY | 4250.0 REVOLUTIONS PER MINUTE |
| MEDIA FOR WHICH DESIGNED | HYDROCARBON FUELS AND OILS |
| PUMPING ELEMENT OPERATING POSITION | HORIZONTAL |
| PUMP ROTATION DIRECTION | CLOCKWISE |
| ROTARY PUMP DESIGN | GEAR |
| OPERATION METHOD | POWERED |
| INTAKE CONNECTION QUANTITY | 3 |
| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.062-12 NPT |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED INTERNAL |
| DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.062-12 NPT |
| DRIVE CONNECTION TYPE | CLOSE COUPLED |
| (NON-CORE DATA) INTEGRAL RELIEF VALVE | INCLUDED |
| MANUFACTURERS CODE | 81833 |
| DESIGN CONTROL REFERENCE | 371976-7 |
Restrictions/Controls & Freight Information | NSN 4320-00-633-5708
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-633-5708
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | YP | SU:GAS TURBINES AND JET ENGINES NON-AIRCRAFT |
| Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Special Material ID | GH | HELICOPTERS(H34) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 7 | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
