Product Details | WEARING RING
4320-00-555-8787 A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves.20229350055Engine System Cooling Components, Aircraft Prime Moving43200020Power and Hand Pumps
Part Alternates: RX120807, RX120807REVA2PCALL, 7076E54PC82, 4320-00-555-8787, 00-555-8787, 4320005558787, 005558787
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-555-8787 | 22534 ( RING, WEARING ) |
Drawings & Photos | NSN 4320-00-555-8787
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-00-555-8787
Related Products | NSN 4320-00-555-8787
Technical Data | NSN 4320-00-555-8787
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |

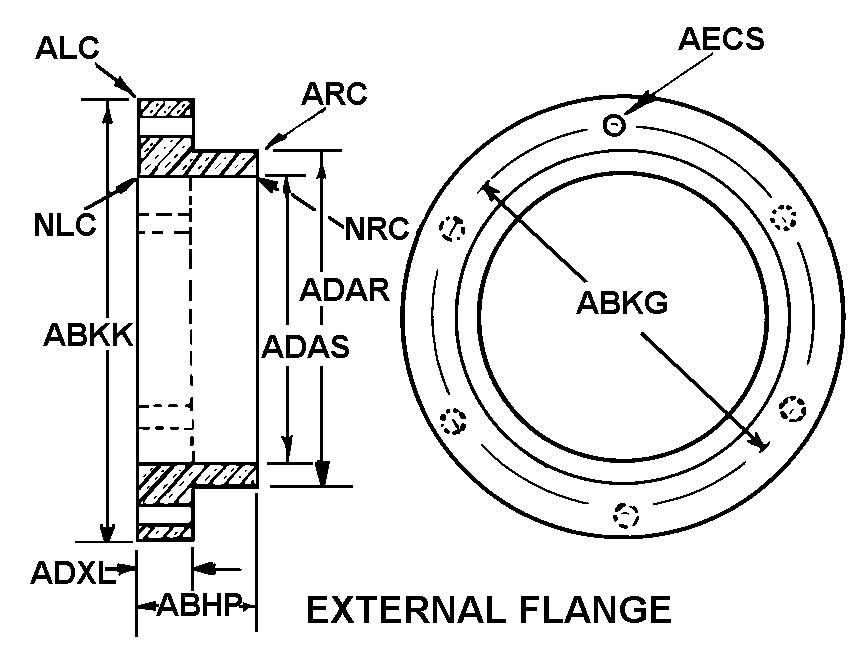

| BODY STYLE | 7A EXTERNAL FLANGE |
| OVERALL LENGTH | 1.562 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 17.000 INCHES NOMINAL |
| FLANGE DIAMETER | 18.375 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 15.873 INCHES MINIMUM AND 15.874 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 14.015 INCHES MINIMUM AND 14.017 INCHES MAXIMUM |
| LEFT SIDE FLANGE THICKNESS | 0.688 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 6 |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE NOMINAL THREAD SIZE | 0.500 INCHES |
| CORNER SHAPE | SQUARE INSIDE LEFT CORNER SQUARE INSIDE RIGHT CORNER CHAMFERED OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER |
| CHAMFER ANGLE | 45.0 DEGREES MINIMUM OUTSIDE LEFT CORNER |
| CHAMFER LENGTH | 0.125 INCHES NOMINAL OUTSIDE RIGHT CORNER |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY MATERIAL IN ACCORDANCE WITH ACTIVITY HXQUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 93232 |
| DESIGN CONTROL REFERENCE | RX120807REVA2PCALL |
