Product Details | WEARING RING
4320-00-555-3297 A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves.20229350055Engine System Cooling Components, Aircraft Prime Moving43200020Power and Hand Pumps
Part Alternates: R529PC77, C178, 4320-00-555-3297, 00-555-3297, 4320005553297, 005553297
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-555-3297 | 22534 ( RING, WEARING ) |
Drawings & Photos | NSN 4320-00-555-3297
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-00-555-3297
Technical Data | NSN 4320-00-555-3297
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

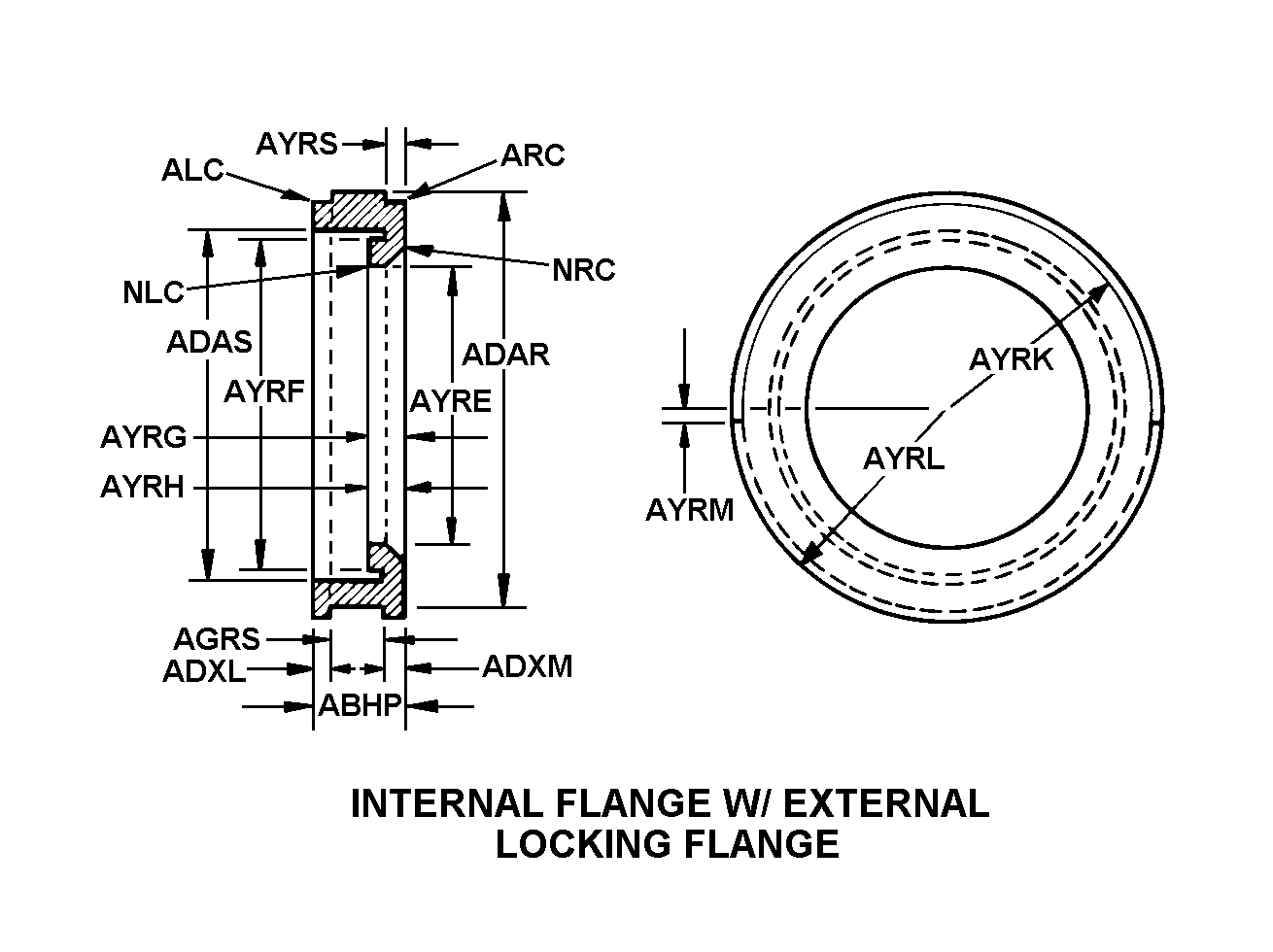

| BODY STYLE | 37 INTERNAL FLANGE W/EXTERNAL LOCKING FLANGE |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 10.499 INCHES MINIMUM AND 10.500 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 9.375 INCHES MINIMUM AND 9.737 INCHES MAXIMUM |
| LEFT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| DISTANCE BETWEEN FLANGES | 0.625 INCHES NOMINAL |
| INTERNAL FLANGE INSIDE DIAMETER | 8.625 INCHES NOMINAL |
| INTERNAL FLANGE OUTSIDE DIAMETER | 9.140 INCHES NOMINAL |
| INTERNAL FLANGE WIDTH | 0.531 INCHES NOMINAL |
| INTERNAL FLANGE LIP WIDTH | ANY ACCEPTABLE |
| SMALLEST EXTERNAL ANCHOR FLANGE RADIUS | 5.250 INCHES NOMINAL |
| LARGEST EXTERNAL ANCHOR FLANGE RADIUS | 5.438 INCHES NOMINAL |
| DISTANCE BELOW CENTERLINE | 0.094 INCHES NOMINAL |
| DISTANCE FROM END | 0.625 INCHES NOMINAL |
| CORNER SHAPE | SQUARE INSIDE LEFT CORNER ROUND INSIDE RIGHT CORNER SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER |
| CORNER RADIUS | 0.250 INCHES NOMINAL INSIDE RIGHT CORNER |
| SURFACE FINISH | 125.0 MICROINCHES ALL SURFACES |
