Product Details | WEARING RING
4320-00-555-1759 A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves.20229350055Engine System Cooling Components, Aircraft Prime Moving43200020Power and Hand Pumps
Part Alternates: B100A, R489PC15, R490REVAPC15, R536REVAITEM3, 5852081716464AITEM3, 585-208-1716464AITEM3, 5852081716464REVAITEM3, 585-208-1716464REVAITEM3, 4320-00-555-1759, 00-555-1759, 4320005551759, 005551759
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-555-1759 | 22534 ( RING, WEARING ) |

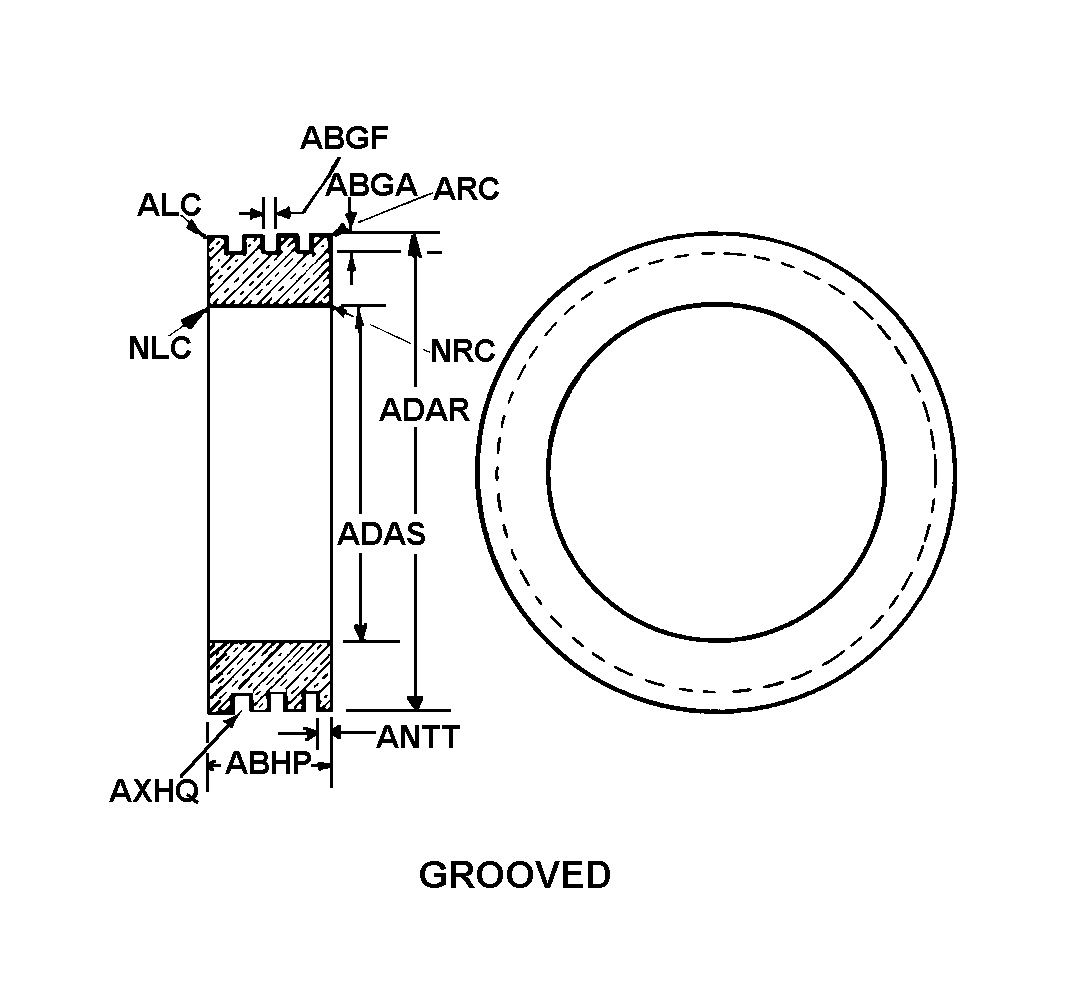

Drawings & Photos | NSN 4320-00-555-1759
Cross Reference | NSN 4320-00-555-1759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 585-208-1716464AITEM3 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 585-208-1716464REVAITEM3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| B100A | 63857 | WARREN PUMPS LLC |
| R489PC15 | 63857 | WARREN PUMPS LLC |
| R490REVAPC15 | 63857 | WARREN PUMPS LLC |
| R536REVAITEM3 | 63857 | WARREN PUMPS LLC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4320-00-555-1759
4320-00-555-1777, 4320-00-555-1813, 4320-00-555-1815, 4320-00-555-1924, 4320-00-555-1925
Technical Data | NSN 4320-00-555-1759
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| BODY STYLE | 5 GROOVED |
| GROOVE DEPTH | 0.062 INCHES NOMINAL |
| GROOVE WIDTH | 0.094 INCHES NOMINAL |
| OVERALL LENGTH | 0.875 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 8.373 INCHES MINIMUM AND 8.374 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 7.752 INCHES MINIMUM AND 7.753 INCHES MAXIMUM |
| DISTANCE FROM END TO GROOVE CENTER | 0.156 INCHES NOMINAL |
| GROOVE QUANTITY | 4 |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SURFACE FINISH | 125.0 MICROINCHES ALL SURFACES |
Restrictions/Controls & Freight Information | NSN 4320-00-555-1759
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-555-1759
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
