NSN 4320-00-218-3393 SL4879PC70, SL4881PC70, SL6411PC70
Product Details | WEARING RING
4320-00-218-3393 A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves.20229350055Engine System Cooling Components, Aircraft Prime Moving43200020Power and Hand Pumps
Part Alternates: SL4879PC70, SL4881PC70, SL6411PC70, SL6413PC70, SL6449PC70, SL6451PC70, SL7647PC90, SL7649PC70, SL8132PC39, SL8807PC40, H43202183393, H4320-218-3393, RW108840ITEM8, RY102634LINE2, 55-22098-18, 552209818US, 55-22098-18US, 25488112, 254881-12, 342P, 4320-00-218-3393, 00-218-3393, 4320002183393, 002183393, 552209818
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-218-3393 | 22534 ( RING, WEARING ) |
Drawings & Photos | NSN 4320-00-218-3393
Cross Reference | NSN 4320-00-218-3393
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 254881-12 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 342P | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 55-22098-18 | 52081 | RAM CENTRIFUGAL PRODUCTS, INC. |
| 55-22098-18US | 52081 | RAM CENTRIFUGAL PRODUCTS, INC. |
| H4320-218-3393 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| RW108840ITEM8 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| RY102634LINE2 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL4879PC70 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL4881PC70 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL6411PC70 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL6413PC70 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL6449PC70 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL6451PC70 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL7647PC90 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL7649PC70 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL8132PC39 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL8807PC40 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-00-218-3393
Technical Data | NSN 4320-00-218-3393
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-390,ALLOY D2 FED SPEC SINGLE MATERIAL RESPONSE |

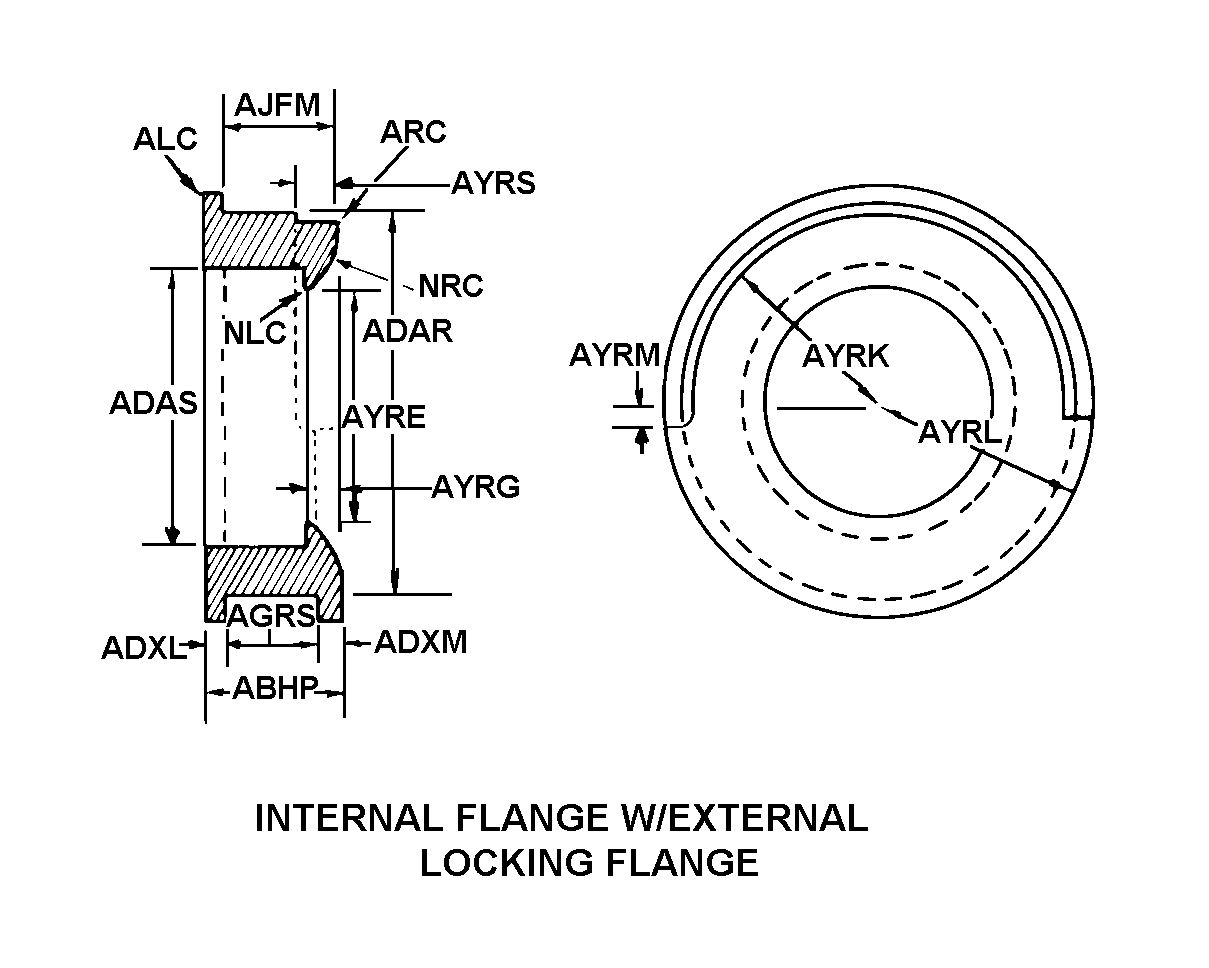

| BODY STYLE | 34 INTERNAL FLANGE W/EXTERNAL LOCKING FLANGE |
| OVERALL LENGTH | 0.969 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.996 INCHES MINIMUM AND 2.998 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 2.468 INCHES MINIMUM AND 2.470 INCHES MAXIMUM |
| LEFT SIDE FLANGE THICKNESS | 0.156 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.188 INCHES NOMINAL |
| DISTANCE BETWEEN FLANGES | 0.625 INCHES MINIMUM AND 0.627 INCHES MAXIMUM |
| END TO FLANGE DISTANCE | 0.812 INCHES NOMINAL |
| INTERNAL FLANGE INSIDE DIAMETER | 1.812 INCHES NOMINAL |
| INTERNAL FLANGE WIDTH | 0.406 INCHES NOMINAL |
| SMALLEST EXTERNAL ANCHOR FLANGE RADIUS | 1.438 INCHES NOMINAL |
| LARGEST EXTERNAL ANCHOR FLANGE RADIUS | 1.688 INCHES NOMINAL |
| DISTANCE BELOW CENTERLINE | 0.062 INCHES NOMINAL |
| DISTANCE FROM END | 0.312 INCHES NOMINAL |
| CORNER SHAPE | ROUND INSIDE LEFT CORNER ROUND INSIDE RIGHT CORNER CHAMFERED OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER |
| CHAMFER ANGLE | 22.5 DEGREES NOMINAL OUTSIDE LEFT CORNER |
| CHAMFER LENGTH | 0.062 INCHES NOMINAL OUTSIDE LEFT CORNER |
| CORNER RADIUS | 0.062 INCHES NOMINAL INSIDE LEFT CORNER 0.625 INCHES NOMINAL INSIDE RIGHT CORNER |
Restrictions/Controls & Freight Information | NSN 4320-00-218-3393
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-218-3393
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
