NSN 4320-00-097-4580 AN6523L1A, MILP8258, MIL-P-8258

Product Details | MANUAL INFLATING PUMP

4320-00-097-4580 00001014320000000

Part Alternates: AN6523L1A, MILP8258, MIL-P-8258, 4320-00-097-4580, 00-097-4580, 4320000974580, 000974580

Pumps and Compressors | Power and Hand Pumps

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
43	01 JAN 1963	00-097-4580	17299 ( PUMP, INFLATING, MANUAL0 )

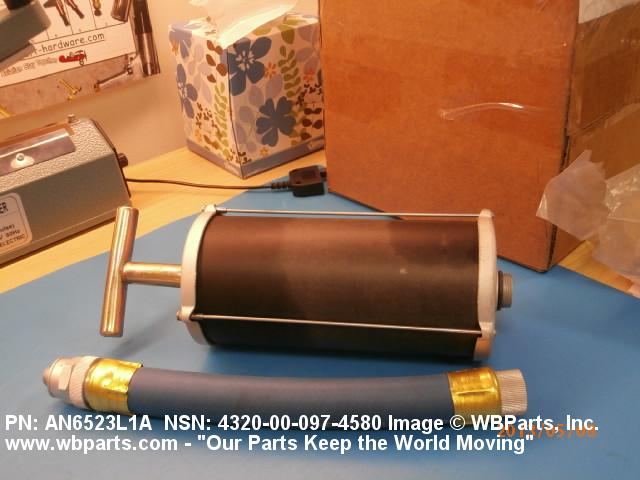

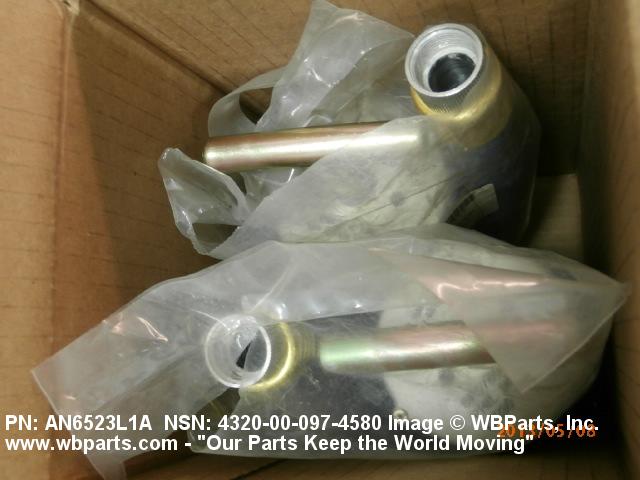

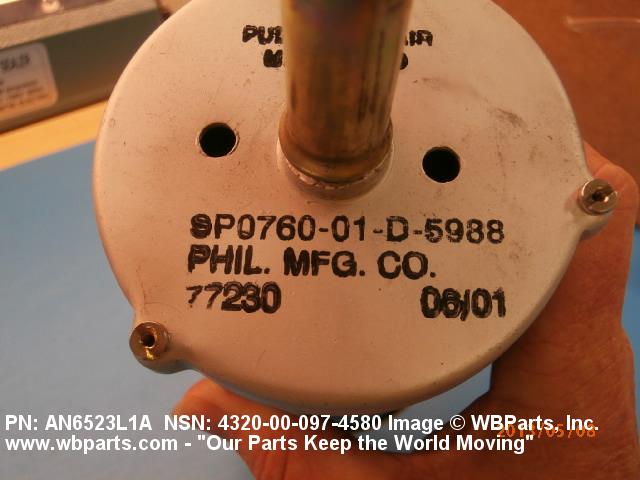

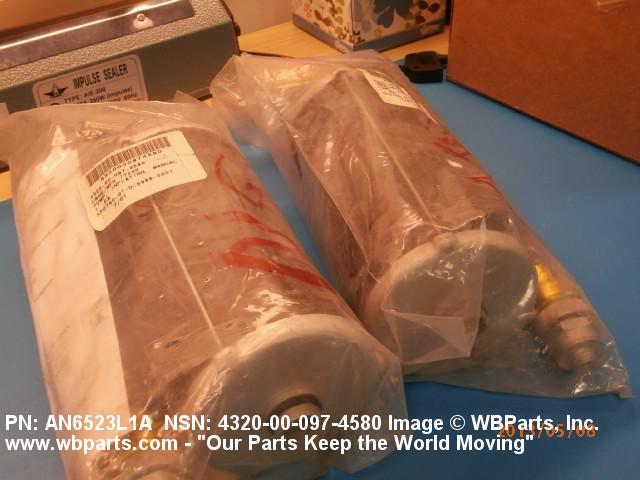

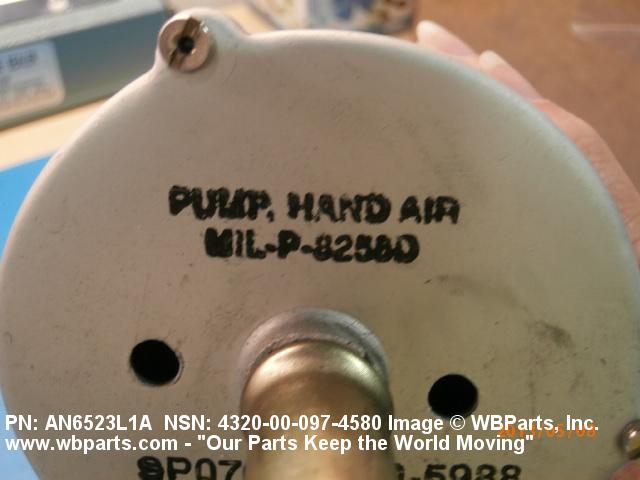

Drawings & Photos | NSN 4320-00-097-4580

Part Number	Request Date	QTY	Origin
4320-00-097-4580	2024-08-235	222	DIBBS
4320-00-097-4580	2024-04-120	166	DIBBS
4320-00-097-4580	2024-04-115	88	DIBBS
4320-00-097-4580	2023-11-319	53	DIBBS
4320-00-097-4580	2022-12-363	88	DIBBS
4320-00-097-4580	2022-07-209	42	DIBBS
4320-00-097-4580	2021-01-14	185	DIBBS
4320-00-097-4580	2020-11-309	1	US
4320-00-097-4580	2020-04-120	104	DIBBS
4320-00-097-4580	2020-04-106	1	IT
4320-00-097-4580	2020-04-100	1	US
4320-00-097-4580	2019-01-23	1	EG
4320-00-097-4580	2015-05-139	301	DIBBS
4320-00-097-4580	2015-02-47	195	DIBBS
4320-00-097-4580	2014-07-212	135	DIBBS
4320-00-097-4580	2014-05-133	143	DIBBS
4320-00-097-4580	2014-01-14	94	DIBBS
4320-00-097-4580	2013-10-304	92	DIBBS
4320-00-097-4580	2013-05-142	88	DIBBS
4320-00-097-4580	2013-05-121	2	United States
MILP8258	2013-05-121	2	United States
4320-00-097-4580	2012-06-165	95	DIBBS
MILP8258	2012-05-140	2	US
4320-00-097-4580	2012-03-66	166	DIBBS
4320-00-097-4580	2011-02-40	96	DIBBS
4320-00-097-4580	2010-09-257	112	DIBBS
4320-00-097-4580	2009-10-299	234	DIBBS
4320-00-097-4580	2009-08-218	141	DIBBS
4320-00-097-4580	2008-01-16	233	DIBBS
4320-00-097-4580	2008-01-15	233	DIBBS
4320-00-097-4580	2007-08-228	411	DIBBS
MILP8258	2007-03-85	22	US

Cross Reference | NSN 4320-00-097-4580

Part Number	Cage Code	Manufacturer
AN6523L1A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN6523L1A	94120	U S DIVERS CO INC DBA FOREIGN PARENT IS AQUALUNG
MIL-P-8258	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4320-00-097-4580

Compare

Related Products | NSN 4320-00-097-4580

4320-00-097-5902, 4320-00-097-5913, 4320-00-097-5917, 4320-00-097-5921, 4320-00-097-5934

Technical Data | NSN 4320-00-097-4580

Characteristic	Specifications
OPERATION METHOD	HAND
ACTION TYPE	SINGLE
CYLINDER QUANTITY	1
CYLINDER MATERIAL	PLASTIC, PHENOLIC

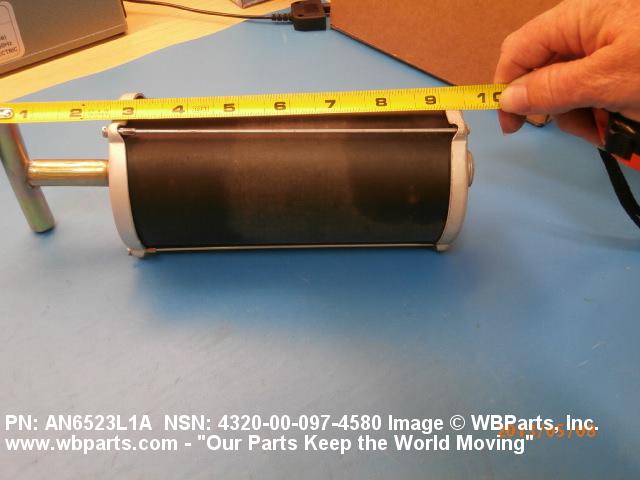

CYLINDER LENGTH	10.000 INCHES NOMINAL
CYLINDER INSIDE DIAMETER	2.750 INCHES NOMINAL
OUTLET END CONNECTION TYPE	THREADED
THREAD SIZE	0.812-20
SCREW THREAD SERIES DESIGNATOR	UNEF
THREAD LOCATION	EXTERNAL
HOSE	INCLUDED
QUANTITY	1
OVERALL LENGTH	9.500 INCHES NOMINAL
END CONNECTION TYPE	THREADED
END CONNECTION THREAD SIZE	0.812-20
END CONNECTION THREAD SERIES DESIGNATOR	UNEF
END CONNECTION THREAD LOCATION	EXTERNAL
FOOT HOLDER CONSTRUCTION	FOLDING
FOLDING HANDLE	NOT INCLUDED
SPECIAL FEATURES	EQUIPED W/ADAPTERS FOR REDUCING THE SIZE OF THE HOSE END CONNECTION TO 1/2-14 NS-2A THD SIZE OR CHANGE THE TYPE OF CONNECTION TO SNAP-ON TYPE END CONNECTION
NONDEFINITIVE SPEC/STD DATA	3 TYPE
III FSC APPLICATION DATA	LIFE RAFT,INFLATABLE
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-P-8258

Restrictions/Controls & Freight Information | NSN 4320-00-097-4580

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	127940	PUMPS HND/WNDML NOI,I/S
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	594	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4320-00-097-4580

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
