NSN 4320-00-005-4959 S404HB0127, S404HD, S-404HD
Product Details | LIQUID PUMP HOUSING
4320-00-005-4959 A complete enclosure which protects the internal components of a PUMP, (as modified). It may or may not include the intake and outlet ports of the pump. For housings which enclose only a portion of the pump, see HOUSING SECTION, LIQUID PUMP.20216500058Aircraft Hydraulic, Vacuum, and De-icing System Components43200020Power and Hand Pumps
Part Alternates: S404HB0127, S404HD, S-404HD, S404HD0713, S404HDAP, S-404HD-AP, 4320-00-005-4959, 00-005-4959, 4320000054959, 000054959
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 09 JUN 1972 | 00-005-4959 | 32557 ( HOUSING, LIQUID PUMP ) |

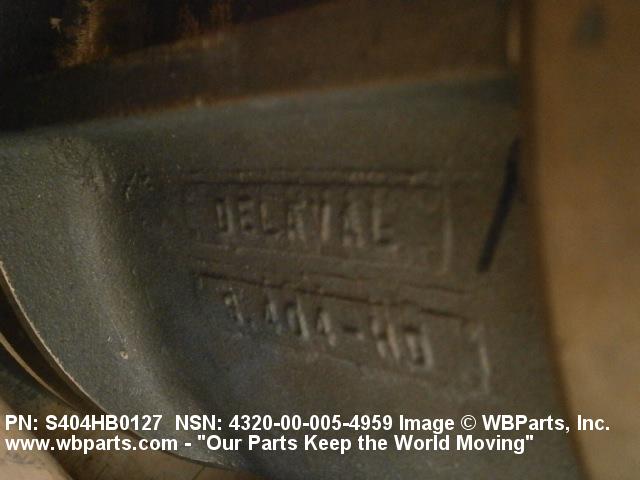

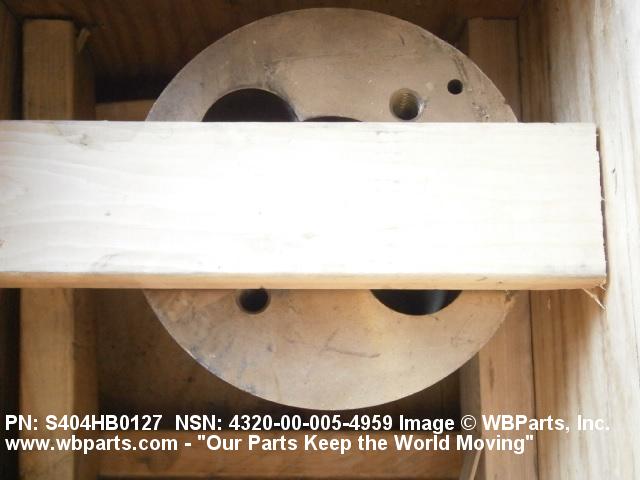

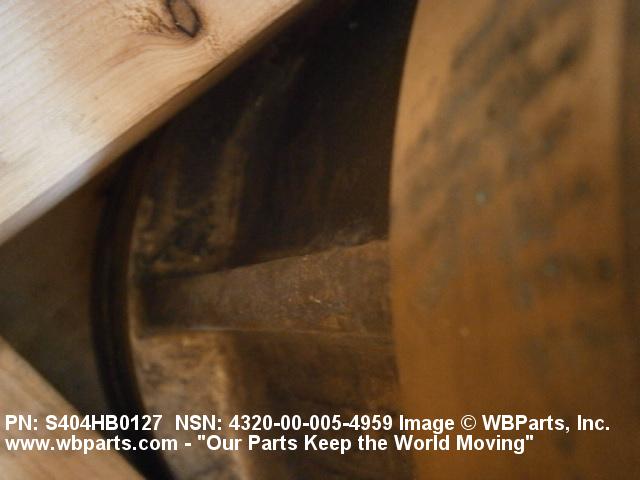

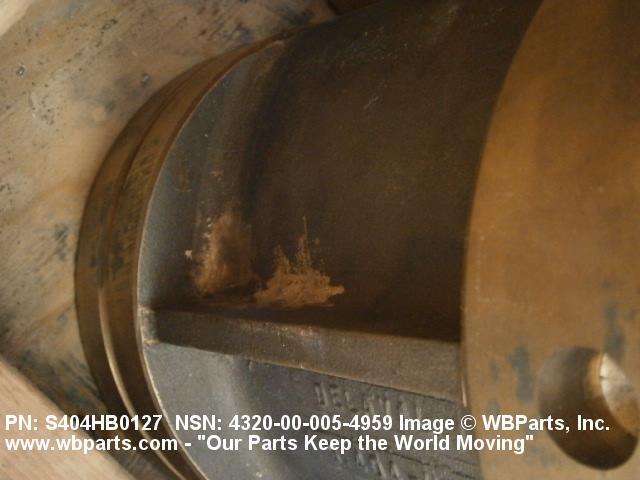

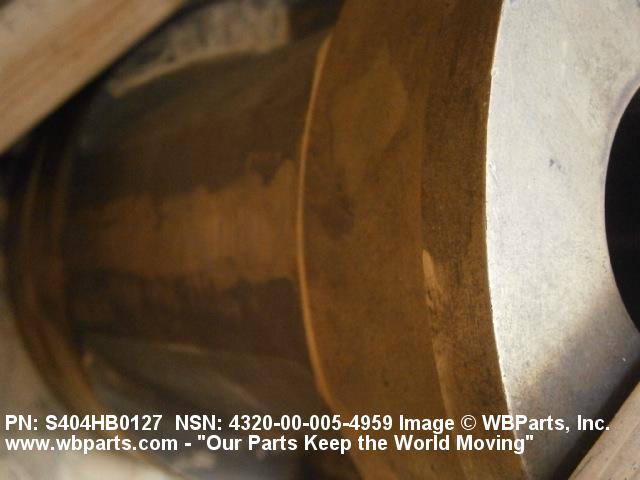

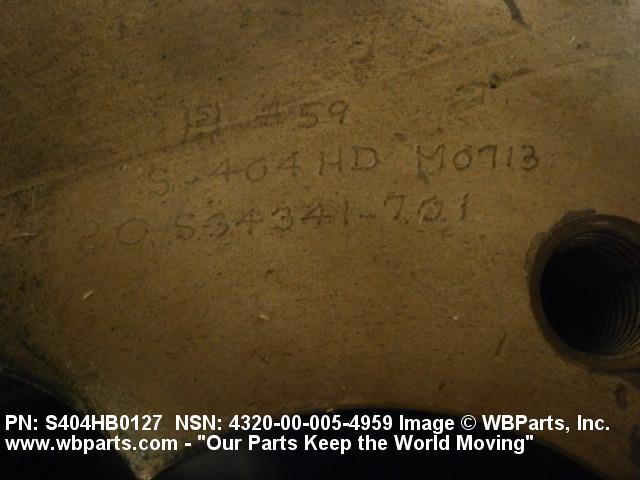

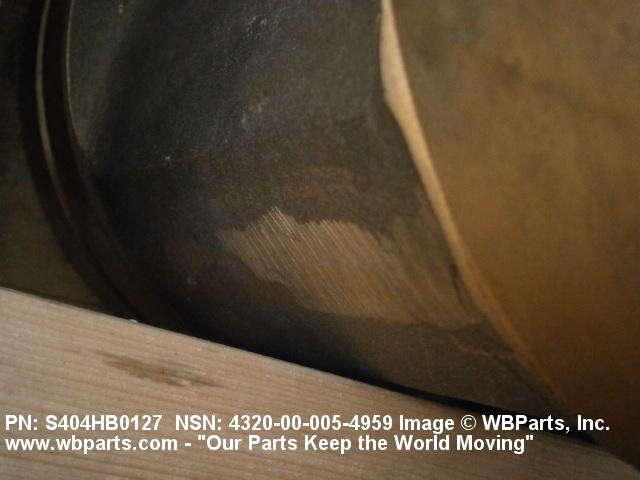

Drawings & Photos | NSN 4320-00-005-4959
Demand History | NSN 4320-00-005-4959
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-00-005-4959 | 2024-08-229 | 1 | US |
| 4320-00-005-4959 | 2012-02-44 | 1 | United States |
Cross Reference | NSN 4320-00-005-4959
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S-404HD | 16712 | SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC. |
| S-404HD | 59180 | IMO INDUSTRIES INC. DBA IMO PUMP DIVISION |
| S-404HD-AP | 1T943 | ACME PRODUCTS & ENGINEERING INC |
| S404HB0127 | 59180 | IMO INDUSTRIES INC. DBA IMO PUMP DIVISION |
| S404HD0713 | 16712 | SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC. |
| S404HD0713 | 59180 | IMO INDUSTRIES INC. DBA IMO PUMP DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-00-005-4959
Technical Data | NSN 4320-00-005-4959
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| PUMP DESIGN CONTROL ACTIVITY | 16712 |
| SPECIAL FEATURES | O/A LG 12.000 IN.; OD OF FLANGE FIRST END 9.505 IN.;FLANGE LG 0.625 IN.; OD FLANGE OTHER END 8.997 IN.; FLANGE LG 2.625 IN.; 4.004 IN. LARGER ID DIMINISHED TO 2.404 IN. SMALLER ID ON TWO SIDES; ONE O-RING GROOVE ON OTHER END; FIRST END CONTAINS ONE 0.375 IN. DRILLED THRU HOLE AND TWO 0.750-10 UNC THD HOLES |
Restrictions/Controls & Freight Information | NSN 4320-00-005-4959
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-005-4959
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
