NSN 4310-01-114-3009 62606, 01-114-3009, 011143009
Product Details | PISTON RING
4310-01-114-3009 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: 62606, 4310-01-114-3009, 01-114-3009, 4310011143009, 011143009
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 16 JUN 1981 | 01-114-3009 | 11459 ( RING, PISTON ) |

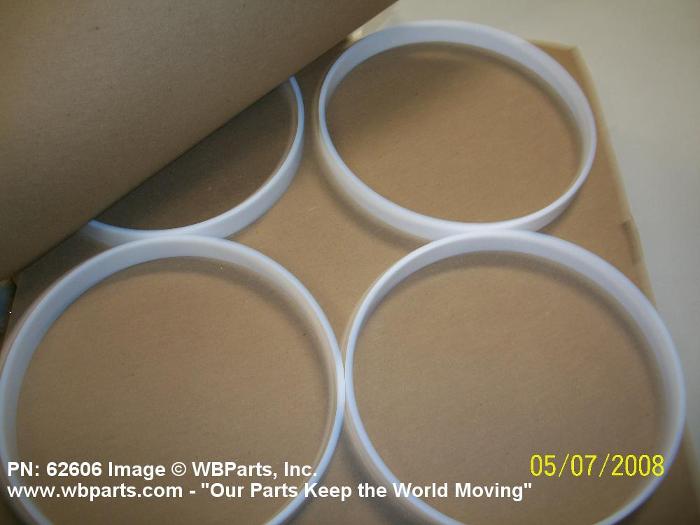

Drawings & Photos | NSN 4310-01-114-3009
Demand History | NSN 4310-01-114-3009
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4310-01-114-3009 | 2022-12-342 | 50 | United States |
| 4310-01-114-3009 | 2022-12-342 | 100 | United States |
| 4310-01-114-3009 | 2021-09-264 | 10 | Greece |
| 4310-01-114-3009 | 2021-01-27 | 2 | United States |
| 4310-01-114-3009 | 2019-07-197 | 100 | United States |
| 4310-01-114-3009 | 2018-10-281 | 5 | United States |
| 4310-01-114-3009 | 2018-07-204 | 1 | United States |
| 4310-01-114-3009 | 2018-03-67 | 9 | United States |
| 4310-01-114-3009 | 2017-08-235 | 20 | South Korea |
| 4310-01-114-3009 | 2016-12-357 | 1554 | DIBBS |
| 4310-01-114-3009 | 2016-11-318 | 441 | DIBBS |
| 4310-01-114-3009 | 2016-10-278 | 12 | Taiwan |
| 4310-01-114-3009 | 2016-10-278 | 740 | DIBBS |
| 4310-01-114-3009 | 2016-06-158 | 23 | DIBBS |
| 4310-01-114-3009 | 2016-03-63 | 447 | DIBBS |
| 4310-01-114-3009 | 2016-02-52 | 447 | DIBBS |
| 4310-01-114-3009 | 2015-04-107 | 529 | DIBBS |
| 4310-01-114-3009 | 2015-04-104 | 529 | US |
| 4310-01-114-3009 | 2015-04-96 | 529 | DIBBS |
| 4310-01-114-3009 | 2015-01-19 | 301 | DIBBS |
| 4310-01-114-3009 | 2014-05-139 | 502 | DIBBS |
| 4310-01-114-3009 | 2013-11-308 | 67 | DIBBS |
| 4310-01-114-3009 | 2012-05-142 | 338 | DIBBS |
| 4310-01-114-3009 | 2011-08-213 | 179 | DIBBS |
| 4310-01-114-3009 | 2011-06-164 | 208 | DIBBS |
| 4310-01-114-3009 | 2011-04-118 | 20 | Turkey |
| 4310-01-114-3009 | 2011-04-104 | 20 | Turkey |
| 4310-01-114-3009 | 2011-02-40 | 160 | DIBBS |
| 4310-01-114-3009 | 2011-01-24 | 20 | PK |
| 4310-01-114-3009 | 2011-01-24 | 328 | DIBBS |
| 4310-01-114-3009 | 2011-01-17 | 20 | Turkey |
| 4310-01-114-3009 | 2010-12-362 | 20 | Turkey |
| 4310-01-114-3009 | 2010-12-354 | 255 | DIBBS |
| 4310-01-114-3009 | 2010-11-305 | 126 | DIBBS |
| 4310-01-114-3009 | 2010-06-156 | 20 | Colombia |
| 4310-01-114-3009 | 2009-02-35 | 294 | DIBBS |
| 4310-01-114-3009 | 2008-12-338 | 496 | DIBBS |
| 4310-01-114-3009 | 2007-03-71 | 327 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4310-01-114-3009
Related Products | NSN 4310-01-114-3009
Technical Data | NSN 4310-01-114-3009
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | ABEX CORP,PUMP MODEL HPS1-V-3-03 |
Restrictions/Controls & Freight Information | NSN 4310-01-114-3009
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126700 | PISTON RINGS,IRON |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-01-114-3009
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
