Product Details | PISTON PIN

4310-00-967-4743 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps

Part Alternates: 62F69, 4310-00-967-4743, 00-967-4743, 4310009674743, 009674743

Pumps and Compressors | Compressors and Vacuum Pumps

Supply Group (FSG) NSN Assign. NIIN
43 01 JAN 1962 00-967-4743

Drawings & Photos | NSN 4310-00-967-4743


Cross Reference | NSN 4310-00-967-4743

Part Number Cage Code Manufacturer
62F69 24047 COOPER INDUSTRIES INC DBA COOPER TOOLS
62F69 6X081 COOPER INDUSTRIES INDUSTRIAL MACHINERY DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4310-00-967-4743

Technical Data | NSN 4310-00-967-4743

Characteristic Specifications
MATERIAL STEEL
METALLIC HARDNESS RATING NOT RATED
CASEHARDENING INDICATOR NOT CASEHARDENED

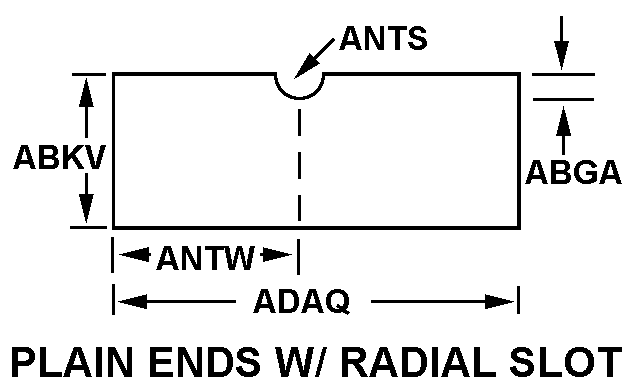

BODY STYLE 4A PLAIN ENDS W/RADIAL SLOT
GROOVE DEPTH 0.0781 INCHES NOMINAL
OUTSIDE DIAMETER 1.28100 INCHES NOMINAL
BODY LENGTH 5.3750 INCHES NOMINAL
RADIAL GROOVE RADIUS 0.438 INCHES NOMINAL
DISTANCE FROM END TO SLOT CENTER 2.688 INCHES NOMINAL
BORE STYLE 7 STRAIGHT-THRU BORE
BORE DIAMETER 0.8750 INCHES NOMINAL
SPECIAL FEATURES LOCKING SLOT

Restrictions/Controls & Freight Information | NSN 4310-00-967-4743

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4310-00-967-4743

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
