NSN 4310-00-844-6237 M0DEL310, 310, 00-844-6237
Product Details | RECIPROCATING COMPRESSOR
4310-00-844-6237 A positive displacement compressor designed to compress air or gas from an initial intake pressure to a higher discharge pressure by means of reciprocating piston(s) in cylinder(s). It is designed to be driven by an independent power source, such as an electric motor, gasoline or diesel engine, or the like. It does not include the prime mover, air storage tank, and the like. It may include various peripheral components, such as drive pulley, unloader, and the like.
Part Alternates: M0DEL310, 310, 4310-00-844-6237, 00-844-6237, 4310008446237, 008446237
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1962 | 00-844-6237 | 03815 ( COMPRESSOR, RECIPROCATING ) |
Drawings & Photos | NSN 4310-00-844-6237
Demand History | NSN 4310-00-844-6237
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 310 | 2021-08-242 | 1 | United States |
| 310 | 2017-05-132 | 60 | United States |
| 310 | 2015-03-76 | 20 | TH |
| 310 | 2009-10-300 | 100 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-844-6237
Technical Data | NSN 4310-00-844-6237
| Characteristic | Specifications |
|---|---|
| GAS FOR WHICH DESIGNED | AIR |
| DISCHARGE FLOW RATE | 10.000 CUBIC FEET PER MINUTE |
| DISCHARGE PRESSURE | 200.000 POUNDS PER SQUARE INCH GAGE |
| COMPRESSOR SPEED AT RATED CAPACITY IN RPM | 300.0 |
| COOLING SYSTEM DESIGN | SINGLE |
| COMPRESSED GAS COOLING MEDIUM | AIR |
| GAS COOLING EQUIPMENT TYPE | AIR TYPE AFTERCOOLER |
| COMPRESSOR COOLING MEDIUM | AIR |
| UNLOADER TYPE | AUTOMATIC |
| RECIPROCATING COMPRESSOR DESIGN | SINGLE ACTING |
| CYLINDER QUANTITY | 2 |

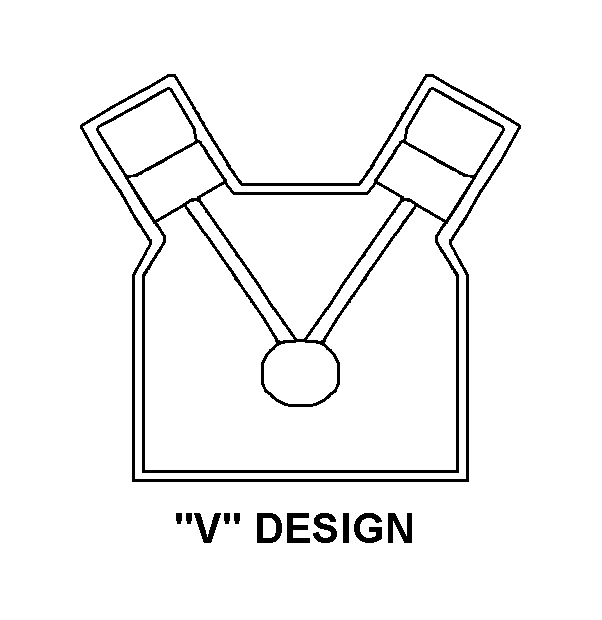

| CYLINDER ARRANGEMENT STYLE | 3 V DESIGN |
| STAGE QUANTITY | 2 |
| INTAKE CONNECTION QUANTITY | 1 |
| INTAKE CONNECTION TYPE | THREADED FEMALE |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED FEMALE |
| DRIVE CONNECTION TYPE | MULTISTRAND V-BELT |
| TEMP RATING PER FUNCTION | NOT RATED |
| MANUFACTURERS CODE | 49576 |
| DESIGN CONTROL REFERENCE | 310 |
Restrictions/Controls & Freight Information | NSN 4310-00-844-6237
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 118100 | COMPRESSORS, AIR, NOI, OR AIR ENDS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 634 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-844-6237
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
