NSN 4310-00-585-0511 1121225, 11212-25, KC2
Product Details | RECIPROCATING VACUUM PUMP UNIT
4310-00-585-0511 An assembled unit consisting of a commonly mounted reciprocating vacuum pump(s), prime mover(s), and the necessary components to provide for a complete operation. It may include a vacuum storage tank(s).
Part Alternates: 1121225, 11212-25, KC2, 4310-00-585-0511, 00-585-0511, 4310005850511, 005850511
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-585-0511 | 29902 ( VACUUM PUMP UNIT, RECIPROCATING ) |
Drawings & Photos | NSN 4310-00-585-0511
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4310-00-585-0511
Related Products | NSN 4310-00-585-0511
Technical Data | NSN 4310-00-585-0511
| Characteristic | Specifications |
|---|---|
| PUMP QUANTITY | 1 |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| PUMP BODY MATERIAL | ANY ACCEPTABLE |
| BODY SURFACE TREATMENT | ENAMEL |
| VACUUM RATING | 2.0 TORR |
| SYSTEM DESIGN | NONCORROSIVE |
| SPECIFIC GAS FOR WHICH DESIGNED | AIR |
| PUMPING ELEMENT TYPE | PISTON |
| PUMP CYLINDER QUANTITY | 2 |

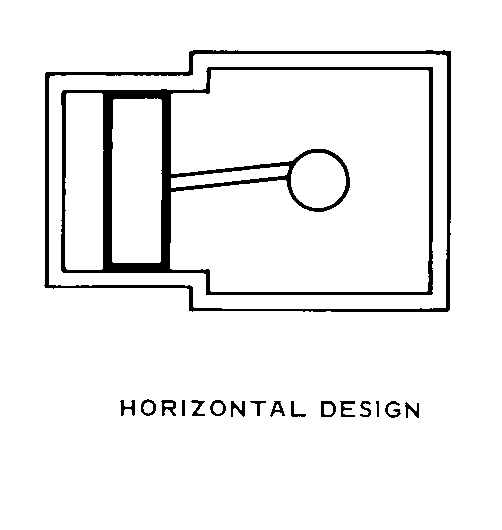

| CYLINDER ARRANGEMENT STYLE | 2 HORIZONTAL DESIGN |
| STAGE QUANTITY | 2 |
| COOLING MEDIUM | AIR |
| INTAKE CONNECTION QUANTITY | 1 |
| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.000-11-1/2 NPT |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED INTERNAL |
| DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.000-11-1/2 NPT |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 115.0 |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE |
| CURRENT RATING IN AMPS | 5.8 |
| BRAKE HORSEPOWER REQUIRED | 0.250 |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 755.0 |
| AIR DISPLACEMENT RATE | 2.0 CUBIC FEET PER MINUTE IN FREE AIR |
| MOUNTING TYPE | BASE |
| DRIVE CONNECTION TYPE | SINGLE STRAND V-BELT |
| CONTROL DEVICE TYPE | AUTOMATIC START-STOP |
| OVERALL HEIGHT | 15.500 INCHES NOMINAL |
| OVERALL LENGTH | 16.250 INCHES NOMINAL |
| OVERALL WIDTH | 10.500 INCHES NOMINAL |
| FEATURES PROVIDED | FUNGUS RESISTANT TREATMENT |
| MANUFACTURERS CODE | 33781 |
| DESIGN CONTROL REFERENCE | KC2 |
Restrictions/Controls & Freight Information | NSN 4310-00-585-0511
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-585-0511
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | V | The current standard price has been validated.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
