NSN 4310-00-555-4202 SMS5014B, SMS-5014B, 5014B
Product Details | PISTON PIN
4310-00-555-4202 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: SMS5014B, SMS-5014B, 5014B, 200103JPC30, 3287124PC30, 4310-00-555-4202, 00-555-4202, 4310005554202, 005554202
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1961 | 00-555-4202 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 4310-00-555-4202
Cross Reference | NSN 4310-00-555-4202
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200103JPC30 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 3287124PC30 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 5014B | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 5014B | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| SMS-5014B | 57140 | SALEM MANUFACTURING AND SALES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-555-4202
Technical Data | NSN 4310-00-555-4202
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-890, CLASS AC |
| METALLIC HARDNESS RATING | 52.0 NOMINAL ROCKWELL C |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| BODY STYLE | 5C CHAMFERED ENDS |
| OUTSIDE DIAMETER | 2.24900 INCHES MINIMUM AND 2.24950 INCHES MAXIMUM |
| BODY LENGTH | 4.1250 INCHES NOMINAL |
| END CHAMFER ANGLE IN DEG | 45.0 |
| BORE STYLE | 7 STRAIGHT-THRU BORE |
| BORE DIAMETER | 1.2500 INCHES NOMINAL |

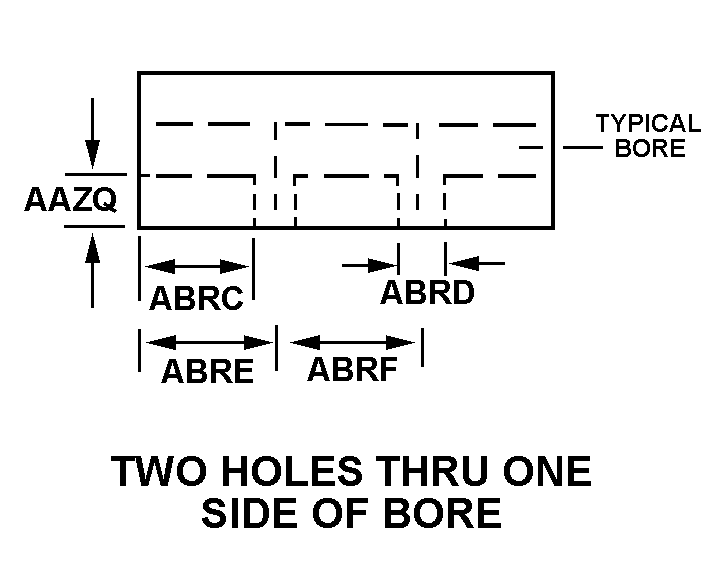

| HOLE ARRANGEMENT STYLE | 2 TWO HOLES THRU ONE SIDE OF BORE |
