NSN 4310-00-374-3058 AC10492, 00-374-3058, 003743058
Product Details | PISTON PIN
4310-00-374-3058 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: AC10492, 4310-00-374-3058, 00-374-3058, 4310003743058, 003743058
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1961 | 00-374-3058 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 4310-00-374-3058
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-374-3058
Technical Data | NSN 4310-00-374-3058
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, AISI/SAE 1016 |
| METALLIC HARDNESS RATING | 60.0 MINIMUM ROCKWELL C AND 63.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | CASEHARDENED |
| BODY STYLE | 21A CHAMFERED ENDS W/END SLOT AND RADIAL SLOT |
| SLOT DEPTH | 0.0625 INCHES NOMINAL |
| GROOVE DEPTH | 0.1249 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM |
| SLOT WIDTH | 0.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.99980 INCHES MINIMUM AND 1.00000 INCHES MAXIMUM |
| BODY LENGTH | 4.4375 INCHES NOMINAL |
| RADIAL GROOVE RADIUS | 0.219 INCHES NOMINAL |
| DISTANCE FROM END TO SLOT CENTER | 2.219 INCHES NOMINAL |
| END CHAMFER ANGLE IN DEG | 45.0 |

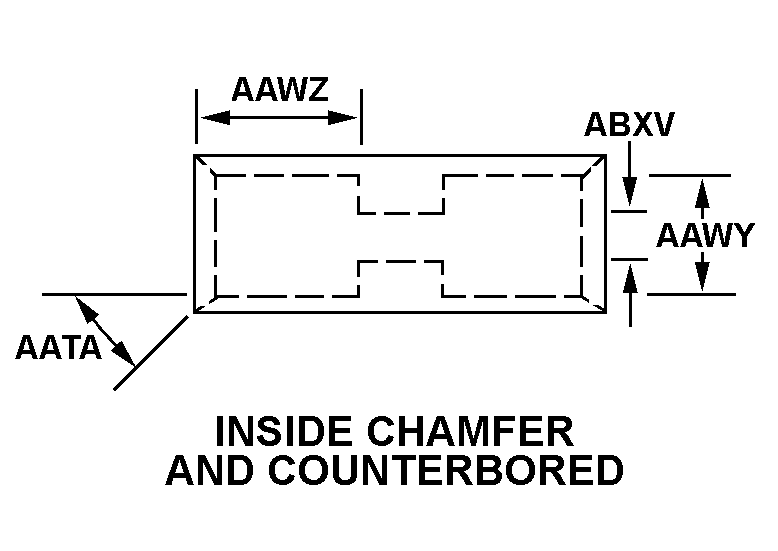

| BORE STYLE | 8 INSIDE CHAMFER AND COUNTERBORED |
| COUNTERBORE DIAMETER | 0.625 INCHES NOMINAL |
| COUNTERBORE DEPTH | 1.750 INCHES NOMINAL |
| BORE DIAMETER | 0.3750 INCHES NOMINAL |
| COUNTERSINK ANGLE IN DEG | 45.0 |
| III FSC APPLICATION DATA | AIR COMPRESSOR |
| MANUFACTURERS CODE | 35301 |
| DESIGN CONTROL REFERENCE | AC10492 |
Restrictions/Controls & Freight Information | NSN 4310-00-374-3058
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-374-3058
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
