NSN 4310-00-367-2915 8002911, 800291-1, 00-367-2915
Product Details | RECIPROCATING VACUUM PUMP UNIT
4310-00-367-2915 An assembled unit consisting of a commonly mounted reciprocating vacuum pump(s), prime mover(s), and the necessary components to provide for a complete operation. It may include a vacuum storage tank(s).
Part Alternates: 8002911, 800291-1, 4310-00-367-2915, 00-367-2915, 4310003672915, 003672915
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 27 FEB 1974 | 00-367-2915 | 29902 ( VACUUM PUMP UNIT, RECIPROCATING ) |
Drawings & Photos | NSN 4310-00-367-2915
Cross Reference | NSN 4310-00-367-2915
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 800291-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4310-00-367-2915
Related Products | NSN 4310-00-367-2915
Technical Data | NSN 4310-00-367-2915
| Characteristic | Specifications |
|---|---|
| PUMPING ELEMENT TYPE | PISTON |
| PUMP CYLINDER QUANTITY | 2 |

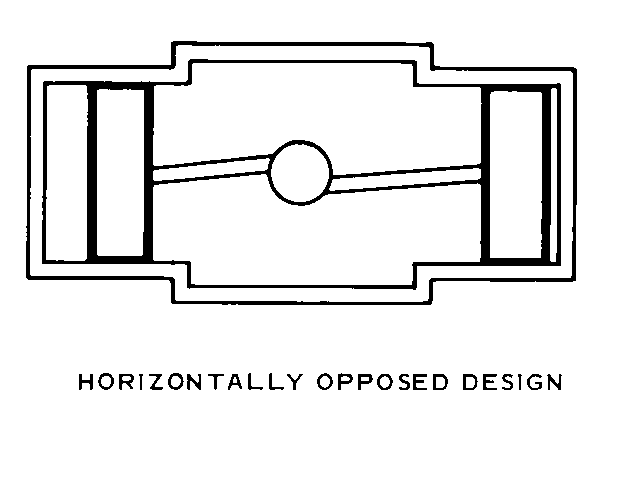

| CYLINDER ARRANGEMENT STYLE | 5 HORIZONTALLY OPPOSED DESIGN |
| STAGE QUANTITY | 2 |
| COOLING MEDIUM | AIR |
| INTAKE CONNECTION QUANTITY | 1 |
| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-18 NPT |
| DISCHARGE CONNECTION QUANTITY | 1 |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 115.0 AND 230.0 |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE |
| CURRENT RATING IN AMPS | 7.2 AND 3.6 |
| MOUNTING TYPE | BASE |
| OVERALL HEIGHT | 6.700 INCHES NOMINAL |
| OVERALL LENGTH | 16.500 INCHES NOMINAL |
| OVERALL WIDTH | 12.875 INCHES NOMINAL |
| MANUFACTURERS CODE | 96214 |
| DESIGN CONTROL REFERENCE | 800291-1 |
Restrictions/Controls & Freight Information | NSN 4310-00-367-2915
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-367-2915
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | CS | ANTI-SUBMARINEAIRCRAFT(S3) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
