Product Details | PISTON PIN
4310-00-277-7686 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: 62F40, 7710PC71, 4310-00-277-7686, 00-277-7686, 4310002777686, 002777686
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1961 | 00-277-7686 | 16414 ( PIN, PISTON ) |

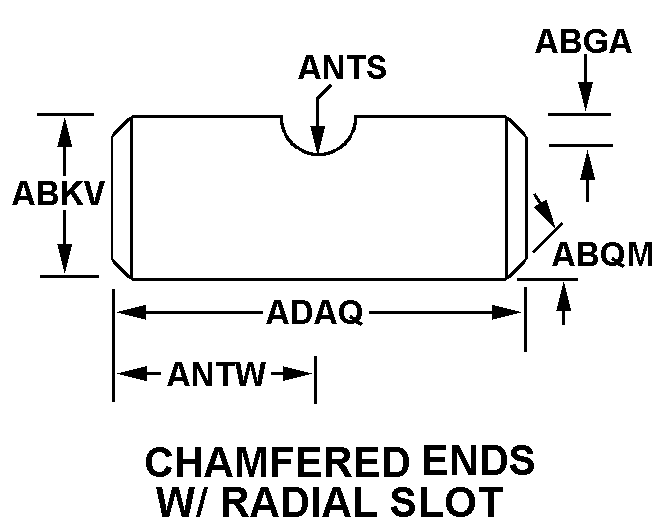

Drawings & Photos | NSN 4310-00-277-7686
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-277-7686
Technical Data | NSN 4310-00-277-7686
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-890, CLASS BS |
| METALLIC HARDNESS RATING | 23.0 MINIMUM ROCKWELL C AND 28.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| BODY STYLE | 7A CHAMFERED ENDS W/RADIAL SLOT |
| GROOVE DEPTH | 0.0781 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.88300 INCHES MINIMUM AND 0.88320 INCHES MAXIMUM |
| BODY LENGTH | 3.5000 INCHES NOMINAL |
| RADIAL GROOVE RADIUS | 0.250 INCHES NOMINAL |
| DISTANCE FROM END TO SLOT CENTER | 1.750 INCHES NOMINAL |
| END CHAMFER ANGLE IN DEG | 45.0 |
| BORE STYLE | 7 STRAIGHT-THRU BORE |
| BORE DIAMETER | 0.5937 INCHES NOMINAL |
| III FSC APPLICATION DATA | AIR COMPRESSOR |
