NSN 4310-00-270-3331 150570GPC153, 150-570GPC153, 150570HPC153
Product Details | PISTON PIN
4310-00-270-3331 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: 150570GPC153, 150-570GPC153, 150570HPC153, 150-570HPC153, 150570KPC153, 150-570KPC153, 150570PC153, 150-570PC153, 150570YPC153, 150-570YPC153, 150573GPC153, 150-573GPC153, 150573HPC153, 150-573HPC153, 150573KPC153, 150-573KPC153, 150573PC153, 150-573PC153, 150573YPC153, 150-573YPC153, 150586PC153, 150-586PC153, 30153, 30-153, 4310-00-270-3331, 00-270-3331, 4310002703331, 002703331
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-270-3331 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 4310-00-270-3331
Cross Reference | NSN 4310-00-270-3331
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 150-570GPC153 | 27235 | HARDIE-TYNES CO., INC. |
| 150-570HPC153 | 27235 | HARDIE-TYNES CO., INC. |
| 150-570KPC153 | 27235 | HARDIE-TYNES CO., INC. |
| 150-570PC153 | 27235 | HARDIE-TYNES CO., INC. |
| 150-570YPC153 | 27235 | HARDIE-TYNES CO., INC. |
| 150-573GPC153 | 27235 | HARDIE-TYNES CO., INC. |
| 150-573HPC153 | 27235 | HARDIE-TYNES CO., INC. |
| 150-573KPC153 | 27235 | HARDIE-TYNES CO., INC. |
| 150-573PC153 | 27235 | HARDIE-TYNES CO., INC. |
| 150-573YPC153 | 27235 | HARDIE-TYNES CO., INC. |
| 150-586PC153 | 27235 | HARDIE-TYNES CO., INC. |
| 30-153 | 27235 | HARDIE-TYNES CO., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-270-3331
Technical Data | NSN 4310-00-270-3331
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-890, CLASS AN |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

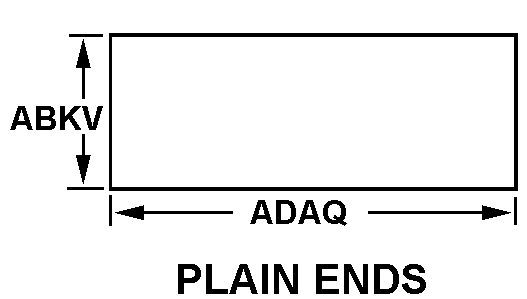

| BODY STYLE | 1B PLAIN ENDS |
| OUTSIDE DIAMETER | 2.37400 INCHES MINIMUM AND 2.37500 INCHES MAXIMUM |
| BODY LENGTH | 4.7500 INCHES NOMINAL |

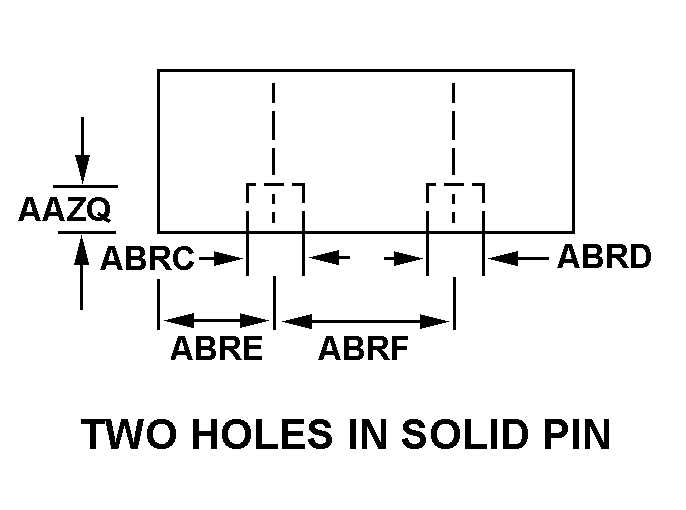

| HOLE ARRANGEMENT STYLE | 6 TWO HOLES IN SOLID PIN |
| HOLE DEPTH | 1.3500 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.188 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.188 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.813 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 3.1250 INCHES NOMINAL |
| SPECIAL FEATURES | HOLE IN CENTER OF PIN 0.383 IN. DIA; 1.350 IN. DEEP ROTATED 180 DEG FROM OTHER HOLES |
| III FSC APPLICATION DATA | AIR COMPRESSOR |
Restrictions/Controls & Freight Information | NSN 4310-00-270-3331
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-270-3331
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
