Product Details | RECIPROCATING VACUUM PUMP UNIT
4310-00-203-4724 An assembled unit consisting of a commonly mounted reciprocating vacuum pump(s), prime mover(s), and the necessary components to provide for a complete operation. It may include a vacuum storage tank(s).
Part Alternates: V235X1TYPE30, 4310-00-203-4724, 00-203-4724, 4310002034724, 002034724
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-203-4724 | 29902 ( VACUUM PUMP UNIT, RECIPROCATING ) |
Drawings & Photos | NSN 4310-00-203-4724
Cross Reference | NSN 4310-00-203-4724
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| V235X1TYPE30 | 30760 | INGERSOLL RAND CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4310-00-203-4724
Related Products | NSN 4310-00-203-4724
Technical Data | NSN 4310-00-203-4724
| Characteristic | Specifications |
|---|---|
| PUMP QUANTITY | 1 |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| PUMP BODY MATERIAL | IRON, CAST |
| BODY SURFACE TREATMENT | ENAMEL |
| VACUUM RATING | 736.6 TORR |
| SYSTEM DESIGN | NONCORROSIVE |
| SPECIFIC GAS FOR WHICH DESIGNED | AIR |
| PUMPING ELEMENT TYPE | PISTON |
| PUMP CYLINDER QUANTITY | 2 |

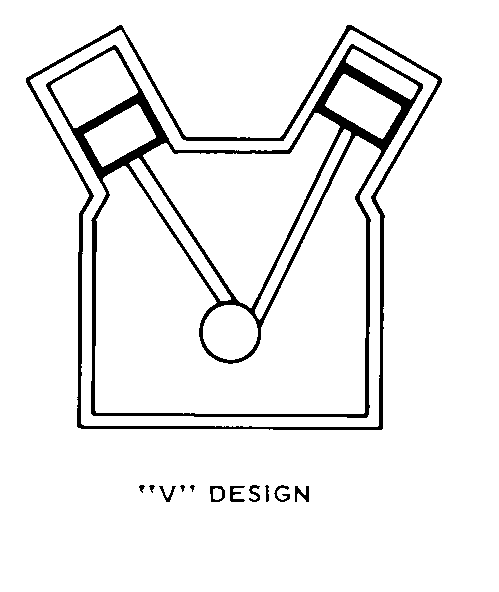

| CYLINDER ARRANGEMENT STYLE | 3 V DESIGN |
| STAGE QUANTITY | 1 |
| COOLING MEDIUM | AIR |
| INTAKE CONNECTION QUANTITY | 1 |
| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.000-11-1/2 NPT |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED INTERNAL |
| DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.000-11-1/2 NPT |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 230.0 |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE |
| CURRENT RATING IN AMPS | 3.2 |
| BRAKE HORSEPOWER REQUIRED | 1.000 |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 900.0 |
| AIR DISPLACEMENT RATE | 18.0 CUBIC FEET PER MINUTE IN FREE AIR |
| MOUNTING TYPE | BASE |
| DRIVE CONNECTION TYPE | MULTISTRAND V-BELT |
| OVERALL HEIGHT | 16.750 INCHES NOMINAL |
| OVERALL LENGTH | 37.625 INCHES NOMINAL |
| OVERALL WIDTH | 16.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 30760 |
| DESIGN CONTROL REFERENCE | V235X1TYPE30 |
