NSN 4310-00-175-6226 P35222, 35221, 3522-1
Product Details | RECIPROCATING COMPRESSOR UNIT
4310-00-175-6226 An assembled unit consisting of a commonly mounted reciprocating compressor(s) and a prime mover(s). For items with additional equipment which extends the function of the unit beyond the delivery of compressed air or gas, see PNEUMATIC TOOL AND COMPRESSOR OUTFIT, or more specific names, as applicable. Excludes AUXILIARY SET, ENGINE DRIVEN.
Part Alternates: P35222, 35221, 3522-1, 41061, 4106-1, 4310-00-175-6226, 00-175-6226, 4310001756226, 001756226
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 10 DEC 1971 | 00-175-6226 | 29301 ( COMPRESSOR UNIT, RECIPROCATING ) |
Drawings & Photos | NSN 4310-00-175-6226
Demand History | NSN 4310-00-175-6226
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 41061 | 2014-09-261 | 1 | South Africa |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4310-00-175-6226
Related Products | NSN 4310-00-175-6226
Technical Data | NSN 4310-00-175-6226
| Characteristic | Specifications |
|---|---|
| COMPRESSOR QUANTITY | 1 |
| DUTY CYCLE IN PERCENT | 100 |
| GAS FOR WHICH DESIGNED | AIR |
| DISCHARGE FLOW RATE | NOT RATED |
| DISCHARGE PRESSURE | NOT RATED |
| COMPRESSOR SPEED AT RATED CAPACITY IN RPM | NOT RATED |
| COOLING SYSTEM DESIGN | SINGLE |
| COMPRESSED GAS COOLING MEDIUM | AIR |
| COMPRESSOR COOLING MEDIUM | AIR |
| PRIME MOVER COOLING MEDIUM | AIR |
| MOUNTING TYPE | BASE |
| RECIPROCATING COMPRESSOR DESIGN | SINGLE ACTING |
| CYLINDER QUANTITY | 2 |

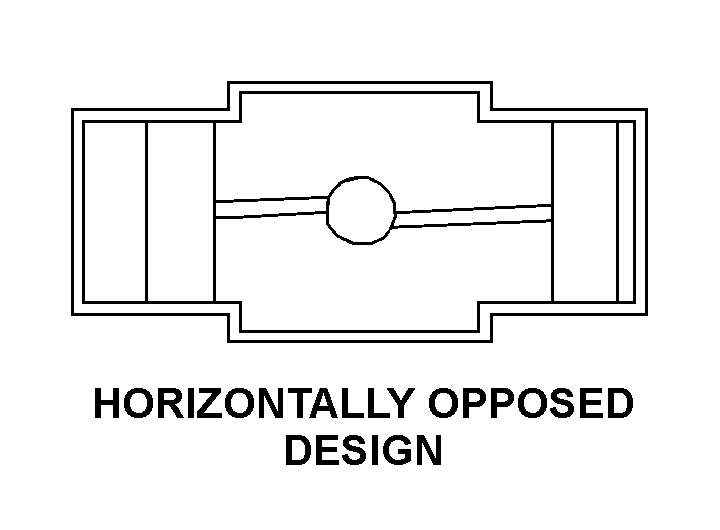

| CYLINDER ARRANGEMENT STYLE | 5 HORIZONTALLY OPPOSED DESIGN |
| STAGE QUANTITY | 1 |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC OR 230.0 AC |
| FREQUENCY IN HERTZ | 50.0 |
| PHASE | SINGLE |
| TEMP RATING PER FUNCTION | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4310-00-175-6226
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 118100 | COMPRESSORS, AIR, NOI, OR AIR ENDS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-175-6226
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
