NSN 4240-00-595-3031 KKB151TYPE1M0DELACLASS1SIZE42, 00-595-3031, 005953031
Product Details | INDUSTRIAL SAFETY BELT
4240-00-595-3031 An adjustable band of flexible material having means for connecting the ends designed to be worn on the person by workmen such as linemen, firemen, forestry workers and the like, which, when used with a safety strap or life line, affords support and protection against falling. Excludes BELT, AIRCRAFT SAFETY, LAP; and BELT, AIRCRAFT SAFETY, WAIST.
Part Alternates: KKB151TYPE1M0DELACLASS1SIZE42, 4240-00-595-3031, 00-595-3031, 4240005953031, 005953031
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Safety and Rescue Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 01 JAN 1963 | 00-595-3031 | 07996 ( BELT, SAFETY, INDUSTRIAL ) |
Drawings & Photos | NSN 4240-00-595-3031
Cross Reference | NSN 4240-00-595-3031
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KKB151TYPE1M0DELACLASS1SIZE42 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4240-00-595-3031
Technical Data | NSN 4240-00-595-3031
| Characteristic | Specifications |
|---|---|
| MATERIAL | LEATHER |

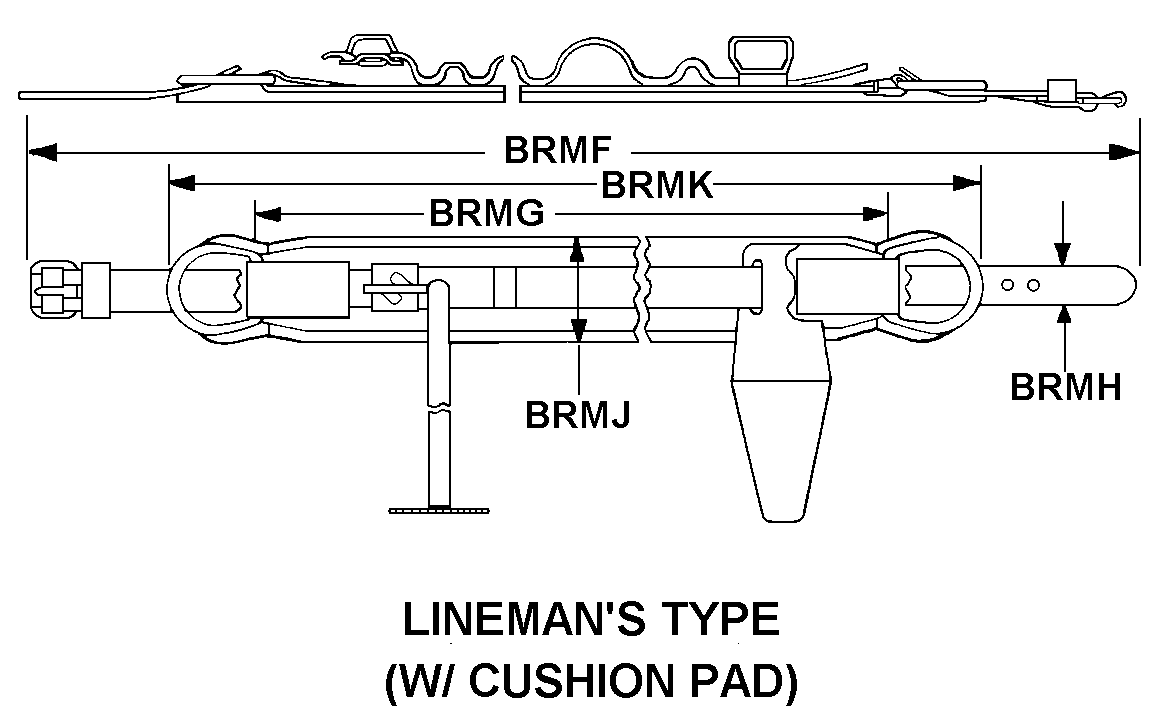

| STYLE DESIGNATOR | A2 LINEMANS TYPE |
| BODY BELT OVERALL LENGTH | 51.500 INCHES NOMINAL |
| DISTANCE BETWEEN D RINGS | 23.000 INCHES NOMINAL |
| BODY BELT WIDTH | 1.500 INCHES NOMINAL |
| CUSHION PAD WIDTH | 4.750 INCHES NOMINAL |
| CUSHION PAD LENGTH | ANY ACCEPTABLE |
| NONSPARKING HARDWARE | NOT INCLUDED |
| WAIST SIZE | 42 IN. WAIST SIZE |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND A MODEL AND 1 CLASS AND 42 SIZE |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | KKB151TYPE1M0DELACLASS1SIZE42 |
Restrictions/Controls & Freight Information | NSN 4240-00-595-3031
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 023340 | BELTS OR BELTING NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
