NSN 4240-00-032-0587 507051, 00-032-0587, 000320587
Product Details | INDUSTRIAL SAFETY BELT
4240-00-032-0587 An adjustable band of flexible material having means for connecting the ends designed to be worn on the person by workmen such as linemen, firemen, forestry workers and the like, which, when used with a safety strap or life line, affords support and protection against falling. Excludes BELT, AIRCRAFT SAFETY, LAP; and BELT, AIRCRAFT SAFETY, WAIST.
Part Alternates: 507051, 4240-00-032-0587, 00-032-0587, 4240000320587, 000320587
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Safety and Rescue Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 01 NOV 1972 | 00-032-0587 | 07996 ( BELT, SAFETY, INDUSTRIAL ) |

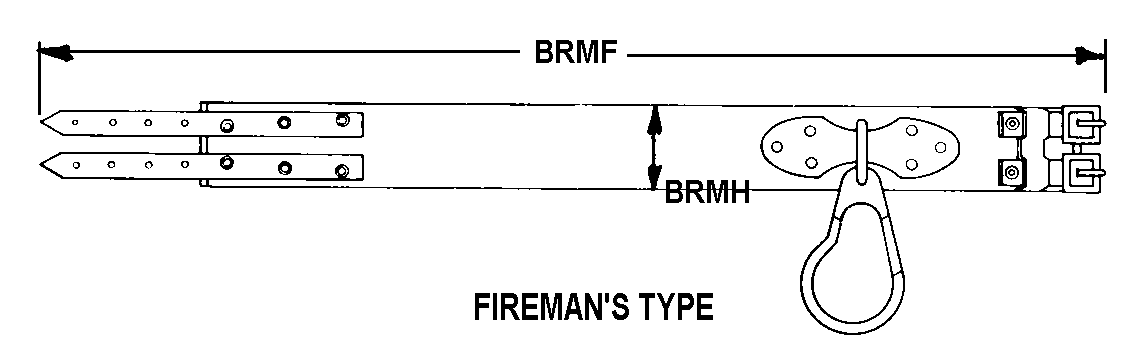

Drawings & Photos | NSN 4240-00-032-0587
Cross Reference | NSN 4240-00-032-0587
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 507051 | 86809 | MSA INC DBA MINE SAFETY FALL PROTECTION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4240-00-032-0587
Technical Data | NSN 4240-00-032-0587
| Characteristic | Specifications |
|---|---|
| MATERIAL | WEBBING, NYLON |
| STYLE DESIGNATOR | A3 FIREMANS TYPE |
| BODY BELT OVERALL LENGTH | 37.000 INCHES MINIMUM AND 49.000 INCHES MAXIMUM |
| NONSPARKING HARDWARE | NOT INCLUDED |
| MANUFACTURERS CODE | 86809 |
| DESIGN CONTROL REFERENCE | 507051 |
Restrictions/Controls & Freight Information | NSN 4240-00-032-0587
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 023340 | BELTS OR BELTING NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4240-00-032-0587
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
