Product Details | FIRE EXTINGUISHER

4210-01-574-6567 An automatic or hand operated device designed to discharge upon a fire. Automatic devices have heat, smoke or optical detectors. Device may or may not be charged but must contain all components necessary for discharge once filled with fire fighting agents or chemicals.

Part Alternates: 6487T72, 4210-01-574-6567, 01-574-6567, 4210015746567, 015746567

Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment

Supply Group (FSG) NSN Assign. NIIN
42 04 JUN 2009 01-574-6567

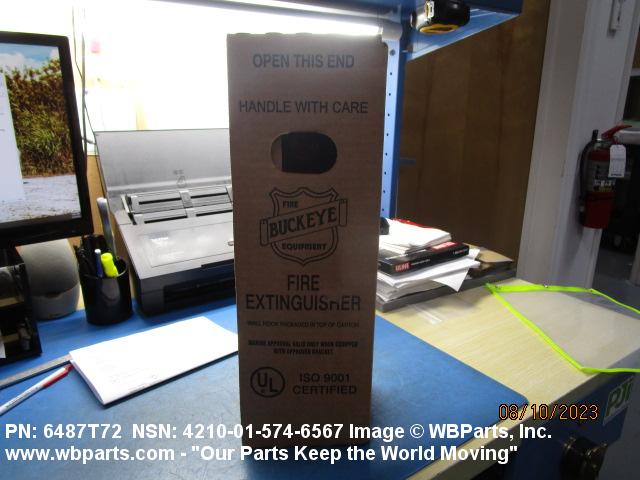

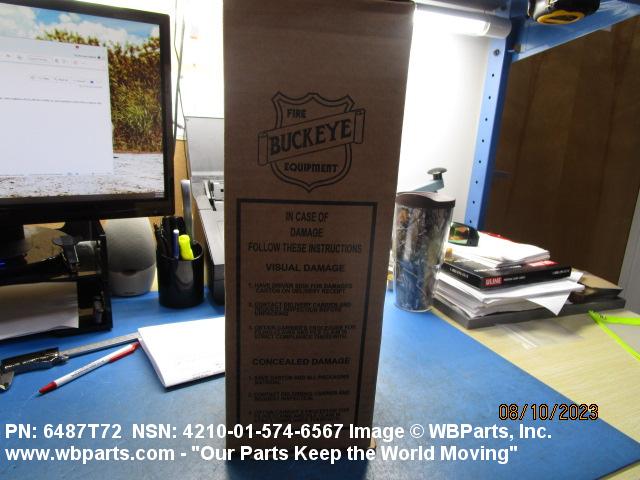

Drawings & Photos | NSN 4210-01-574-6567


Demand History | NSN 4210-01-574-6567

Part Number Request Date QTY Origin
4210-01-574-6567 2023-07-205 1 United States
4210-01-574-6567 2023-03-79 5 Portugal
4210-01-574-6567 2018-09-256 134 DIBBS
4210-01-574-6567 2018-02-46 300 DIBBS
4210-01-574-6567 2017-06-180 174 DIBBS
4210-01-574-6567 2016-10-304 223 DIBBS
4210-01-574-6567 2016-09-264 200 DIBBS
6487T72 2016-08-218 15 United Arab Emirates
6487T72 2016-08-217 15 US
6487T72 2016-08-217 15 United States
6487T72 2016-07-206 12 US
4210-01-574-6567 2016-07-201 38 DIBBS
4210-01-574-6567 2016-06-158 38 DIBBS
4210-01-574-6567 2016-01-07 128 DIBBS
4210-01-574-6567 2015-08-225 107 DIBBS
4210-01-574-6567 2015-08-214 107 DIBBS
4210-01-574-6567 2014-03-85 173 DIBBS
4210-01-574-6567 2013-12-346 97 DIBBS
4210-01-574-6567 2013-05-150 97 DIBBS
4210-01-574-6567 2012-06-154 0 DIBBS
4210-01-574-6567 2011-09-265 130 DIBBS
4210-01-574-6567 2011-05-133 152 DIBBS
4210-01-574-6567 2011-04-101 151 DIBBS
4210-01-574-6567 2011-03-67 55 DIBBS
4210-01-574-6567 2011-01-10 51 DIBBS
4210-01-574-6567 2010-12-340 44 DIBBS
4210-01-574-6567 2010-06-162 75 DIBBS

Cross Reference | NSN 4210-01-574-6567

Part Number Cage Code Manufacturer
6487T72 39428 MCMASTER-CARR SUPPLY COMPANY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4210-01-574-6567

Technical Data | NSN 4210-01-574-6567

Characteristic Specifications
DESIGN TYPE HAND
UNIT TYPE CHARGED
END ITEM IDENTIFICATION 8145-01-534-3597 MULTI-TEMP REFR CONT
SPECIAL FEATURES PAINTED RED;9 SEC DISCHARGE TIME;3.344 IN DIA X 14.750 IN HIGH;COMES WITH VEHICLE BRACKET
EXTINGUISHING AGENT DISCHARGE METHOD STORED PRESSURE
PART NAME ASSIGNED BY CONTROLLING AGENCY DRY CHEMICAL FIRE EXTINGUISHER
EXTINGUISHING AGENT FOR WHICH DESIGNED DRY CHEMICAL
CAPACITY RATING 2.5 POUNDS NOMINAL
CONTAINER MATERIAL STEEL

Restrictions/Controls & Freight Information | NSN 4210-01-574-6567

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeYInformation is in the Hazardous Materials Information System (HMIS)
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 069185 FIRE EXTINGUISHERS CHEMICAL
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 796 unknown
Originating Activity Code AJ U.S. Army Soldier's Biological and Chemical
Command
Natick, MA 01760
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling D Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo G Nonflammable compressed gas, UN class 2 (nonflammable gas label; Except: (1) oxygen which requires an oxidizer label, and (2) fluorine which requires poison and oxidizer labels)

Management | NSN 4210-01-574-6567

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
