NSN 4210-01-112-2347 10085970 , 12299527, 01-112-2347
Product Details | FIRE FIGHTING TUBE TO HOSE STRAIGHT ADAPTER
4210-01-112-2347 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the fire hose directly, or is unthreaded and designed to accommodate a fire hose. It is designed to joint a tube or tube fitting to a fire hose or fire hose fitting.
Part Alternates: 10085970 , 12299527, 4210-01-112-2347, 01-112-2347, 4210011122347, 011122347
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 30 APR 1981 | 01-112-2347 | 51067 ( ADAPTER, STRAIGHT, TUBE TO HOSE, FIRE FIGHTING ) |

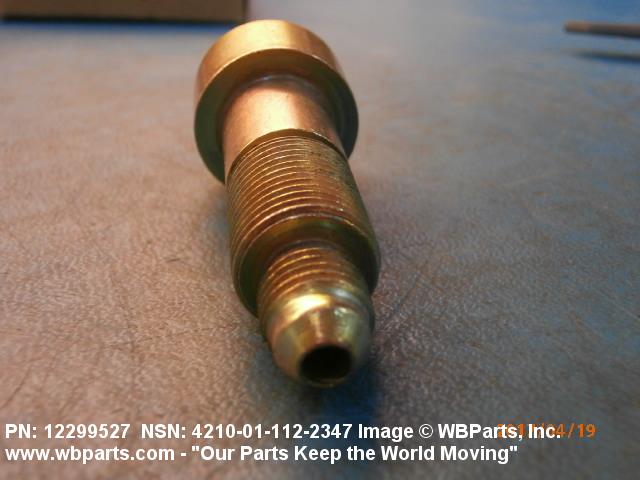

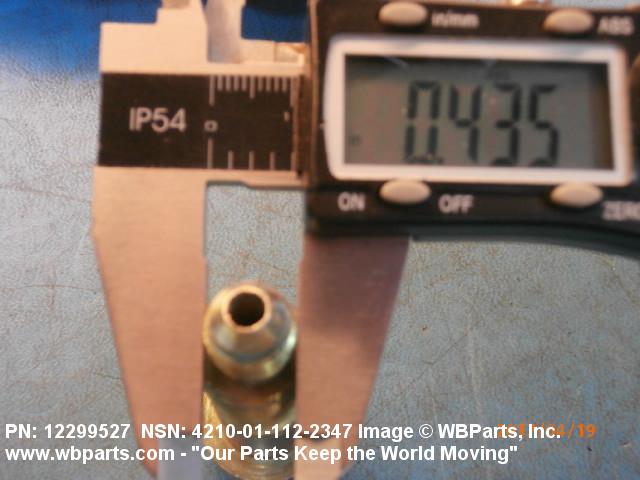

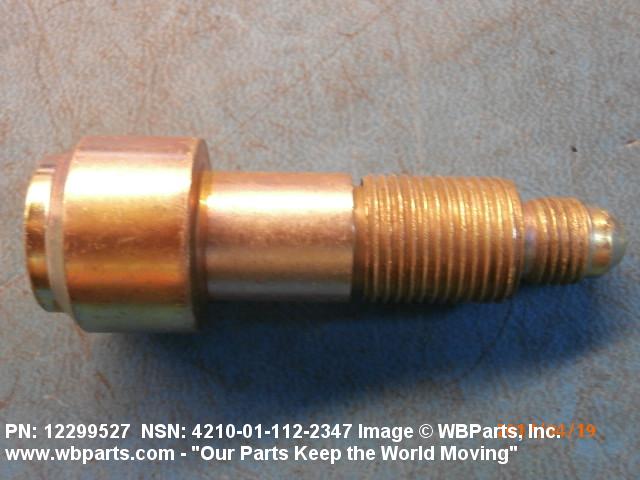

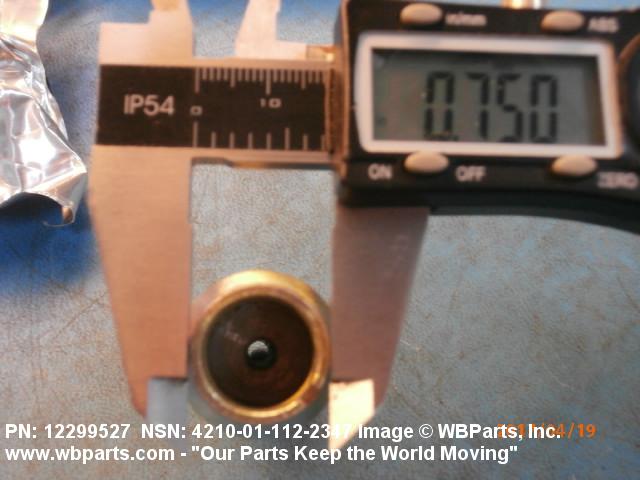

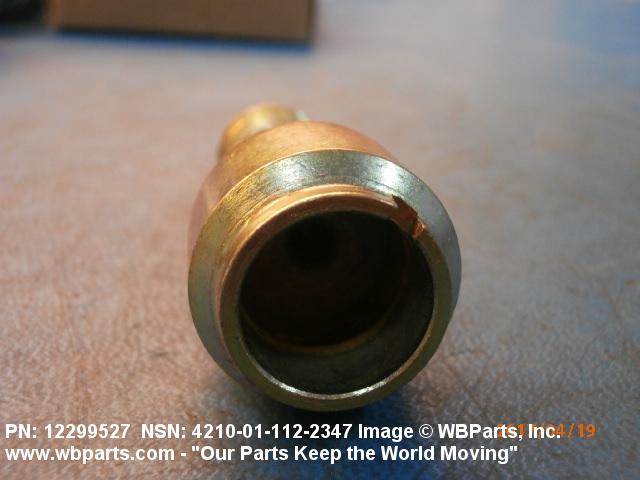

Drawings & Photos | NSN 4210-01-112-2347
Demand History | NSN 4210-01-112-2347
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4210-01-112-2347 | 2019-09-246 | 11 | DIBBS |
| 4210-01-112-2347 | 2019-09-245 | 44 | DIBBS |
| 4210-01-112-2347 | 2019-08-233 | 11 | DIBBS |
| 4210-01-112-2347 | 2019-06-170 | 26 | DIBBS |
| 4210-01-112-2347 | 2018-07-192 | 60 | DIBBS |
| 4210-01-112-2347 | 2017-04-96 | 21 | DIBBS |
| 4210-01-112-2347 | 2017-03-90 | 10 | us |
| 4210-01-112-2347 | 2017-03-72 | 21 | DIBBS |
| 4210-01-112-2347 | 2017-02-59 | 21 | DIBBS |
| 4210-01-112-2347 | 2013-06-167 | 19 | DIBBS |
| 4210-01-112-2347 | 2013-05-129 | 5 | DIBBS |
| 4210-01-112-2347 | 2013-04-114 | 5 | DIBBS |
Cross Reference | NSN 4210-01-112-2347
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12299527 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-01-112-2347
Related Products | NSN 4210-01-112-2347
Technical Data | NSN 4210-01-112-2347
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1015 OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END |
| CONNECTION STYLE | B64 FLARED 1ST END |
| SEAT ANGLE | 45.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END |
| THREAD CLASS | 20 1ST END |
| NOMINAL OVERALL LENGTH | 2.750 INCHES |
| SPECIAL FEATURES | USE ON 2350-01-091-5405 |
Restrictions/Controls & Freight Information | NSN 4210-01-112-2347
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 634 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4210-01-112-2347
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
