NSN 4210-01-012-7147 AS32P13A, MILT83303, MIL-T-83303
Product Details | FIRE FIGHTING TRUCK
4210-01-012-7147 Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.
Part Alternates: AS32P13A, MILT83303, MIL-T-83303, 4210-01-012-7147, 01-012-7147, 4210010127147, 010127147
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 16 NOV 1975 | 01-012-7147 | 03254 ( TRUCK, FIRE FIGHTING ) |
Drawings & Photos | NSN 4210-01-012-7147
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-01-012-7147
Related Products | NSN 4210-01-012-7147
Technical Data | NSN 4210-01-012-7147
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | AIRFIELD RAMP AND CRASH |
| EXTINGUISHING AGENT FOR WHICH DESIGNED | DRY CHEMICAL AND VAPORIZING LIQUID |
| CHEMICAL TANK QUANTITY | 2 |
| CHEMICAL TANK CAPACITY | 350.0 POUNDS |
| CHEMICAL TYPE | DRY AND BROMOCLOROD1FLOUROMETHANE |
| AERIAL LADDER | NOT INCLUDED |

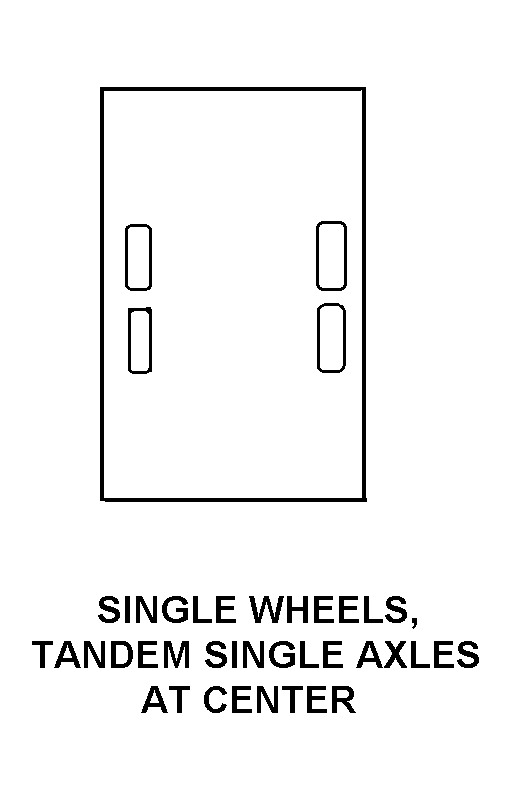

| WHEEL ARRANGEMENT STYLE | 4 SINGLE WHEELS, TANDEM SINGLE AXLES AT CENTER |
| FRONT WHEEL DRIVE FEATURE | INCLUDED |
| CHASSIS SIZE DESIGNATION | 4X4 |
| CHASSIS LOAD RATING | NOT RATED |
| WHEELBASE SIZE | 131.000 INCHES |
| CAB LOCATION | CONVENTIONAL |
| CAB DESIGN | CLOSED |
| GROSS WEIGHT RANGE | 7000.0 TO 10000.0 POUNDS |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| PRIME MOVER QUANTITY | 1 |
| CYLINDER QUANTITY | 8 |
| BRAKE POWER RATING | NOT RATED |
| ENGINE MANUFACTURER NAME | AMERICAN MOTORS CORP |
| ENGINE MODEL NUMBER | 360V8 |
| TRANSMISSION TYPE | AUTOMATIC |
| SPEED RANGE QUANTITY | 1 |
| FORWARD SPEED QUANTITY PER RANGE | 3 |
| REVERSE SPEED QUANTITY | 1 |
| WINCH | NOT INCLUDED |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| FURNISHED ITEMS AND QUANTITY | BEACON1,SIREN1,SPOTLIGHT1 |
Restrictions/Controls & Freight Information | NSN 4210-01-012-7147
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069240 | FIRE FIGHTING APPARATUS |
| Less than car load rating | D | 200 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 4210-01-012-7147
Air Force| Category | Code | Description |
|---|---|---|
| Fund Code | PD | Regulated items, item manager controlled. |
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
