NSN 4210-00-897-6190 AS32P2, MILT27213TYPEAS32P2, 00-897-6190
Product Details | FIRE FIGHTING TRUCK
4210-00-897-6190 Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.
Part Alternates: AS32P2, MILT27213TYPEAS32P2, 4210-00-897-6190, 00-897-6190, 4210008976190, 008976190
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 01 JAN 1962 | 00-897-6190 | 03254 ( TRUCK, FIRE FIGHTING ) |
Drawings & Photos | NSN 4210-00-897-6190
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-00-897-6190
Related Products | NSN 4210-00-897-6190
Technical Data | NSN 4210-00-897-6190
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | CRASH |
| EXTINGUISHING AGENT FOR WHICH DESIGNED | FOAM AND FOG AND WATER |
| PUMP TYPE | CENTRIFUGAL |
| PUMP CAPACITY | 1400.0 GALLONS PER MINUTE |
| MOUNTING POSITION | MIDSHIP |
| PUMP DRIVE TYPE | AUXILIARY ENGINE |
| WATER TANK QUANTITY | 1 |
| TANK CAPACITY | 2300.0 GALLONS |
| CHEMICAL TANK QUANTITY | 1 |
| CHEMICAL TANK CAPACITY | 200.0 GALLONS |
| CHEMICAL TYPE | FOG |
| AERIAL LADDER | NOT INCLUDED |

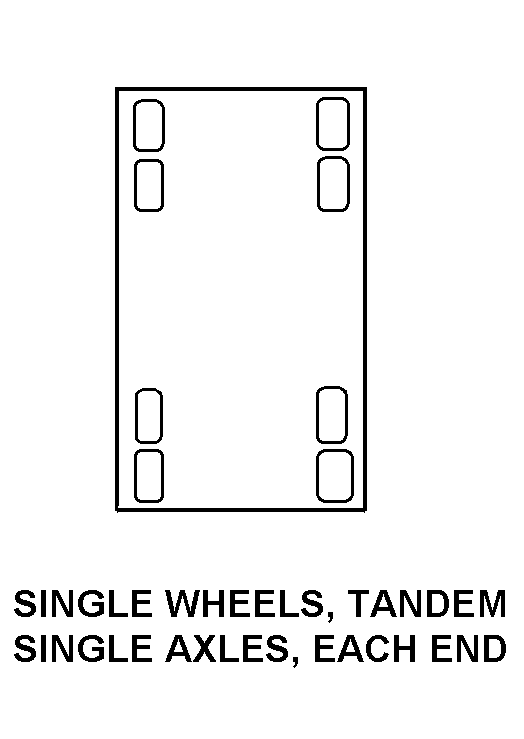

| WHEEL ARRANGEMENT STYLE | 29 SINGLE WHEEL, TANDEM SINGLE AXLES, EACH END |
| FRONT WHEEL DRIVE FEATURE | INCLUDED |
| CHASSIS SIZE DESIGNATION | 8X8 |
| CHASSIS LOAD RATING | 10.0 TONS |
| WHEELBASE SIZE | 205.000 INCHES |
| CAB LOCATION | AHEAD OF ENGINE |
| CAB DESIGN | CLOSED |
| GROSS WEIGHT RANGE | 62000.0 TO 65000.0 POUNDS |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| PRIME MOVER QUANTITY | 2 |
| CYLINDER QUANTITY | 6 |
| BRAKE POWER RATING | NOT RATED |
| ENGINE MANUFACTURER NAME | CONTINENTAL MOTORS CORP |
| ENGINE MODEL NUMBER | S6820-83 AND 6820-84 |
| TRANSMISSION TYPE | AUTOMATIC |
| SPEED RANGE QUANTITY | 1 |
| FORWARD SPEED QUANTITY PER RANGE | 1 |
| REVERSE SPEED QUANTITY | 1 |
| WINCH | NOT INCLUDED |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| FURNISHED ITEMS AND QUANTITY | AX 1,DOOR OPENER 1,PIKE POLE 1,SPANNER WRENCH 1 |
| SPECIAL FEATURES | EQUIPPED W/TORQUE CONVERTER W/LOCK UP |
| NONDEFINITIVE SPEC/STD DATA | A/S32P-2 TYPE |
Restrictions/Controls & Freight Information | NSN 4210-00-897-6190
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4210-00-897-6190
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | B | Ground Forces Support Materiel (Other Support Materiel) |
| Appropriation and Budget Activity | Q | Other Support Equipment |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | W | Line of Communication/Base Support Systems |
| Weapons Systems/End Item or Homogeneous Group | WG | Tactical Firefighting Equipment |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | A12 | US Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
