NSN 4210-00-850-7103 M45A2WLFW, 00-850-7103, 008507103
Product Details | FIRE FIGHTING TRUCK
4210-00-850-7103 Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.
Part Alternates: M45A2WLFW, 4210-00-850-7103, 00-850-7103, 4210008507103, 008507103
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 11 JAN 1967 | 00-850-7103 | 03254 ( TRUCK, FIRE FIGHTING ) |
Drawings & Photos | NSN 4210-00-850-7103
Cross Reference | NSN 4210-00-850-7103
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M45A2WLFW | 63734 | KAITLIN CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-00-850-7103
Related Products | NSN 4210-00-850-7103
Technical Data | NSN 4210-00-850-7103
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | PUMPER |
| EXTINGUISHING AGENT FOR WHICH DESIGNED | WATER AND FOAM |
| PUMP TYPE | CENTRIFUGAL |
| PUMP CAPACITY | 500.0 GALLONS PER MINUTE |
| MOUNTING POSITION | MIDSHIP |
| PUMP DRIVE TYPE | POWER TAKE-OFF |
| WATER TANK QUANTITY | 1 |
| TANK CAPACITY | 400.0 GALLONS |
| CHEMICAL TANK QUANTITY | 1 |
| CHEMICAL TANK CAPACITY | 40.0 GALLONS |
| CHEMICAL TYPE | FOAM |
| AERIAL LADDER | NOT INCLUDED |

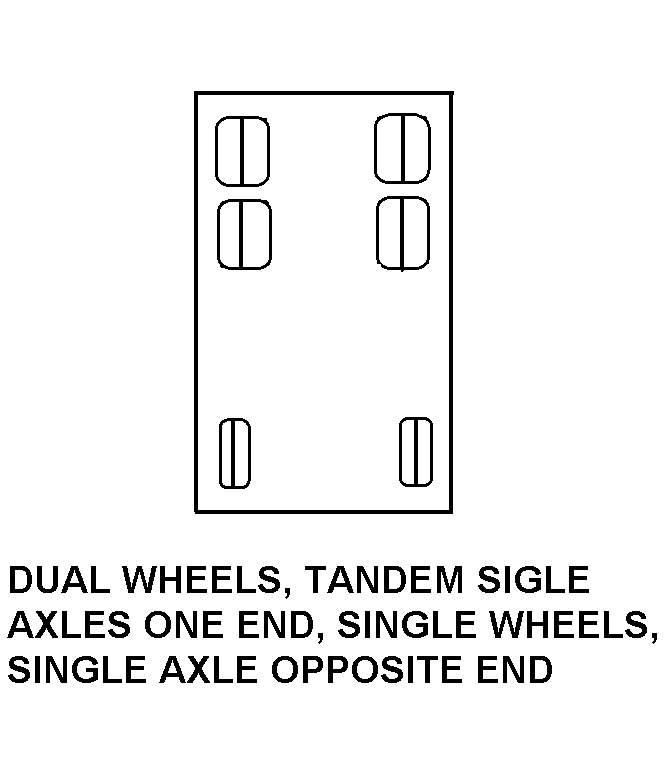

| WHEEL ARRANGEMENT STYLE | 26 DUAL WHEELS, TANDEM SINGLE AXLES ONE END, SINGLE WHEELS, SINGLE AXLE OPPOSITE END |
| FRONT WHEEL DRIVE FEATURE | INCLUDED |
| CHASSIS SIZE DESIGNATION | 6X6 |
| CHASSIS LOAD RATING | 2.5 TONS |
| WHEELBASE SIZE | 154.000 INCHES |
| CAB LOCATION | CONVENTIONAL |
| CAB DESIGN | CLOSED |
| GROSS WEIGHT RANGE | 18100.0 TO 21000.0 POUNDS |
| PRIME MOVER TYPE | DIESEL ENGINE |
| MULTIFUEL USAGE FEATURE | PROVIDED |
| PRIME MOVER QUANTITY | 1 |
| CYLINDER QUANTITY | 6 |
| BRAKE POWER RATING | NOT RATED |
| ENGINE MANUFACTURER NAME | CONTINENTAL MOTORS CORP |
| ENGINE MODEL NUMBER | LD465-1 |
| TRANSMISSION TYPE | MANUAL |
| REVERSE SPEED QUANTITY | 1 |
| OVERDRIVE | NOT INCLUDED |
| FORWARD SPEED QUANTITY | 5 |
| WINCH | NOT INCLUDED |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| MANUFACTURERS CODE | 63734 |
| DESIGN CONTROL REFERENCE | M45A2WLFW |
Restrictions/Controls & Freight Information | NSN 4210-00-850-7103
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069240 | FIRE FIGHTING APPARATUS |
| Less than car load rating | D | 200 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 4210-00-850-7103
Air Force
Marines| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | S | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 3 | Marine Corps Appropriation Stores Account Principal Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | 2 | Support Vehicles and Equipment17, 23 except 2350, 25, 26, 28, 29, 4210, 4910, 6545 |
| Echelon Management Code | 3 | Headquarters Marine Corps All Marine Corps-managed items managed by the ICP on a |
| Echelon Identification Code | A | Type 1 End Items 1 |
| Operational Test Code | 1 | Items of equipment which require the performance of special procedures and are controlled through the Mechanization of Warehousing and Shipment Processing (MOWASP) special handling suspense routine by USMC/Serial Number (excluding small arms). Normally OTC 1 items of equipment are technical items which may be unboxed, open-storage, skid mounted, rolling stock (wheel or track mounted) such as tanks, trailers, vehicles, heavy construction equipment and USMC/Serial Number controlled end items (i.e., housed radar, communications van, shop van, etc.). |
| Source of Supply | MPB | Commanding General Marine Corps Logistics Command 566-2, Bldg. 3700 Albany, GA 31704-5000 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
