NSN 4210-00-620-0106 MILT11407, HC26, 00-620-0106
Product Details | FIRE FIGHTING TRUCK
4210-00-620-0106 Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.
Part Alternates: MILT11407, HC26, 4210-00-620-0106, 00-620-0106, 4210006200106, 006200106
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 01 JAN 1963 | 00-620-0106 | 03254 ( TRUCK, FIRE FIGHTING ) |
Drawings & Photos | NSN 4210-00-620-0106
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-00-620-0106
Related Products | NSN 4210-00-620-0106
Technical Data | NSN 4210-00-620-0106
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | PUMPER |
| EXTINGUISHING AGENT FOR WHICH DESIGNED | WATER AND FOAM |
| PUMP TYPE | CENTRIFUGAL |
| PUMP CAPACITY | 500.0 GALLONS PER MINUTE |
| MOUNTING POSITION | MIDSHIP |
| PUMP DRIVE TYPE | POWER TAKE-OFF |
| WATER TANK QUANTITY | 1 |
| TANK CAPACITY | 400.0 GALLONS |
| CHEMICAL TANK QUANTITY | 1 |
| CHEMICAL TANK CAPACITY | 40.0 GALLONS |
| CHEMICAL TYPE | FOAM |
| AERIAL LADDER | NOT INCLUDED |

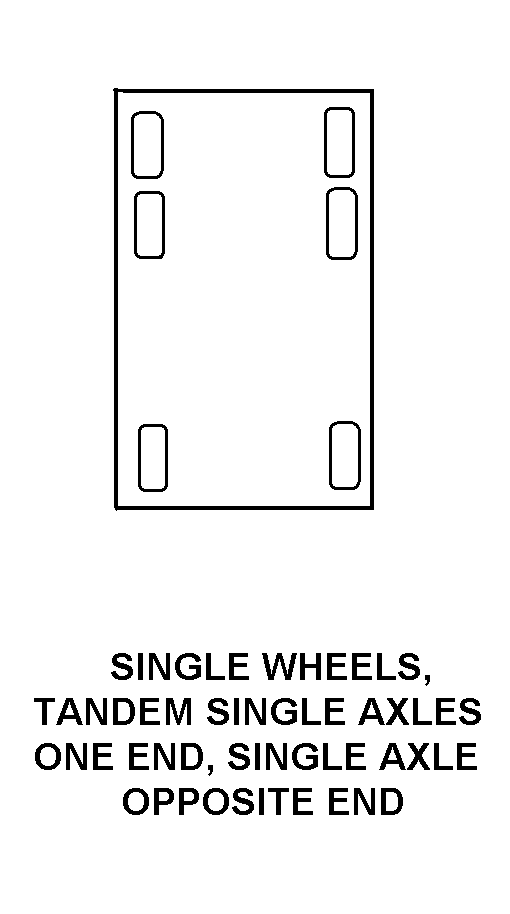

| WHEEL ARRANGEMENT STYLE | 8 SINGLE WHEELS, TANDEM SINGLE AXLES ONE END, SINGLE AXLE OPPOSITE END |
| FRONT WHEEL DRIVE FEATURE | INCLUDED |
| CHASSIS SIZE DESIGNATION | 6X6 |
| CHASSIS LOAD RATING | 2.5 TONS |
| WHEELBASE SIZE | 154.000 INCHES |
| CAB LOCATION | CONVENTIONAL |
| CAB DESIGN | CLOSED |
| GROSS WEIGHT RANGE | 18100.0 TO 21000.0 POUNDS |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| PRIME MOVER QUANTITY | 1 |
| CYLINDER QUANTITY | 6 |
| BRAKE POWER RATING | NOT RATED |
| ENGINE MANUFACTURER NAME | REO MOTORS INC |
| ENGINE MODEL NUMBER | OA-331 |
| TRANSMISSION TYPE | MANUAL |
| REVERSE SPEED QUANTITY | 1 |
| OVERDRIVE | NOT INCLUDED |
| FORWARD SPEED QUANTITY | 5 |
| WINCH | NOT INCLUDED |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| FURNISHED ITEMS AND QUANTITY | BEACON,ROTATING,1 EA |
| SPECIAL FEATURES | PAINTED RED,SHADE 11136,MIL-T-704,TY A; WINTERIZED FOR -65 DEG F |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY MODEL M500 DARLEY PUMP,GROSS WEIGHT RANGE,AND SPECIAL FEATURES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILT11407 |
| MANUFACTURERS CODE | 96821 |
| DESIGN CONTROL REFERENCE | HC26 |
Restrictions/Controls & Freight Information | NSN 4210-00-620-0106
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J./  |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069260 | FIRE FIGHTING APPARATUS NOI S |
| Less than car load rating | D | 200 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 894 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4210-00-620-0106
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | Q | Other Support Equipment |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | W | Line of Communication/Base Support Systems |
| Weapons Systems/End Item or Homogeneous Group | WG | Tactical Firefighting Equipment |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | If condemned or uneconomically repairable, then dispose at Intermediate level. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J. |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
