NSN 4210-00-377-9412 AS32P15, 00-377-9412, 003779412
Product Details | FIRE FIGHTING TRUCK
4210-00-377-9412 Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.
Part Alternates: AS32P15, 4210-00-377-9412, 00-377-9412, 4210003779412, 003779412
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 16 MAR 1974 | 00-377-9412 | 03254 ( TRUCK, FIRE FIGHTING ) |
Drawings & Photos | NSN 4210-00-377-9412
Demand History | NSN 4210-00-377-9412
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS32P15 | 2017-08-240 | 1 | Canada |
Cross Reference | NSN 4210-00-377-9412
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS32P15 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-00-377-9412
Related Products | NSN 4210-00-377-9412
Technical Data | NSN 4210-00-377-9412
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | CRASH AND RESCUE |
| EXTINGUISHING AGENT FOR WHICH DESIGNED | FOAM AND WATER |
| PUMP TYPE | CENTRIFUGAL |
| PUMP CAPACITY | 180.0 GALLONS PER MINUTE AND 1250.0 GALLONS PER MINUTE |
| PUMP DRIVE TYPE | POWER TAKE-OFF |
| WATER TANK QUANTITY | 1 |
| TANK CAPACITY | 6500.0 GALLONS |
| CHEMICAL TANK QUANTITY | 1 |
| CHEMICAL TANK CAPACITY | 515.0 GALLONS |
| CHEMICAL TYPE | FOAM |
| AERIAL LADDER | NOT INCLUDED |

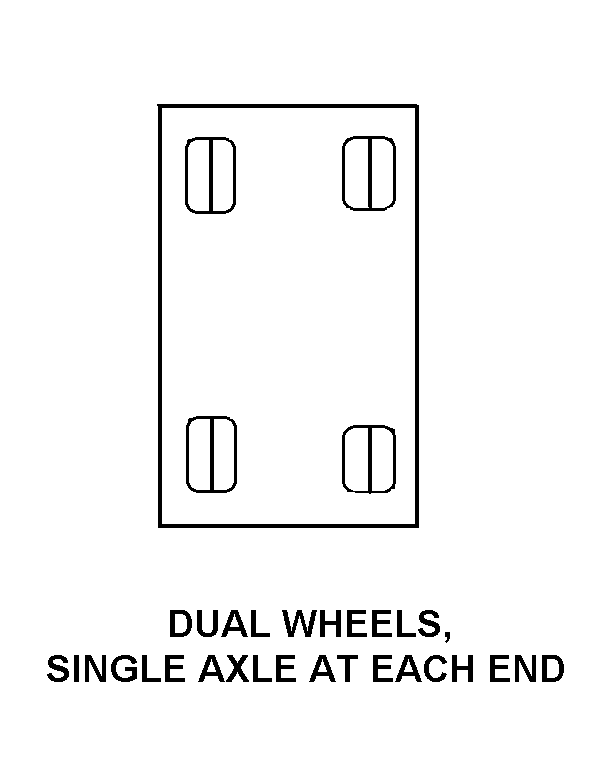

| WHEEL ARRANGEMENT STYLE | 17 DUAL WHEELS, SINGLE AXLE AT EACH END |
| FRONT WHEEL DRIVE FEATURE | INCLUDED |
| CHASSIS SIZE DESIGNATION | 8X8 |
| WHEELBASE SIZE | 304.000 INCHES |
| CAB LOCATION | OVER ENGINE |
| CAB DESIGN | CLOSED |
| GROSS WEIGHT RANGE | 71345.0 TO 130860.0 POUNDS |
| PRIME MOVER TYPE | DIESEL ENGINE |
| PRIME MOVER QUANTITY | 2 |
| CYLINDER QUANTITY | 8 |
| ENGINE MANUFACTURER NAME | DETROIT DIESEL |
| ENGINE MODEL NUMBER | 8V92T |
| WINCH | NOT INCLUDED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AS32P15 |
Restrictions/Controls & Freight Information | NSN 4210-00-377-9412
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 190190 | VEHICLE MTR:AUTO FRT NOI TRACTORS |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 891 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | V | Miscellaneous hazardous materials, UN class 9 (no label) |
Management | NSN 4210-00-377-9412
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
