NSN 4210-00-307-4699 MILC52404, MIL-C-52404, MILDTL52404C
Product Details | FIRE FIGHTING HOSE COUPLING
4210-00-307-4699 A straight fire hose fitting designed to join a fire hose fitting or to a fire hose or another fire hose fitting. For connecting fire hose to fire hose fittings it must have two types of fire hose connections and one connection must have standard hose threads. For connecting two fire hose fittings it must have two types of fire hose connections that have standard hose threads of the same size on both ends, only one connection may be externally threaded. Excludes items with self-sealing and/or quick disconnect features.
Part Alternates: MILC52404, MIL-C-52404, MILDTL52404C, MIL-DTL-52404C , MILF19488, MIL-F-19488, 13218E04711, 13218E0471-1, 33C395, 4210-00-307-4699, 00-307-4699, 4210003074699, 003074699
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 01 JAN 1961 | 00-307-4699 | 51071 ( COUPLING, HOSE, FIRE FIGHTING ) |

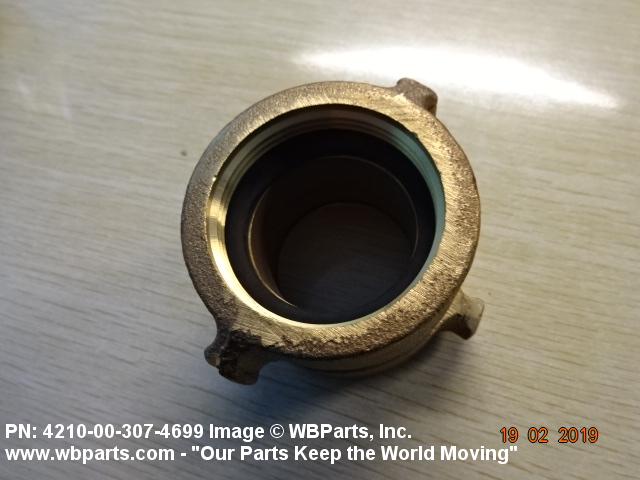

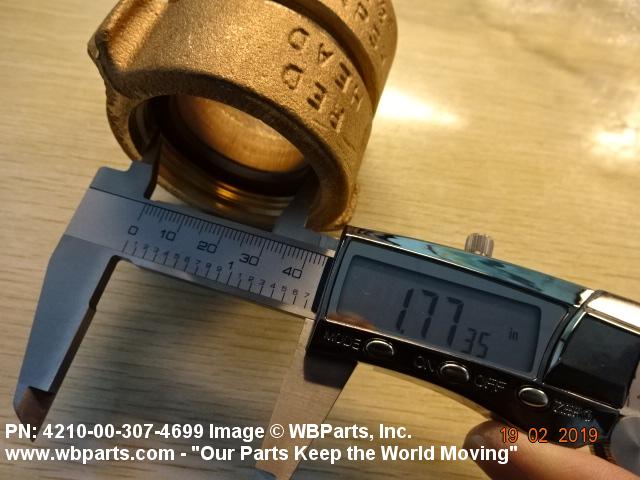

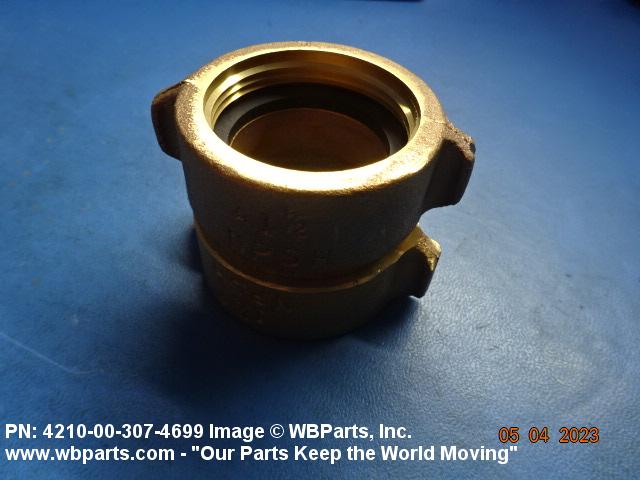

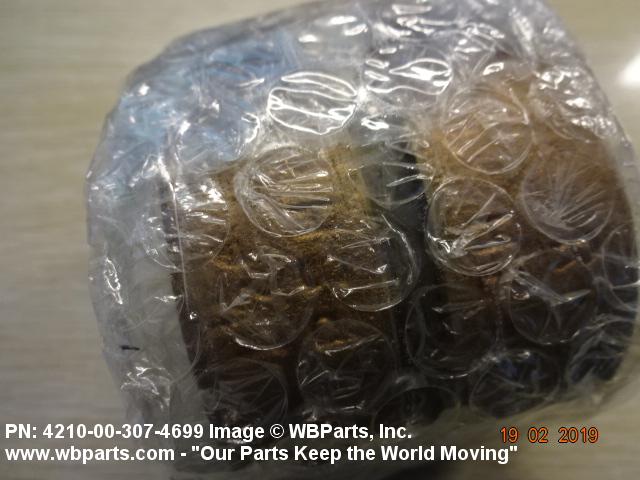

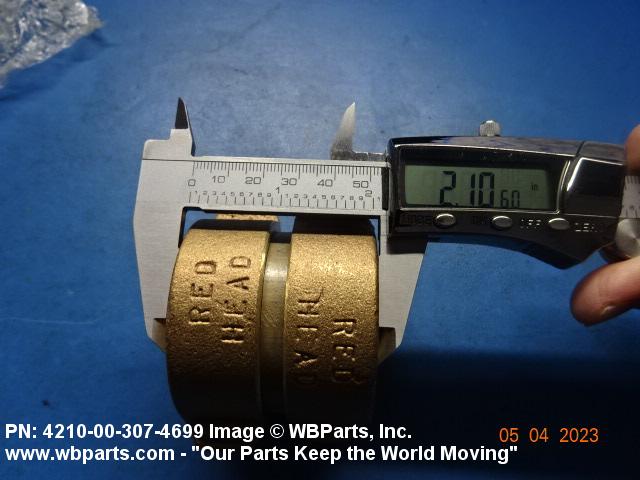

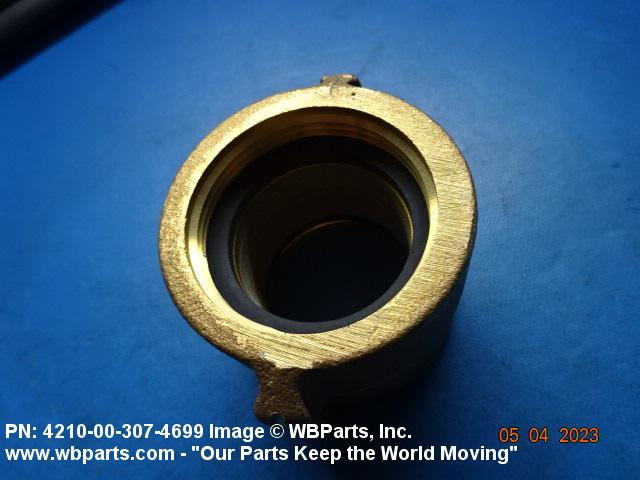

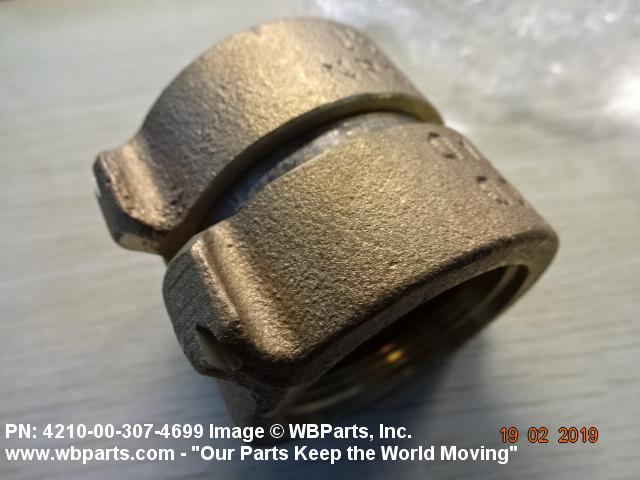

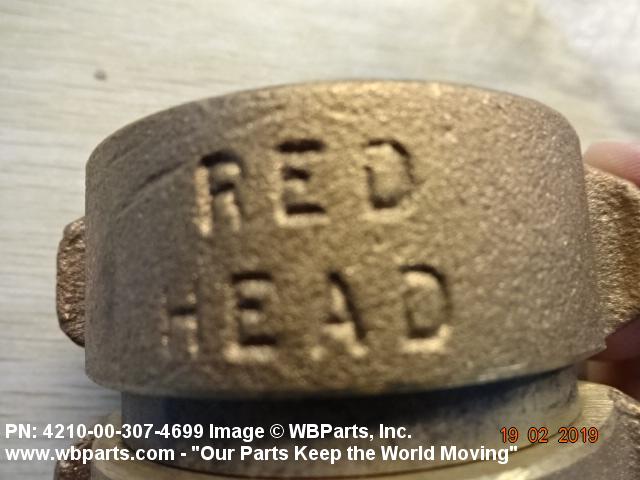

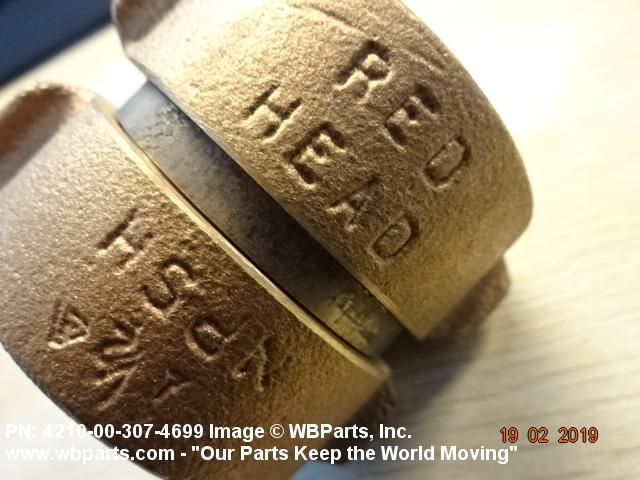

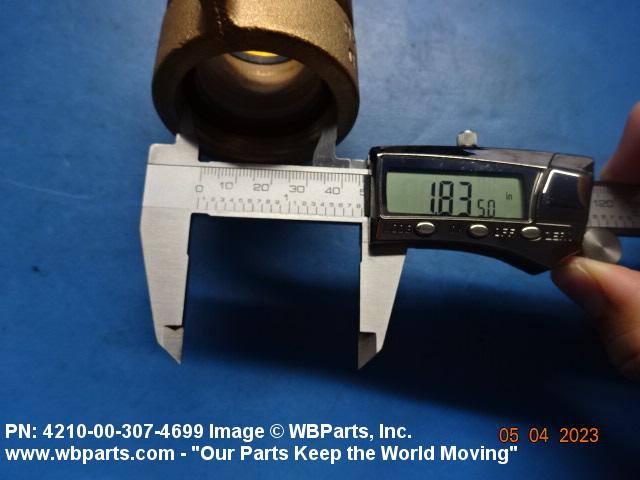

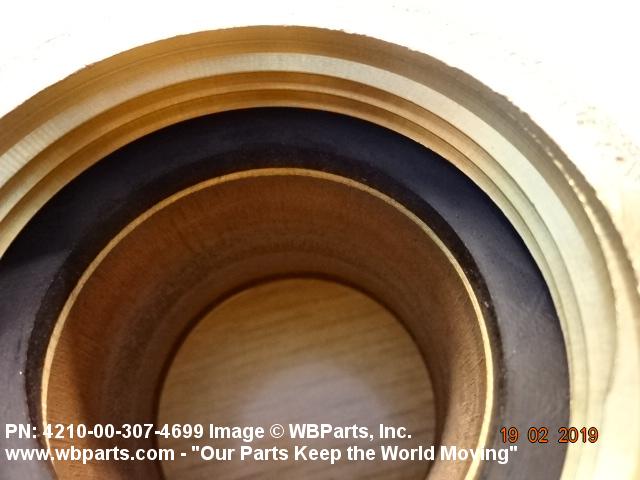

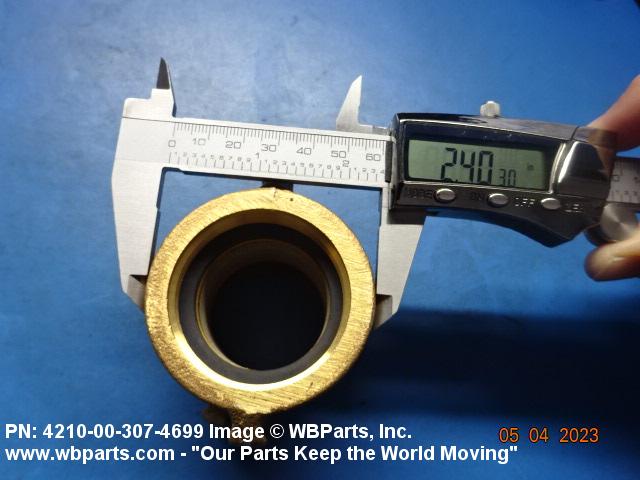

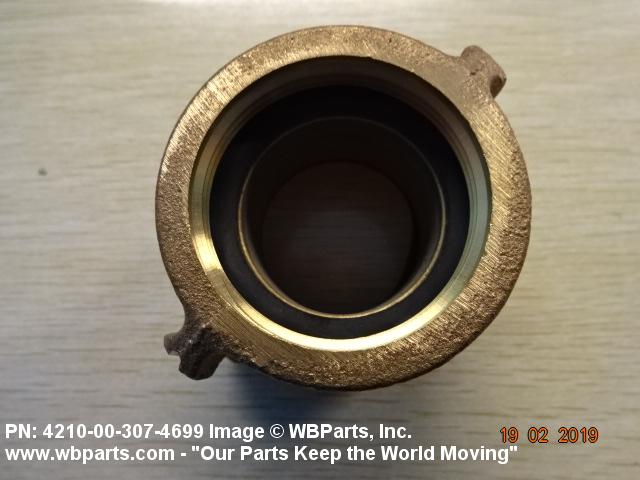

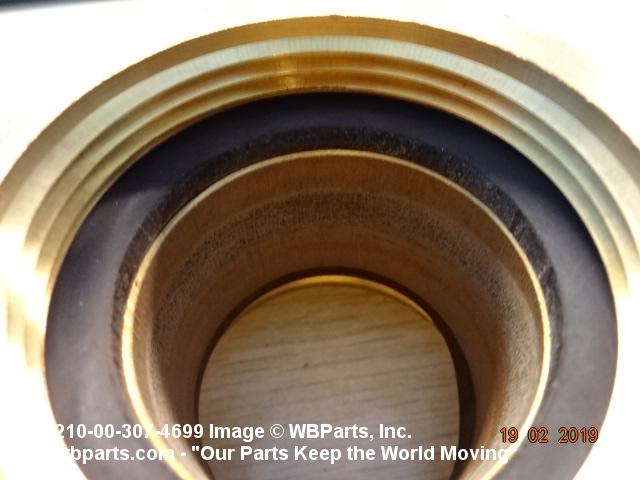

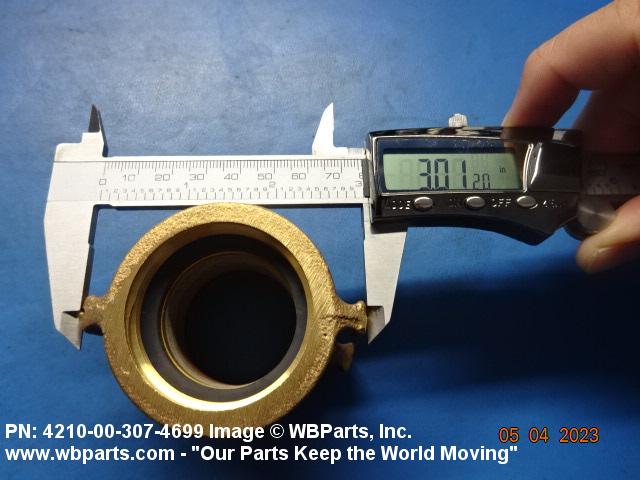

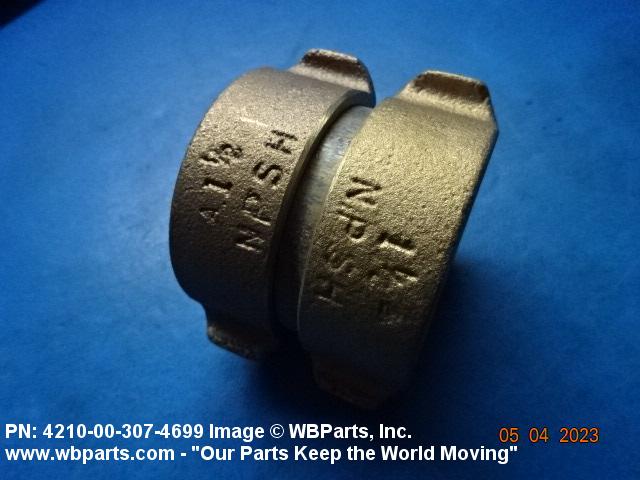

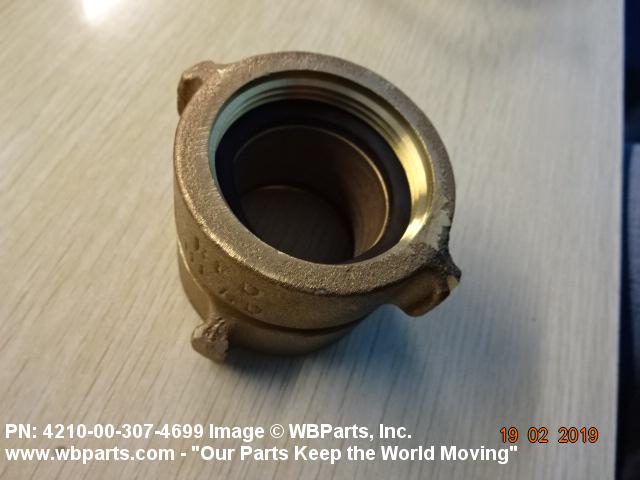

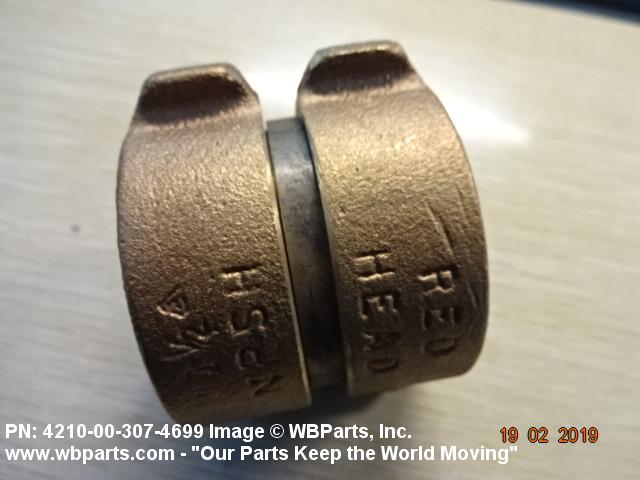

Drawings & Photos | NSN 4210-00-307-4699
Demand History | NSN 4210-00-307-4699
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4210-00-307-4699 | 2024-09-268 | 1011 | DIBBS |
| 4210-00-307-4699 | 2024-07-192 | 4 | United States |
| 4210-00-307-4699 | 2024-01-17 | 1 | us |
| 4210-00-307-4699 | 2023-08-213 | 1 | US |
| 4210-00-307-4699 | 2023-07-207 | 2 | US |
| 4210-00-307-4699 | 2023-02-49 | 1 | us |
| 4210-00-307-4699 | 2023-02-49 | 1 | us |
| 4210-00-307-4699 | 2022-09-273 | 1 | United States |
| 4210-00-307-4699 | 2022-07-196 | 1 | United States |
| 4210-00-307-4699 | 2022-03-81 | 2 | DIBBS |
| 4210-00-307-4699 | 2022-03-81 | 4 | DIBBS |
| 4210-00-307-4699 | 2022-03-68 | 655 | DIBBS |
| 4210-00-307-4699 | 2022-02-55 | 4 | DIBBS |
| 4210-00-307-4699 | 2022-01-11 | 723 | DIBBS |
| 35RBG1500215002 | 2021-10-285 | 776 | DIBBS |
| 35RBG1500215002 | 2021-10-281 | 3323 | DIBBS |
| 4210-00-307-4699 | 2021-06-158 | 3323 | DIBBS |
| 4210-00-307-4699 | 2021-05-146 | 1 | US |
| 4210-00-307-4699 | 2021-03-75 | 623 | DIBBS |
| 4210-00-307-4699 | 2021-02-39 | 2700 | DIBBS |
| 4210-00-307-4699 | 2020-06-161 | 2 | United States |
| 4210-00-307-4699 | 2020-04-104 | 6 | ES |
| 4210-00-307-4699 | 2020-03-84 | 6 | ES |
| 4210-00-307-4699 | 2019-11-312 | 3 | United States |
| 4210-00-307-4699 | 2019-08-239 | 30 | SA |
| 4210-00-307-4699 | 2019-07-197 | 5 | US |
| MILC52404 | 2019-03-85 | 6 | United States |
| MILC52404 | 2019-03-85 | 12 | United States |
| MILC52404 | 2019-03-85 | 50 | United States |
| 4210-00-307-4699 | 2019-02-56 | 1 | US |
| 4210-00-307-4699 | 2019-02-49 | 1 | United States |
| 4210-00-307-4699 | 2019-02-42 | 1 | United States |
| 4210-00-307-4699 | 2019-01-24 | 624 | DIBBS |
| 4210-00-307-4699 | 2018-10-285 | 1 | United States |
| 4210-00-307-4699 | 2018-06-162 | 1 | United States |
| 4210-00-307-4699 | 2018-05-143 | 591 | DIBBS |
| 4210-00-307-4699 | 2017-12-346 | 499 | DIBBS |
| 4210-00-307-4699 | 2017-08-222 | 800 | DIBBS |
| 4210-00-307-4699 | 2017-06-172 | 656 | DIBBS |
| 4210-00-307-4699 | 2017-01-10 | 10 | MANUAL |
| 4210-00-307-4699 | 2016-08-231 | 2049 | DIBBS |
| 4210-00-307-4699 | 2016-05-139 | 2236 | DIBBS |
| 4210-00-307-4699 | 2016-04-104 | 306 | DIBBS |
| 4210-00-307-4699 | 2016-03-67 | 196 | DIBBS |
| 4210-00-307-4699 | 2016-03-63 | 212 | DIBBS |
| 4210-00-307-4699 | 2016-01-14 | 789 | DIBBS |
| 4210-00-307-4699 | 2015-09-250 | 979 | DIBBS |
| 4210-00-307-4699 | 2015-06-154 | 8 | United States |
| 4210-00-307-4699 | 2014-10-282 | 1332 | DIBBS |
| 4210-00-307-4699 | 2014-06-176 | 669 | DIBBS |
| 4210-00-307-4699 | 2014-01-22 | 4 | United States |
| 4210-00-307-4699 | 2014-01-14 | 2 | Taiwan |
| MILF19488 | 2013-03-80 | 12 | New Zealand |
| 4210-00-307-4699 | 2013-03-66 | 1876 | DIBBS |
| 4210-00-307-4699 | 2013-01-24 | 1876 | DIBBS |
| 4210-00-307-4699 | 2013-01-17 | 2 | MANUAL |
| 4210-00-307-4699 | 2012-06-178 | 667 | DIBBS |
| 4210-00-307-4699 | 2012-05-137 | 1601 | DIBBS |
| 4210-00-307-4699 | 2012-04-121 | 823 | DIBBS |
| 4210-00-307-4699 | 2010-09-245 | 1301 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-00-307-4699
Related Products | NSN 4210-00-307-4699
Technical Data | NSN 4210-00-307-4699
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-F-19488,TYPE 1,COMP B MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | WATER SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 600.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED INTERNAL HOSE ALL ENDS |
| CONNECTION STYLE | B18B SWIVEL NUT, GASKET SEAL ALL ENDS |

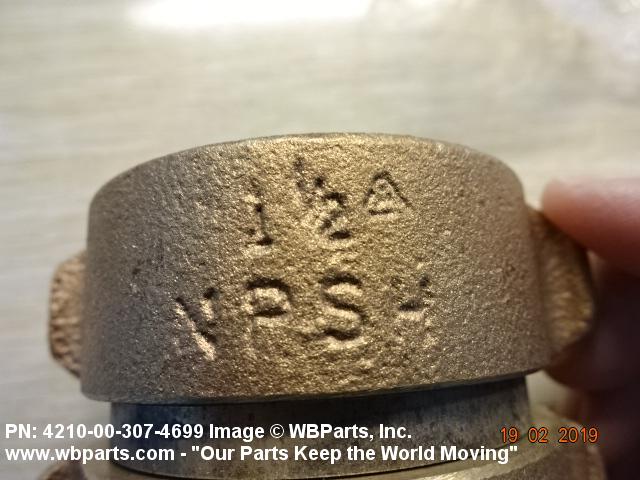

| THREAD SERIES DESIGNATOR | NPSH ALL ENDS |
| NOMINAL THREAD SIZE | 1.500 INCHES ALL ENDS |

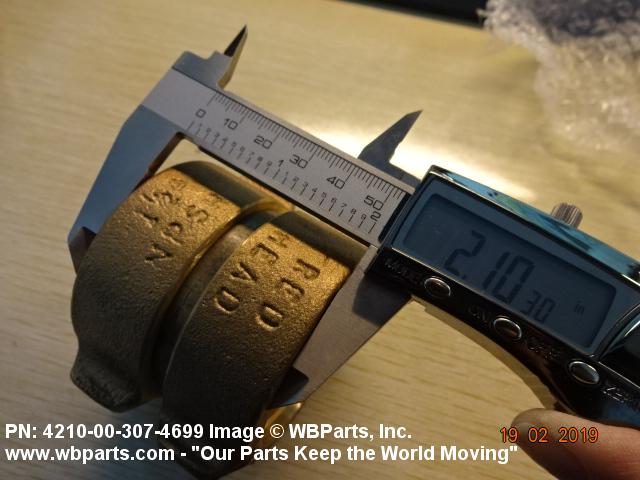

| NOMINAL OVERALL LENGTH | 2.500 INCHES |
| SPECIAL FEATURES | DOUBLE FEMALE SWIVEL |
| III FSC APPLICATION DATA | FIRE FIGHTING EQUIPMENT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-19488 |
Restrictions/Controls & Freight Information | NSN 4210-00-307-4699
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4210-00-307-4699
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
