NSN 4210-00-203-3268 C2951, 00-203-3268, 002033268
Product Details | AUTOMATIC SPRINKLER CONTROL VALVE
4210-00-203-3268 A device designed for installation in the main riser of a dry or empty pipe automatic sprinkler system and held closed by spring force, air, or water pressure. Water is automatically released to the sprinkler system either by releasing or lowering the pressure beyond the minimum requirement or admitting and increasing the pressure to overcome the spring force.
Part Alternates: C2951, 4210-00-203-3268, 00-203-3268, 4210002033268, 002033268
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 01 JAN 1963 | 00-203-3268 | 03969 ( VALVE, CONTROL, AUTOMATIC SPRINKLER ) |
Drawings & Photos | NSN 4210-00-203-3268
Cross Reference | NSN 4210-00-203-3268
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C2951 | 86184 | GRISWOLD INDUSTRIES, CO. DBA CLA-VAL CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4210-00-203-3268
Technical Data | NSN 4210-00-203-3268
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A1 STRAIGHT THRU |
| FACE TO FACE DISTANCE | 13.750 INCHES NOMINAL |
| BODY MATERIAL | BRASS |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DISK, FLAT |
| FLOW CONTROL DEVICE MATERIAL | RUBBER |
| STEM MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | PLAIN FACE FLANGE |
| FIRST END STYLE DESIGNATOR | M1 PLAIN |

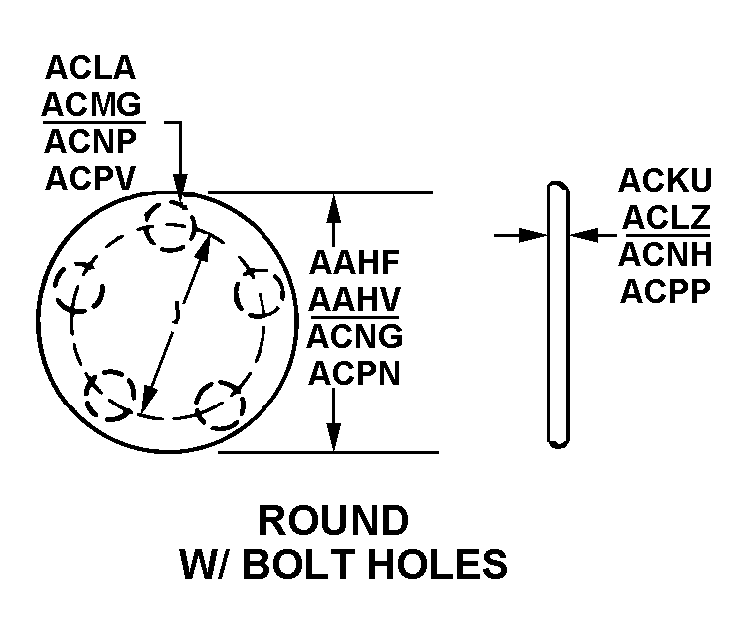

| FIRST END FLANGE SHAPE STYLE | 3 ROUND |
| FIRST END BOLT HOLE QUANTITY | 8 |
| FIRST END FLANGE OUTSIDE DIAMETER | 7.187 INCHES NOMINAL |
| FIRST END FLANGE THICKNESS | 1.000 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.687 INCHES NOMINAL |
| FIRST END BOLT CIRCLE DIAMETER | 6.062 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| VALVE OPERATION METHOD | DIAPHRAGM |
| MAXIMUM OPERATING PRESSURE | 250.0 POUNDS PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | WATER, FRESH |
| TEMP RATING | NOT RATED |
| SPRINKLER SYSTEM FOR WHICH DESIGNED | DRY PIPE |
| STEM MOVEMENT DIRECTION | ASCENDING |
| BONNET TYPE | INSIDE SPRING |
| BONNET ATTACHMENT METHOD | BOLTED |
| RENEWABLE SEAT RING TYPE | BONDED |
| VALVE LOADING SPRING LOCATION | INTERNAL |
| FURNISHED ITEMS | TEST ATTACHMENT |
| MANUFACTURERS CODE | 86184 |
| DESIGN CONTROL REFERENCE | C2951 |
Restrictions/Controls & Freight Information | NSN 4210-00-203-3268
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4210-00-203-3268
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
