NSN 4140-01-409-1540 3016 , 4C631, 01-409-1540
Product Details | CIRCULATING FAN
4140-01-409-1540 A nonpositive displacement mechanical device having an axial fan impeller with or without a protective enclosure. It is designed to circulate air under free-airflow conditions, and may be equipped with a baffle(s) to deflect the air radially. It may be suspended from the ceiling, attached to the wall, or stand on a horizontal surface.
Part Alternates: 3016 , 4C631, 4140-01-409-1540, 01-409-1540, 4140014091540, 014091540
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 07 MAR 1995 | 01-409-1540 | 30260 ( FAN, CIRCULATING ) |
Drawings & Photos | NSN 4140-01-409-1540
Demand History | NSN 4140-01-409-1540
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4C631 | 2024-08-221 | 143 | DIBBS |
| 4C631/9016 | 2024-08-221 | 143 | DIBBS |
| 4C631R/9016R | 2024-08-221 | 143 | DIBBS |
| 3016 | 2022-04-110 | 148 | DIBBS |
| 4C631 | 2022-04-110 | 148 | DIBBS |
| 3016 | 2022-02-40 | 164 | DIBBS |
| 4C631 | 2022-02-40 | 164 | DIBBS |
| 4140-01-409-1540 | 2021-04-113 | 5 | JP |
| 4140-01-409-1540 | 2021-04-113 | 5 | JP |
| 3016 | 2020-04-120 | 421 | DIBBS |
| 4C631 | 2020-04-120 | 421 | DIBBS |
| 3016 | 2019-08-240 | 189 | DIBBS |
| 4C631 | 2019-08-240 | 189 | DIBBS |
| 3016 | 2019-07-185 | 98 | DIBBS |
| 4C631 | 2019-07-185 | 98 | DIBBS |
| 4140-01-409-1540 | 2018-11-332 | 183 | DIBBS |
| 4140-01-409-1540 | 2017-08-243 | 75 | DIBBS |
| 4140-01-409-1540 | 2016-07-192 | 218 | DIBBS |
| 4140-01-409-1540 | 2015-10-291 | 141 | DIBBS |
| 4140-01-409-1540 | 2015-02-47 | 85 | DIBBS |
| 4140-01-409-1540 | 2014-08-229 | 37 | DIBBS |
| 4140-01-409-1540 | 2012-10-277 | 74 | DIBBS |
| 4140-01-409-1540 | 2011-07-193 | 79 | DIBBS |
| 4140-01-409-1540 | 2010-10-280 | 33 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-01-409-1540
Technical Data | NSN 4140-01-409-1540
| Characteristic | Specifications |
|---|---|

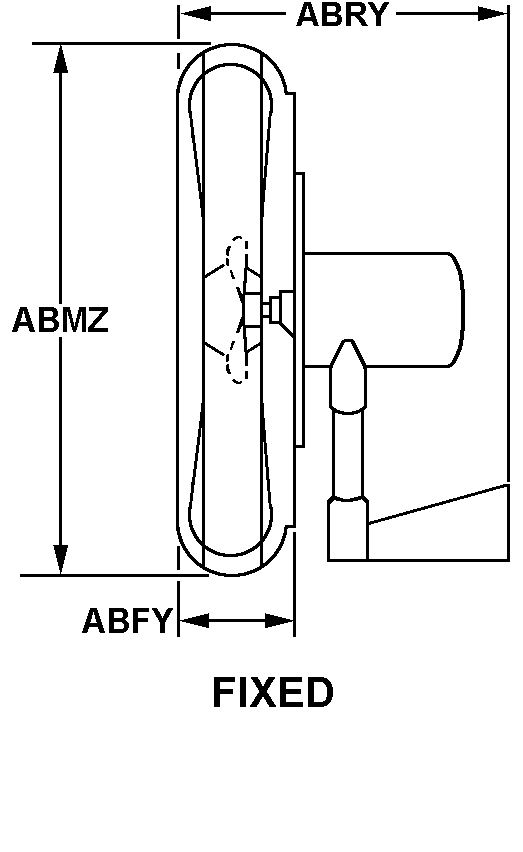

| STYLE DESIGNATOR | 35 FIXED |
| LENGTH | 25.000 INCHES NOMINAL |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | THREE SPEED |
| INCLOSURE TYPE | GUARDED |
| ELECTRICAL CONNECTION TYPE | CORD W/ATTACHED PLUG |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 770.0 AND 1100.0 AND 1300.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| FLOW DIRECTION | OUTWARD |
| SPECIAL FEATURES | WALL MOUNTED OSCILLATING FAN |
Restrictions/Controls & Freight Information | NSN 4140-01-409-1540
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061900 | FANS ELEC EXHAUST/VENTILATING |
| Less than car load rating | ||
| Less than truck load rating | K | 92.5 |
| Water commodity Code | 659 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-01-409-1540
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
