NSN 4140-01-278-3874 FCNE 88-458, FCNE 88-458 SZ2, FCNE88458
Product Details | CIRCULATING FAN
4140-01-278-3874 A nonpositive displacement mechanical device having an axial fan impeller with or without a protective enclosure. It is designed to circulate air under free-airflow conditions, and may be equipped with a baffle(s) to deflect the air radially. It may be suspended from the ceiling, attached to the wall, or stand on a horizontal surface.
Part Alternates: FCNE 88-458, FCNE 88-458 SZ2, FCNE88458, FCNE88458SZ2, OSC 243P, OSC243P, 37087, 4140-01-278-3874, 01-278-3874, 4140012783874, 012783874
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 05 MAY 1988 | 01-278-3874 | 30260 ( FAN, CIRCULATING ) |

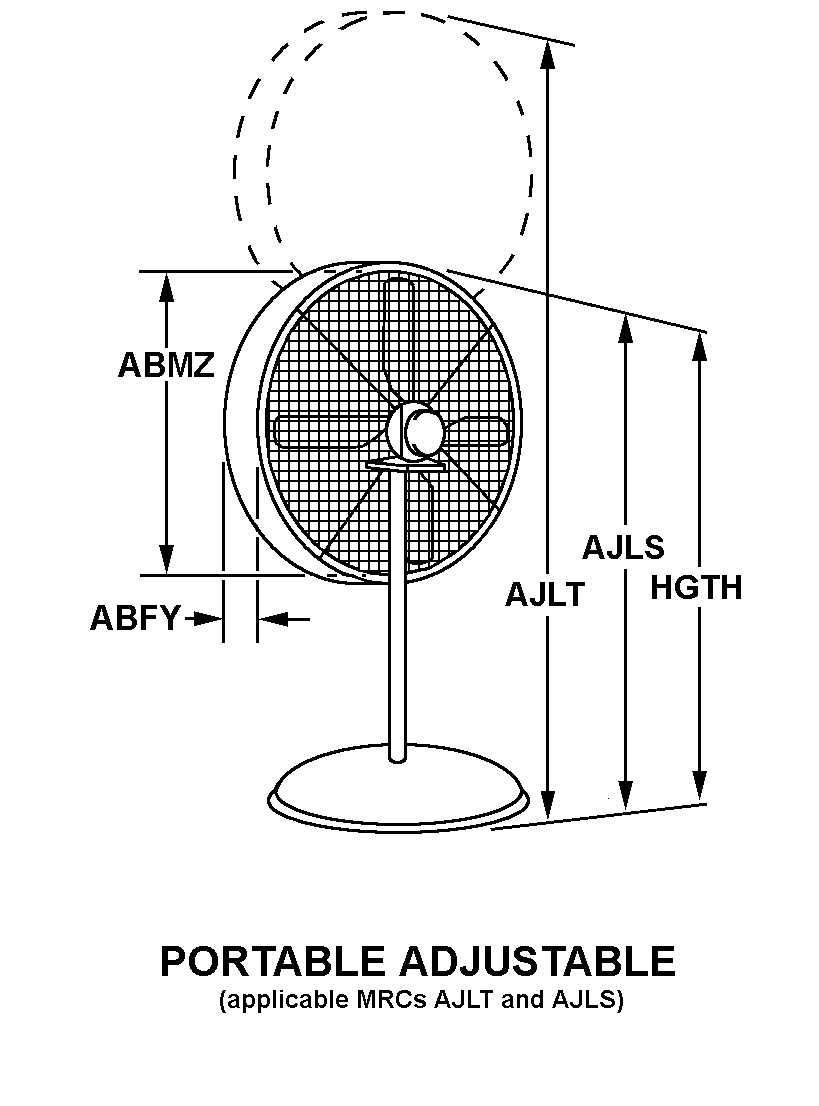

Drawings & Photos | NSN 4140-01-278-3874
Cross Reference | NSN 4140-01-278-3874
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 37087 | 00388 | AIRMASTER FAN COMPANY DBA AUTUMAIRE FAN |
| 4140-01-278-3874 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| FCNE 88-458 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| FCNE 88-458 SZ2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| OSC 243P | 00383 | FRIGID DIV OF ROBESON SALES CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-01-278-3874
Technical Data | NSN 4140-01-278-3874
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 38A PORTABLE ADJUSTABLE |
| SHORTEST HEIGHT | 54.000 INCHES NOMINAL |
| EXTENDED HEIGHT | 84.000 INCHES NOMINAL |
| QUANTITY | 1 |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | TWO SPEED |
| INCLOSURE TYPE | FULLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | NOT RATED |
| ELECTRICAL CONNECTION TYPE | CORD W/ATTACHED PLUG |
| PRIME MOVER POWER RATING | 240.0 WATTS |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 3925.0 CUBIC FEET PER MINUTE MINIMUM AND 5350.0 CUBIC FEET PER MINUTE MAXIMUM |
| FLOW DIRECTION | OUTWARD |
| FEATURES PROVIDED | SAFETY IMPELLER GUARD |
| SPECIAL FEATURES | BLADE MADE OF PLASTIC OR METAL |
Restrictions/Controls & Freight Information | NSN 4140-01-278-3874
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4140-01-278-3874
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
