Product Details | CENTRIFUGAL FAN HOUSING

4140-01-147-9258 The outer casing of a centrifugal fan designed to inclose an impeller. It is usually of one piece construction containing inlet(s) and outlets.

Part Alternates: A026246, A0-26246, 18001784CC1, 2624602, 26246-02, 406259, 9177316, 91773163, 9177316-3, 4140-01-147-9258, 01-147-9258, 4140011479258, 011479258

Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment

Supply Group (FSG) NSN Assign. NIIN
41 24 FEB 1983 01-147-9258

Drawings & Photos | NSN 4140-01-147-9258


Demand History | NSN 4140-01-147-9258

Part Number Request Date QTY Origin
18001784CC1 2019-05-149 1 DIBBS
406259000 2019-05-149 1 DIBBS
18001784CC1 2019-04-91 1 DIBBS
406259000 2019-04-91 1 DIBBS
4140-01-147-9258 2018-08-240 1 DIBBS
4140-01-147-9258 2018-05-134 2 DIBBS
4140-01-147-9258 2018-05-123 2 DIBBS

Cross Reference | NSN 4140-01-147-9258

Part Number Cage Code Manufacturer
18001784CC1 04810 ASHLAND ELECTRIC PRODUCTS, INC.
26246-02 82877 ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK
406259 82877 ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK
9177316 18876 U S ARMY AVIATION AND MISSILE COMMAND
9177316-3 18876 U S ARMY AVIATION AND MISSILE COMMAND
A0-26246 82877 ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4140-01-147-9258

Technical Data | NSN 4140-01-147-9258

Characteristic Specifications

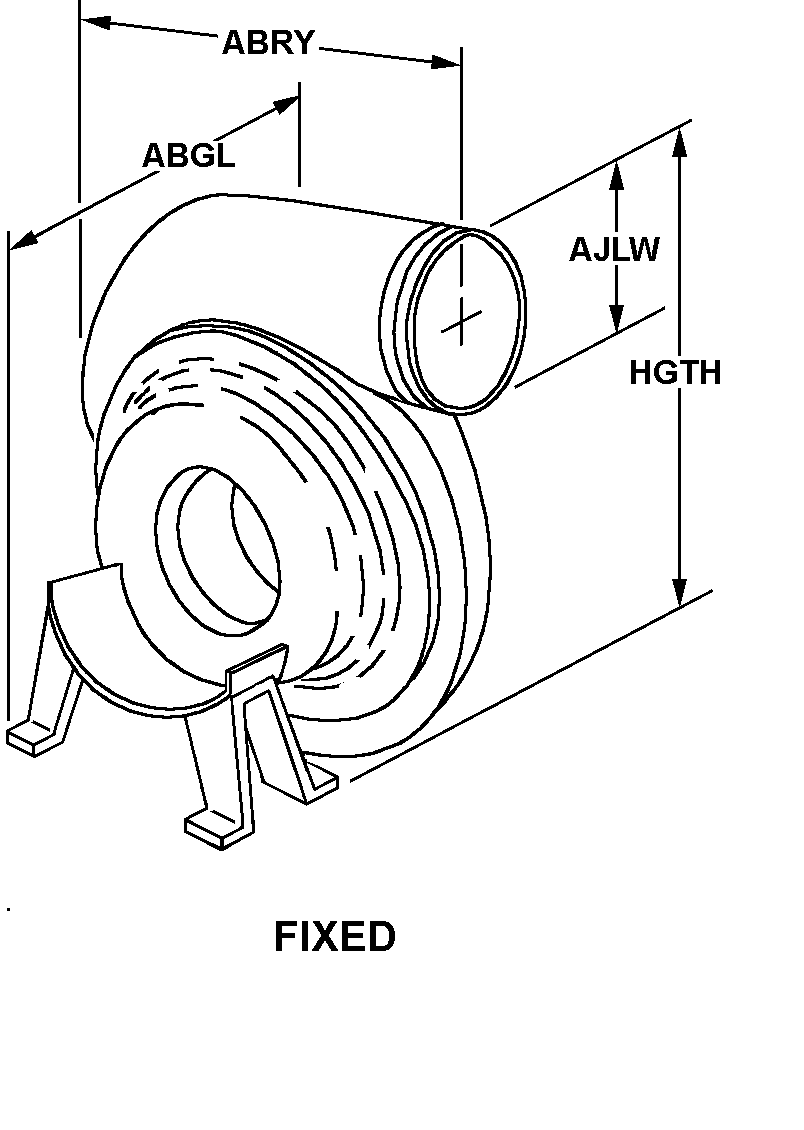

HOUSING STYLE 61 FIXED
WIDTH 3.844 INCHES NOMINAL
LENGTH 15.625 INCHES NOMINAL
OUTLET INSIDE DIAMETER 2.281 INCHES NOMINAL
HEIGHT 8.625 INCHES NOMINAL
MATERIAL STEEL OVERALL
PRIME MOVER FOR WHICH DESIGNED ELECTRIC MOTOR
III END ITEM IDENTIFICATION 4140-00-875-9846
MANUFACTURERS CODE 82877
DESIGN CONTROL REFERENCE 406259

Restrictions/Controls & Freight Information | NSN 4140-01-147-9258

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 593 unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4140-01-147-9258

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
