NSN 4140-01-090-3866 A10332-9CW ROT, A103329CWROT, D-42085 PIECE 98
Product Details | CENTRIFUGAL FAN IMPELLER
4140-01-090-3866 An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation.
Part Alternates: A10332-9CW ROT, A103329CWROT, D-42085 PIECE 98, D42085PIECE98, 02626863000, 026-26863-000, 350A970G47, 4140-01-090-3866, 01-090-3866, 4140010903866, 010903866
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 16 FEB 1980 | 01-090-3866 | 10088 ( IMPELLER, FAN, CENTRIFUGAL ) |
Drawings & Photos | NSN 4140-01-090-3866
Cross Reference | NSN 4140-01-090-3866
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 026-26863-000 | 00527 | SNYDERGENERAL CORP COMMERCIAL PRODUCTS GROUP |
| 026-26863-000 | 7F088 | YORK INTL CORP |
| 350A970G47 | 00527 | SNYDERGENERAL CORP COMMERCIAL PRODUCTS GROUP |
| A10332-9CW ROT | 60399 | REGAL-BELOIT CORPORATION DBA FASCO GROUP DIV CASSVILLE |
| D-42085 PIECE 98 | 31923 | TODD COMBUSTION INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-01-090-3866
Technical Data | NSN 4140-01-090-3866
| Characteristic | Specifications |
|---|---|

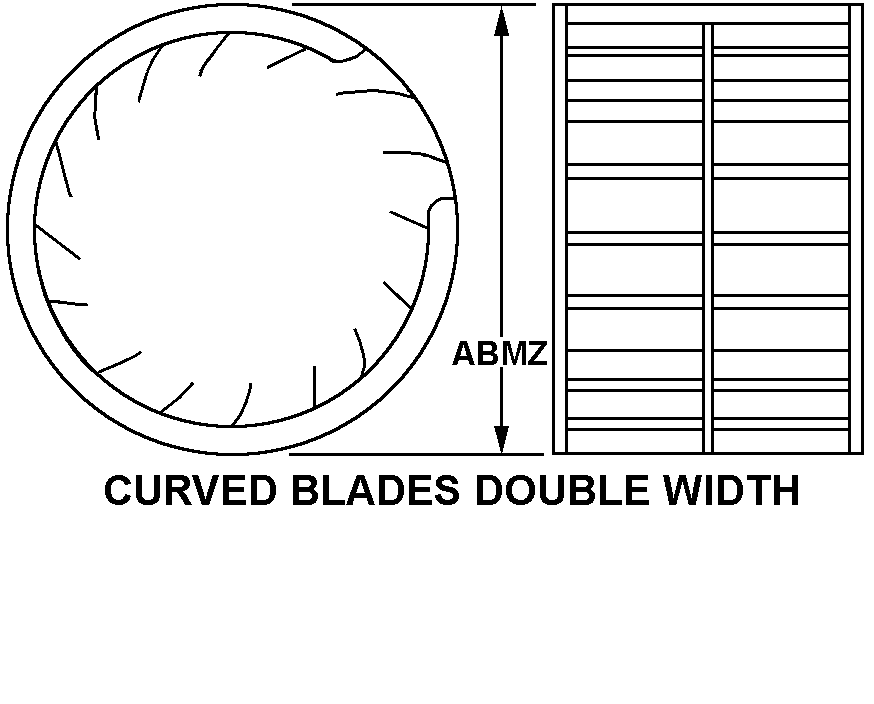

| STYLE DESIGNATOR | 14 CURVED BLADES DOUBLE WIDTH |
| WIDTH | 7.120 INCHES NOMINAL |
| DIAMETER | 6.375 INCHES NOMINAL |
| MATERIAL | ALUMINUM OVERALL |
| BLADE QUANTITY | 32 |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| MANUFACTURERS CODE | 7F088 |
| DESIGN CONTROL REFERENCE | 026-26863-000 |
Restrictions/Controls & Freight Information | NSN 4140-01-090-3866
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114990 | BLADES BLAST/BLOWER WHEEL ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-01-090-3866
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
