NSN 4140-00-542-4211 D15672A, D15-672A, D15672AALT2
Product Details | CENTRIFUGAL FAN
4140-00-542-4211 A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41400043Fans, Air Circulators, and Blower Equipment
Part Alternates: D15672A, D15-672A, D15672AALT2, D15-672AALT2, D15672ADD445S4810201ALT2, D15-672ADD445S4810-201ALT2, DD445S4810201ALT2, DD445S4810-201ALT2, 30J511, 930J511, 4140-00-542-4211, 00-542-4211, 4140005424211, 005424211
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-542-4211 | 04254 ( FAN, CENTRIFUGAL ) |

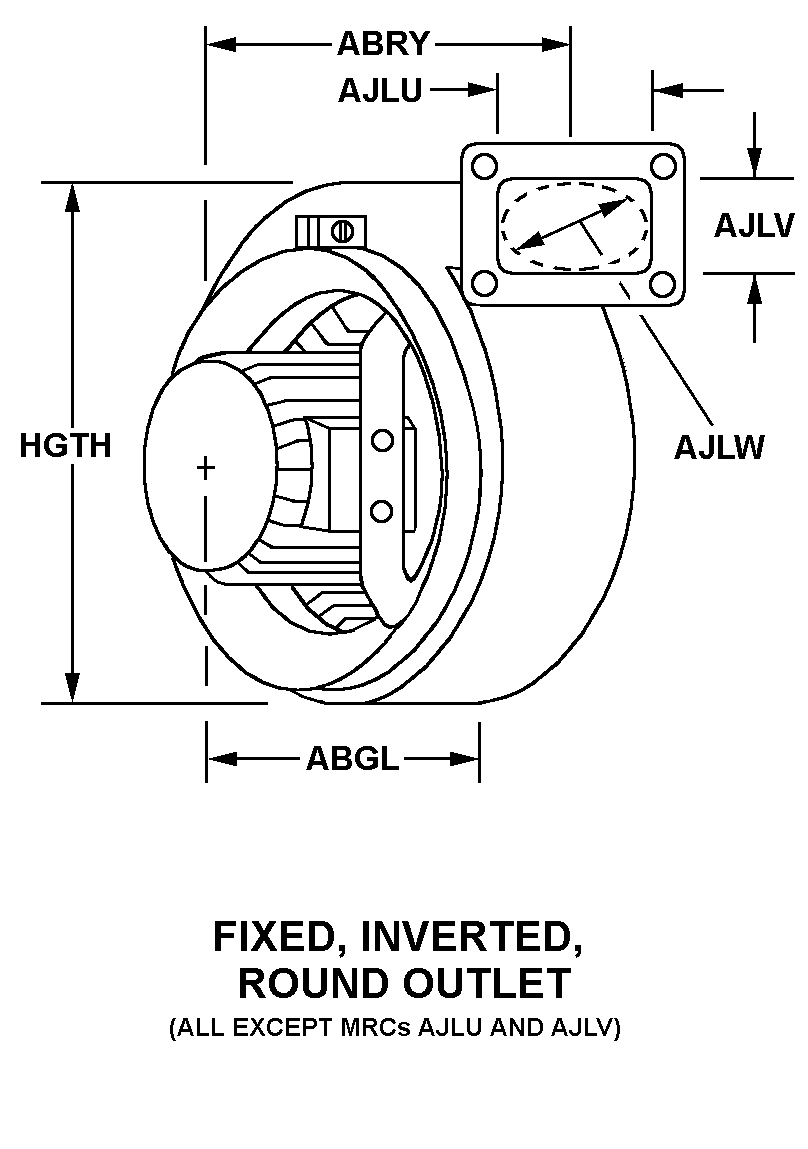

Drawings & Photos | NSN 4140-00-542-4211
Cross Reference | NSN 4140-00-542-4211
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30J511 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 930J511 | 80231 | WESTINGHOUSE ELECTRIC CORP STURTEVANT DIV |
| D15-672A | 80231 | WESTINGHOUSE ELECTRIC CORP STURTEVANT DIV |
| D15-672A | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| D15-672AALT2 | 80231 | WESTINGHOUSE ELECTRIC CORP STURTEVANT DIV |
| D15-672AALT2 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| D15-672ADD445S4810-201ALT2 | 80231 | WESTINGHOUSE ELECTRIC CORP STURTEVANT DIV |
| D15-672ADD445S4810-201ALT2 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| DD445S4810-201ALT2 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
