NSN 4140-00-493-9627 N12364, N1236-4, SW41236
Product Details | AXIAL FAN IMPELLER
4140-00-493-9627 An item with blades or vanes equally spaced radially around the periphery of a hub, flange, or rotor. It is the rotating part of an axial type fan, electric motor, generator, and the like which creates a flow of air or gas parallel to the axis of rotation.20229300045Engine Cooling System Components, Nonaircraft41400043Fans, Air Circulators, and Blower Equipment
Part Alternates: N12364, N1236-4, SW41236, SW4-1236, 1957, 4140-00-493-9627, 00-493-9627, 4140004939627, 004939627
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 02 OCT 1970 | 00-493-9627 | 10087 ( IMPELLER, FAN, AXIAL ) |
Drawings & Photos | NSN 4140-00-493-9627
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-00-493-9627
Technical Data | NSN 4140-00-493-9627
| Characteristic | Specifications |
|---|---|

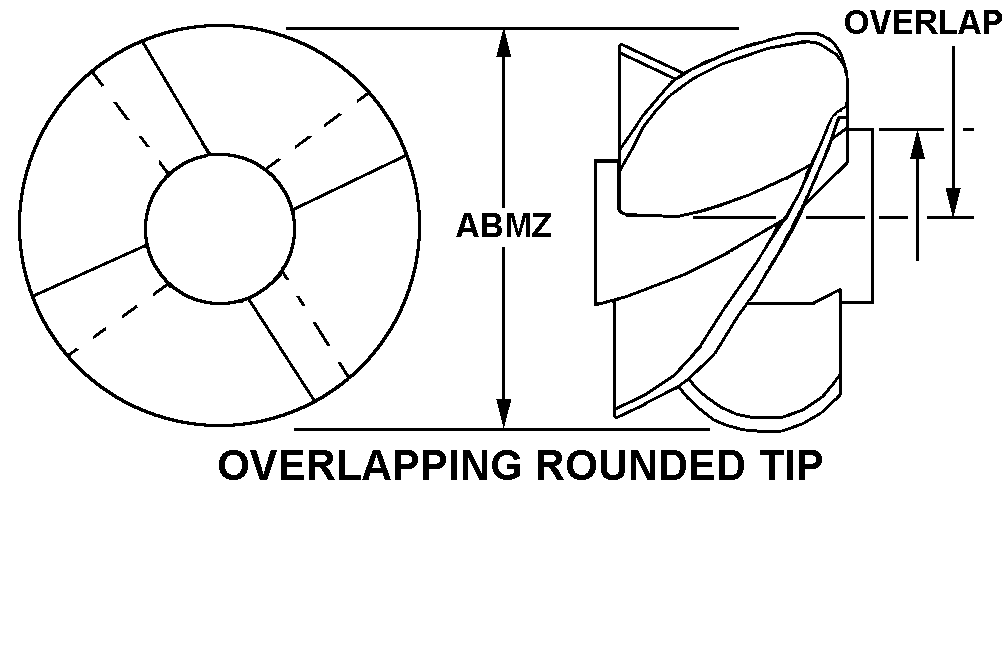

| STYLE DESIGNATOR | 4 OVERLAPPING ROUNDED TIP |
| DIAMETER | 12.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM OVERALL |
| BLADE QUANTITY | 4 |
| HUB LOCATION | CENTER |
| ATTACHMENT METHOD | SETSCREW |
| SPECIAL FEATURES | HUBLOCATED ON BACK OF FAN |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE BLADE MATERIAL,IMPELLER ROTATION DIRECTION,IMPELLER HUB STYLE,BORE DIA ANDSPECIAL FEATURES REQUIREMENTS |
| MANUFACTURERS CODE | 60399 |
| DESIGN CONTROL REFERENCE | N1236-4 |
Restrictions/Controls & Freight Information | NSN 4140-00-493-9627
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120975 | FAN/FAN BLADE ASSEMBLIES STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-00-493-9627
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
