NSN 4140-00-483-9641 A091199, A0-91199, 4920124002
Product Details | VANEAXIAL FAN
4140-00-483-9641 A nonpositive displacement mechanical device with guide vanes and having an axial fan impeller(s) inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes and pressures.
Part Alternates: A091199, A0-91199, 4920124002, 492-0124-002, 4140-00-483-9641, 00-483-9641, 4140004839641, 004839641
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 19 MAY 1969 | 00-483-9641 | 04245 ( FAN, VANEAXIAL ) |

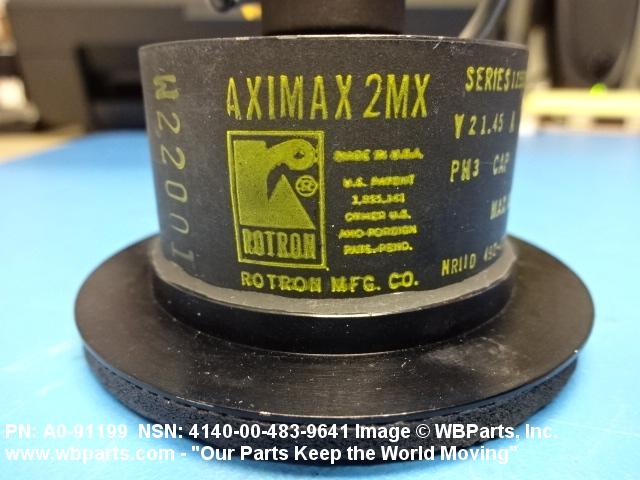

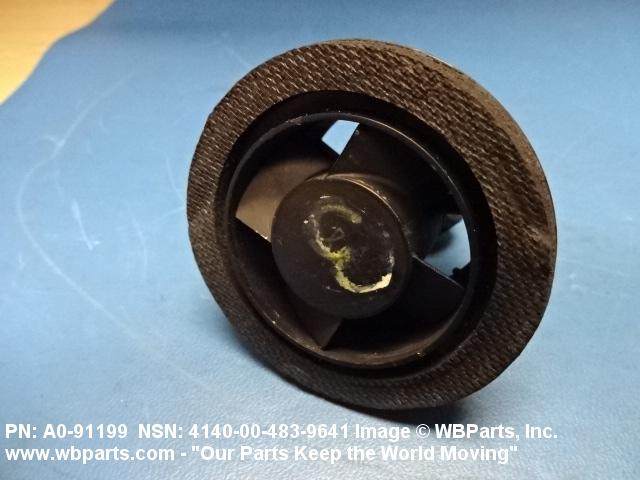

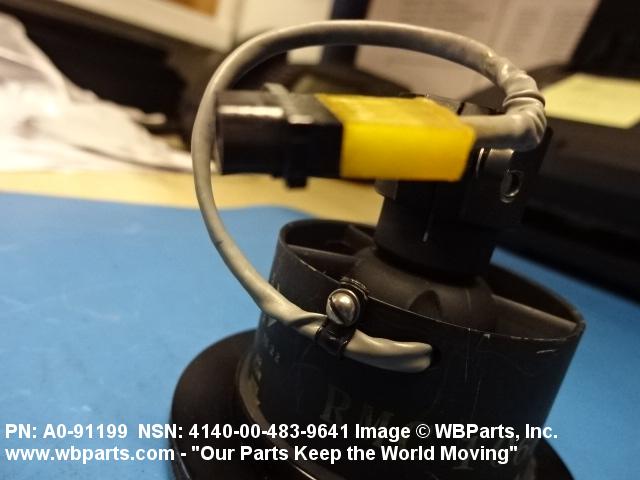

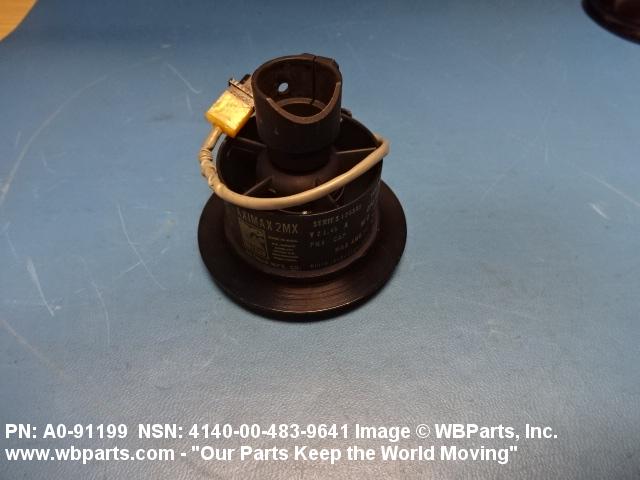

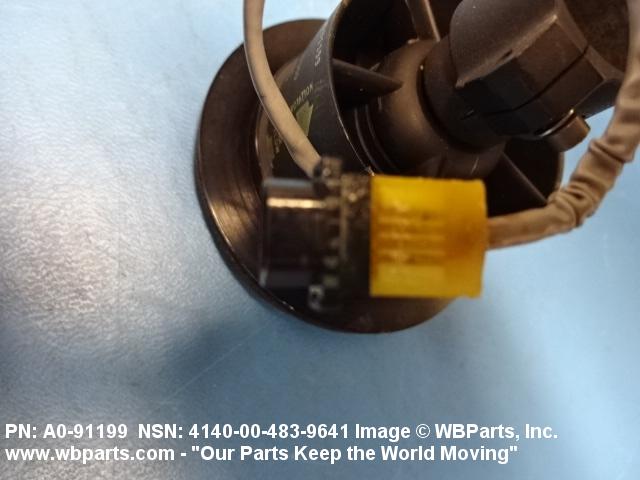

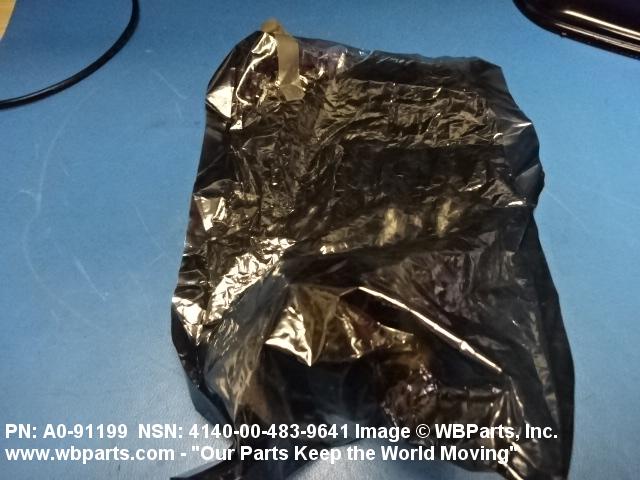

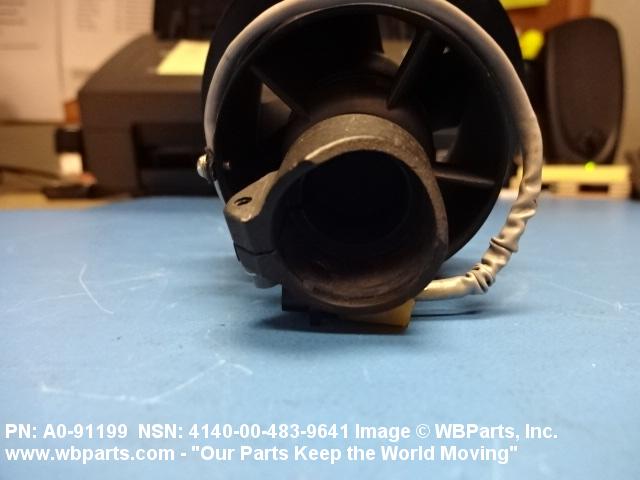

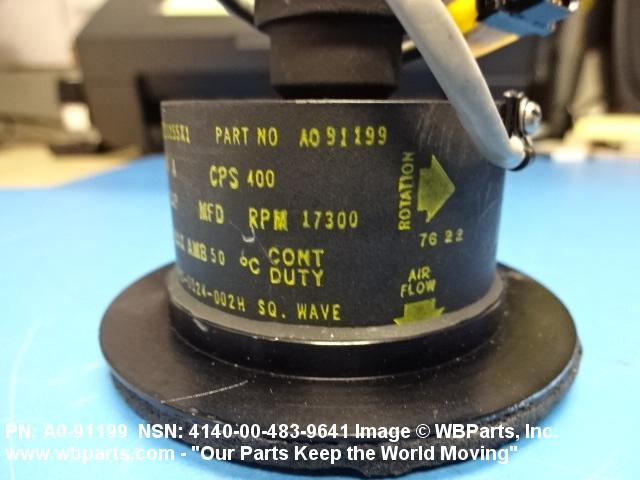

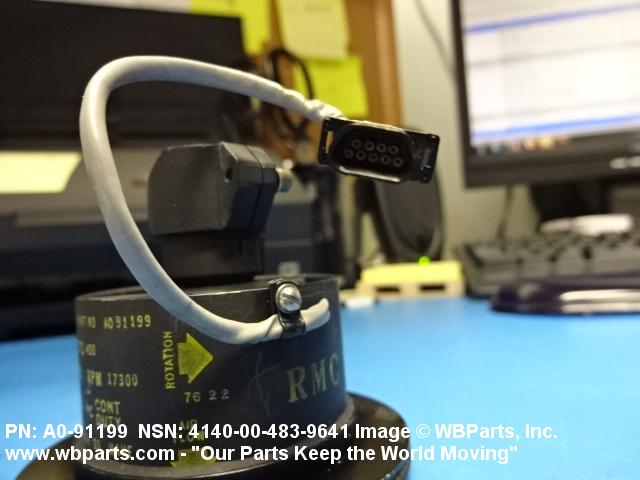

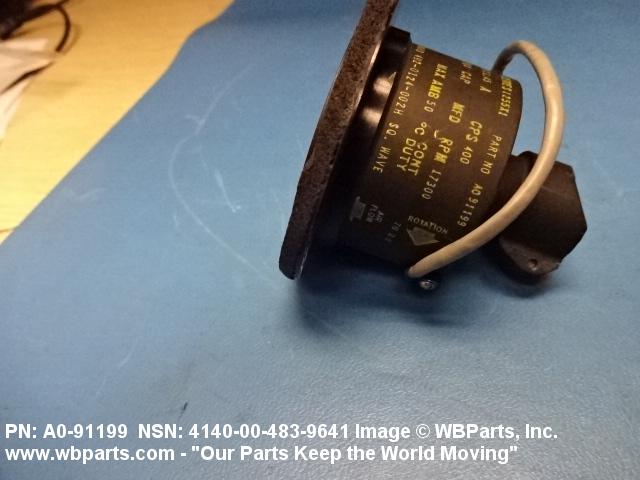

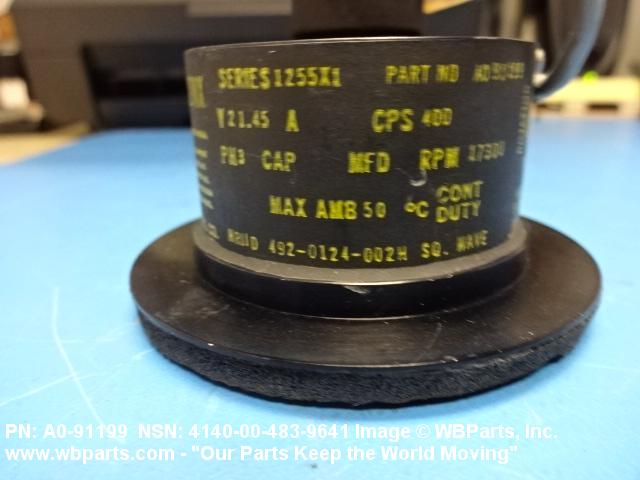

Drawings & Photos | NSN 4140-00-483-9641
Demand History | NSN 4140-00-483-9641
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4140-00-483-9641 | 2016-10-292 | 5 | DIBBS |
| 4140-00-483-9641 | 2016-10-287 | 1 | United States |
| 4140-00-483-9641 | 2016-10-287 | 1 | DIBBS |
| 4140-00-483-9641 | 2016-07-193 | 5 | DIBBS |
| 4140-00-483-9641 | 2016-06-181 | 5 | DIBBS |
| 4140-00-483-9641 | 2016-01-12 | 3 | DIBBS |
| 4140-00-483-9641 | 2015-10-279 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4140-00-483-9641
Related Products | NSN 4140-00-483-9641
Technical Data | NSN 4140-00-483-9641
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 30 FIXED |
| LENGTH | 1.460 INCHES NOMINAL |
| HOUSING INSIDE DIAMETER | 2.250 INCHES NOMINAL |
| QUANTITY | 1 |
| MATERIAL | ALUMINUM HOUSING |
| DRIVE TYPE | DIRECT |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | FULLY INCLOSED |
| ELECTRICAL CONNECTION TYPE | TERMINAL |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 21.5 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 400.0 |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.1 INCHES OF WATER |
| STAGE QUANTITY | 1 |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLANGE |
| FEATURES PROVIDED | NONSPARKING |
| MANUFACTURERS CODE | 94756 |
| MFR SOURCE CONTROLLING REFERENCE | 492-0124-002 |
Restrictions/Controls & Freight Information | NSN 4140-00-483-9641
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061920 | FANS ELEC NOI IN BARREL/BOX/CRATE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 659 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-00-483-9641
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AH | SU:LGM-30 MINUTEMAN |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
